Trunk / Liftgate: Testing and Inspection

ENGINE HOOD / DOOR: BACK DOOR: ON-VEHICLE INSPECTION

ENGINE HOOD / DOOR: BACK DOOR: ON-VEHICLE INSPECTION

1. INSPECT BACK DOOR PANEL SUB-ASSEMBLY
(a) Check that the clearance measurements of areas A to E are within the standard range.

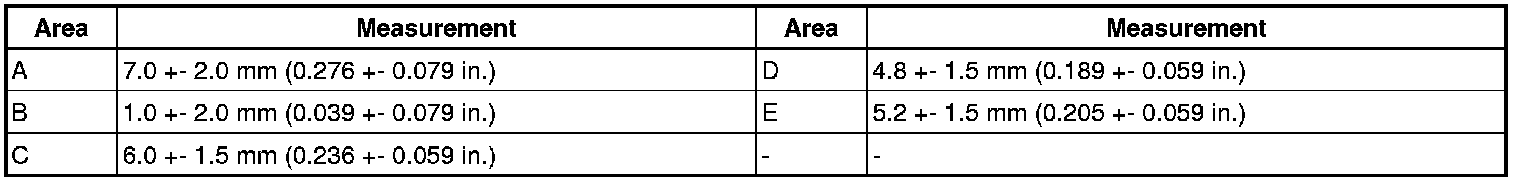

Standard measurement:
