Hood: Testing and Inspection









ENGINE HOOD / DOOR: HOOD: ON-VEHICLE INSPECTION

ENGINE HOOD / DOOR: HOOD: ON-VEHICLE INSPECTION

1. INSPECT HOOD SUB-ASSEMBLY

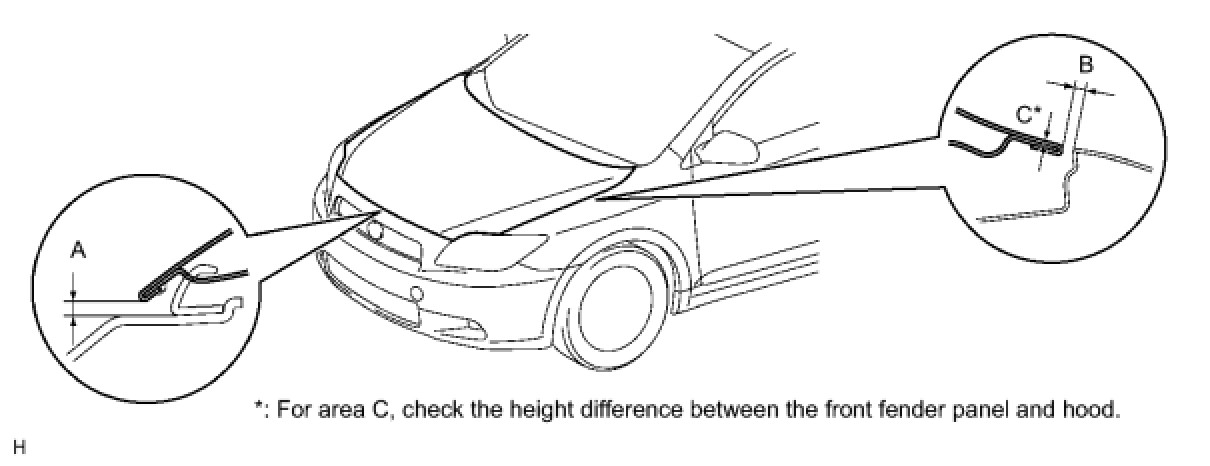

(a) Check that the clearance measurements of areas A to C are within the standard range.

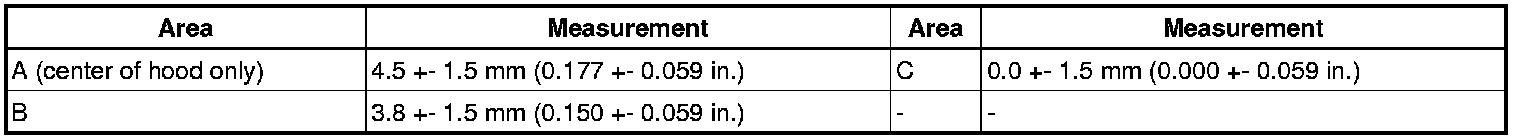

Standard measurement:
