2AZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P2118: Throttle Actuator Control Motor Current Range / Performance

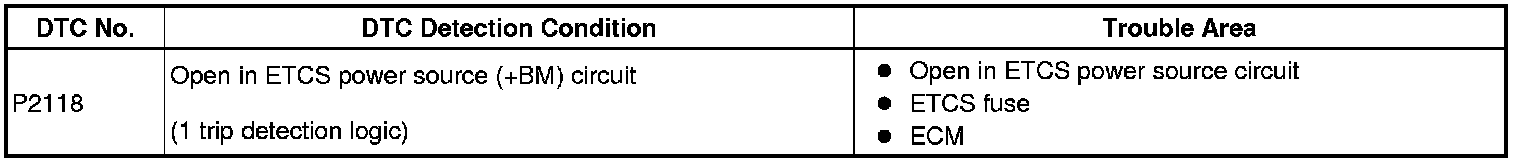

DTC P2118 - Throttle Actuator Control Motor Current Range / Performance

DESCRIPTION

The ETCS (Electronic Throttle Control System) has a dedicated power supply circuit. The voltage (+BM) is monitored and when it is low (less than 4 V), the ECM determines that there is a malfunction in the ETCS and cuts off the current to the throttle actuator.
When the voltage becomes unstable, the ETCS itself becomes unstable. For this reason, when the voltage is low, the current to the throttle actuator is cut. If repairs are made and the system returns to normal, turn the ignition switch OFF. The ECM then allows the current to flow to the throttle actuator so that it can be restarted.
HINT: The ETCS does not use a throttle cable.









MONITOR DESCRIPTION

The ECM monitors the battery supply voltage applied to the throttle actuator.
When the power supply voltage (+BM) drops below 4 V for 0.8 seconds or more, the ECM interprets this as an open in the power supply circuit (+BM). The ECM illuminates the MIL and sets the DTC.
If the malfunction is not repaired successfully, a DTC is set 5 seconds after the engine is next started.

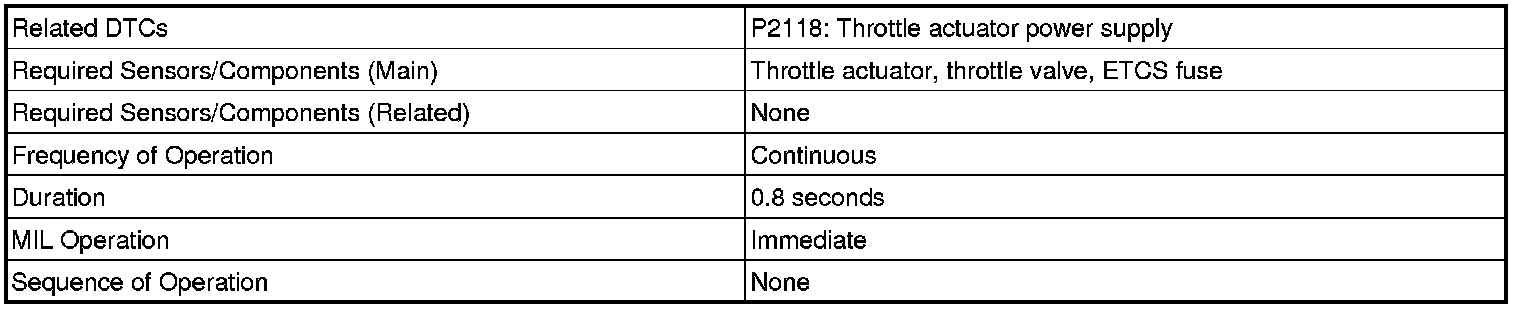

MONITOR STRATEGY

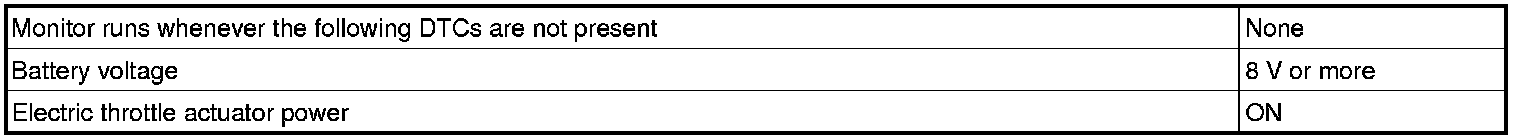

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE





FAIL-SAFE

When any of these DTCs, as well as other DTCs relating to ETCS (Electronic Throttle Control System) malfunctions, are set, the ECM enters fail-safe mode. During fail-safe mode, the ECM cuts the current to the throttle actuator off, and the throttle valve is returned to a 6.5° throttle angle by the return spring. The ECM then adjusts the engine output by controlling the fuel injection (intermittent fuel-cut) and ignition timing, in accordance with the accelerator pedal opening angle, to allow the vehicle to continue at a minimal speed. If the accelerator pedal is depressed firmly and gently, the vehicle can be driven slowly.
Fail-safe mode continues until a pass condition is detected, and the ignition switch is then turned off.

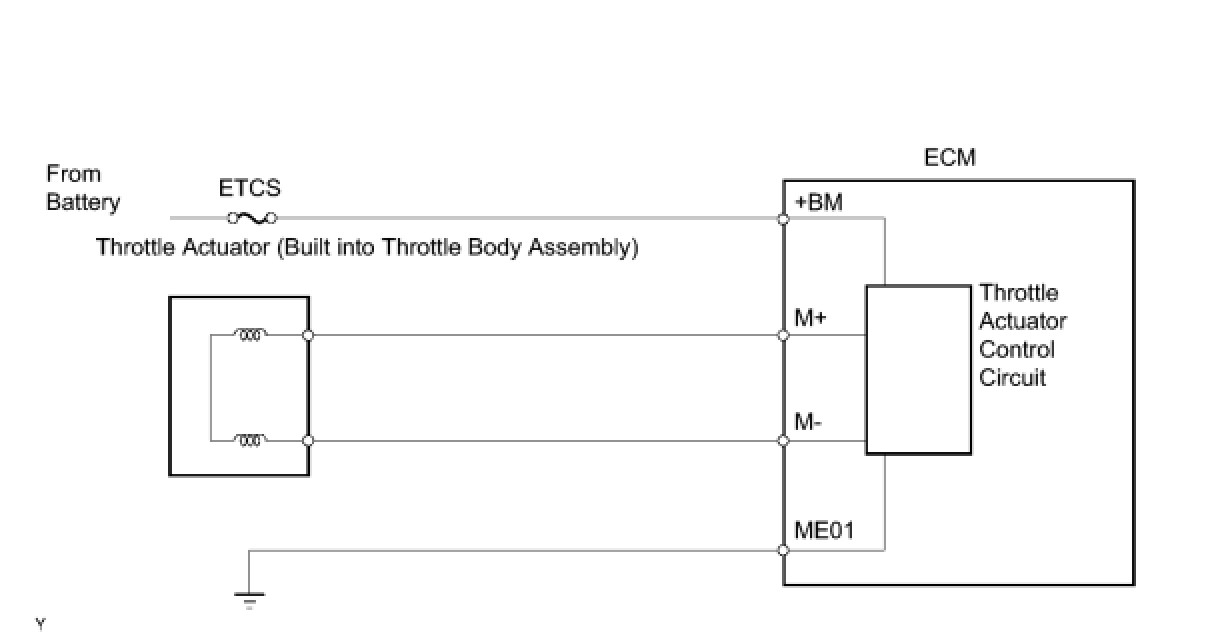

WIRING DIAGRAM





INSPECTION PROCEDURE
HINT: Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air-fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.

PROCEDURE

1. CHECK FUSE (ETCS)

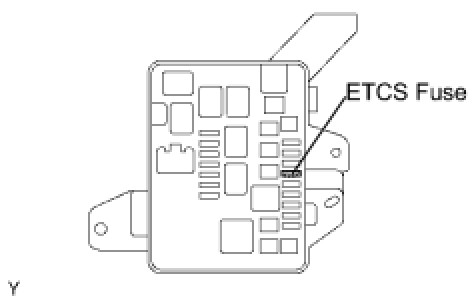

(a) Remove the ETCS fuse from the engine room relay block.
(b) Measure the resistance of the fuse.
Standard resistance:
Below 1 Ohms
(c) Reinstall the ETCS fuse.
NG -- CHECK FOR SHORT IN ALL HARNESSES AND COMPONENTS CONNECTED TO FUSE
OK -- Continue to next step.

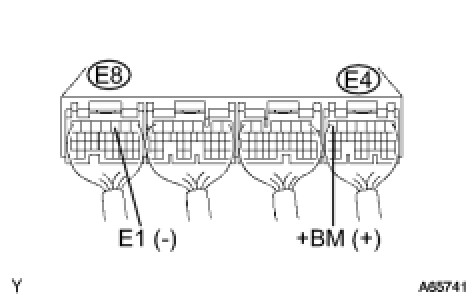

2. INSPECT ECM (+BM VOLTAGE)




(a) Measure the voltage according to the value(s) in the table below.
Standard voltage:





NG -- CHECK WIRE HARNESS (ECM - ETCS FUSE, ETCS FUSE - BATTERY)
OK -- CHECK FOR INTERMITTENT PROBLEMS

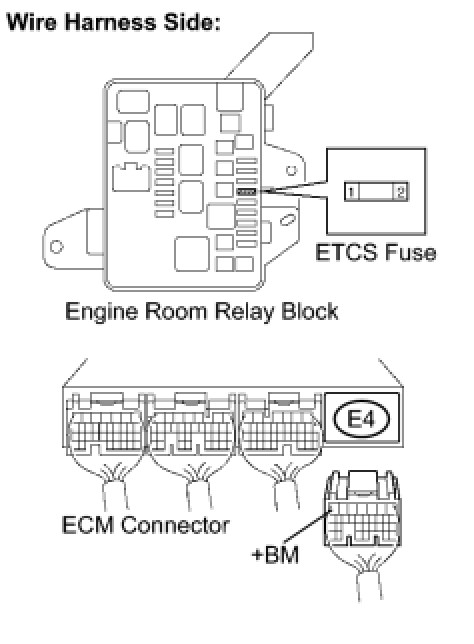

3. CHECK WIRE HARNESS (ECM - ETCS FUSE, ETCS FUSE - BATTERY)




(a) Check the wire harness between the ETCS fuse and ECM.
(1) Remove the ETCS fuse from the engine room relay block.
(2) Disconnect the E4 ECM connector.
(3) Measure the resistance according to the value(s) in the table below.

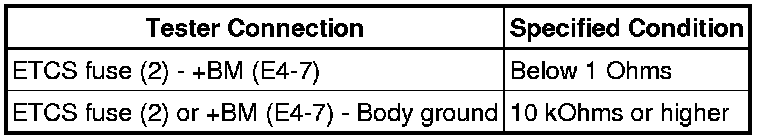

Standard resistance:





(4) Reinstall ETCS fuse.
(5) Reconnect the ECM connector.
(b) Check the wire harness between the ETCS fuse and positive (+) battery cable.
(1) Remove the ETCS fuse from the engine room relay block.
(2) Disconnect the cable from the positive (+) battery cable.
(3) Measure the resistance according to the value(s) in the table below.

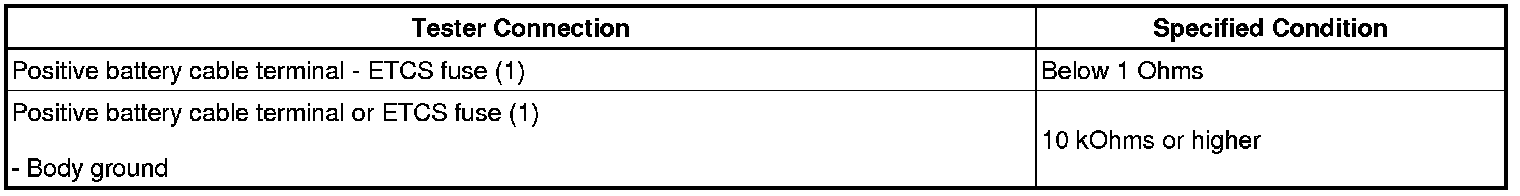

Standard resistance:





(4) Reinstall ETCS fuse.
(5) Reconnect the cable.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE ECM
