P0793









U241E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: P0793: Intermediate Shaft Speed Sensor "A"

DTC P0793 - Intermediate Shaft Speed Sensor "A"

DESCRIPTION

This sensor detects the rotation speed of the counter gear. By comparing the counter gear speed signal (NC) with the direct clutch speed sensor signal (NT), the ECM detects the shift timing of the gears and appropriately controls the engine torque and hydraulic pressure according to various conditions. Thus smooth gear shifting is performed.

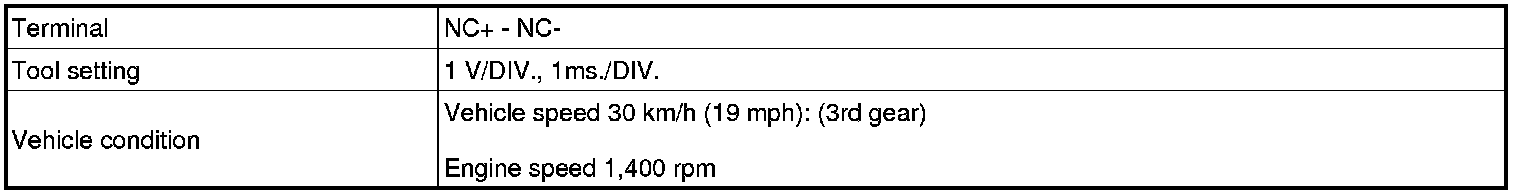

Reference (Using an oscilloscope):

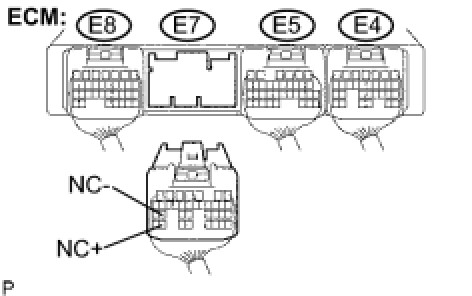

Check the waveform between terminals NC+ and NC- of the ECM connector.





Refer to the illustration:

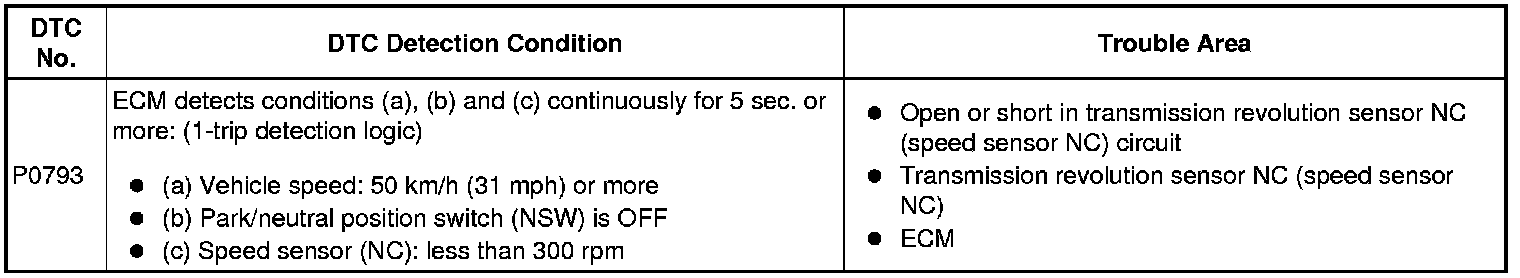

MONITOR DESCRIPTION

The NC terminal of the ECM detects a revolution signal from the speed sensor (NC) (counter gear rpm). The ECM calculates a gearshift comparing the speed sensor (NT) with the speed sensor (NC).
While the vehicle is operating in 2nd, 3rd or 4th (O/D) gear in the shift position of D, if the counter gear revolution is less than 300 rpm *1although the output shaft revolution is more than 1,000 rpm *2, the ECM detects the trouble, illuminates the MIL and stores the DTC.
*1: Pulse is not output or is irregularly output.
*2: The vehicle speed is 50 km/h (31 mph) or more.

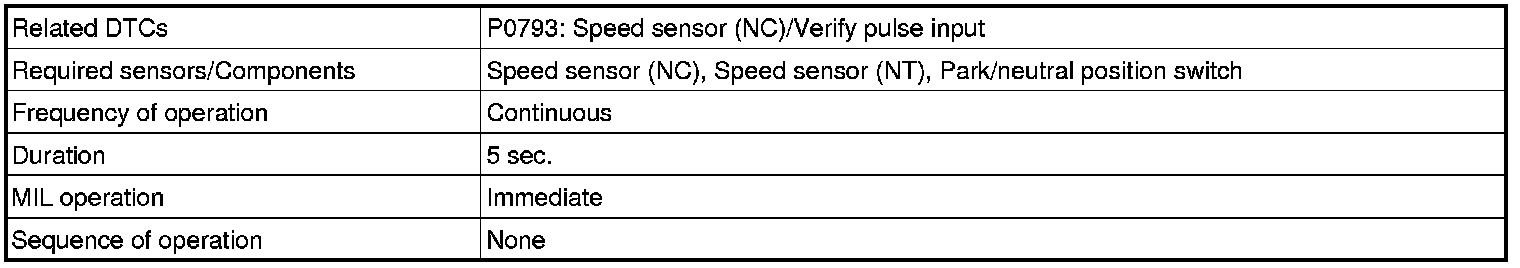

MONITOR STRATEGY

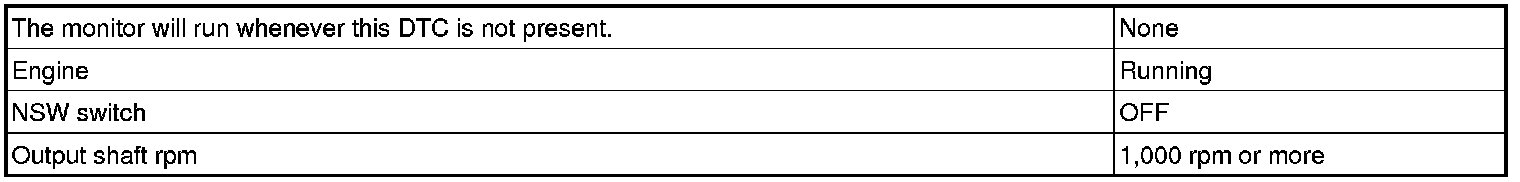

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS

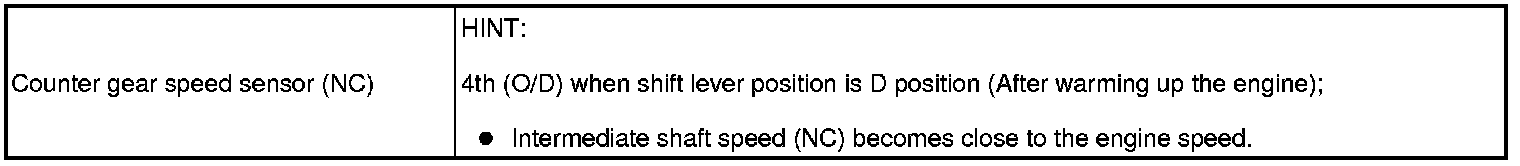

COMPONENT OPERATING RANGE

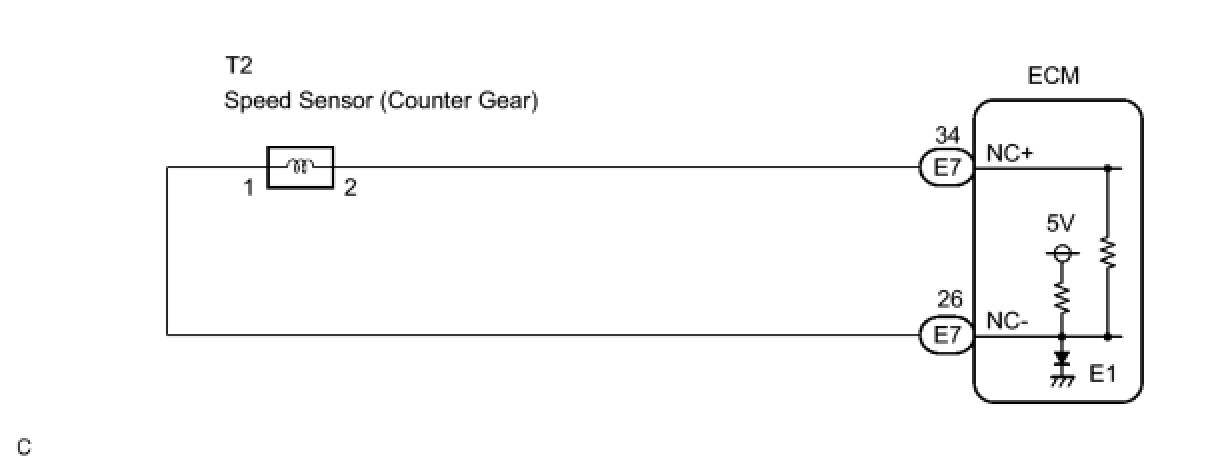

WIRING DIAGRAM





INSPECTION PROCEDURE

1. DATA LIST
HINT: Using the Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

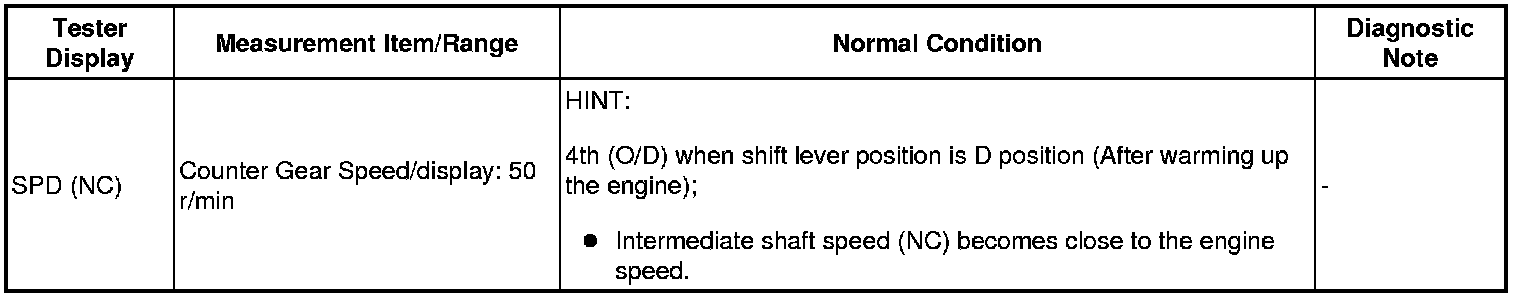

NOTICE: In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

2. READ DATA LIST
(a) Warm up the engine.
(b) Turn the ignition switch off.
(c) Connect the Techstream to the DLC3.
(d) Turn the ignition switch to ON.
(e) Turn on the Techstream.
(f) Select the item "Powertrain / Engine and ECT / Data List".
(g) According to the display on the tester, read the "Data List".





HINT:
- SPD (NC) is always 0 while driving:
Open or short in the sensor or circuit.
- SPD (NC) is always more than 0 and less than 300 rpm while driving the vehicle at 50 km/h (31 mph) or more:
Sensor trouble, improper installation, or intermittent connection trouble of the circuit.

PROCEDURE

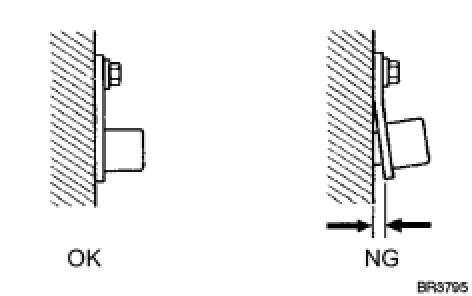

1. INSPECT SPEED SENSOR INSTALLATION




(a) Check the speed sensor installation.
OK:
The installation bolt is tightened properly and there is no clearance between the sensor and transaxle case.
NG -- REPLACE SPEED SENSOR (NC)
OK -- Continue to next step.
2. INSPECT SPEED SENSOR (NC)




(a) Disconnect the speed sensor connector from the transaxle.

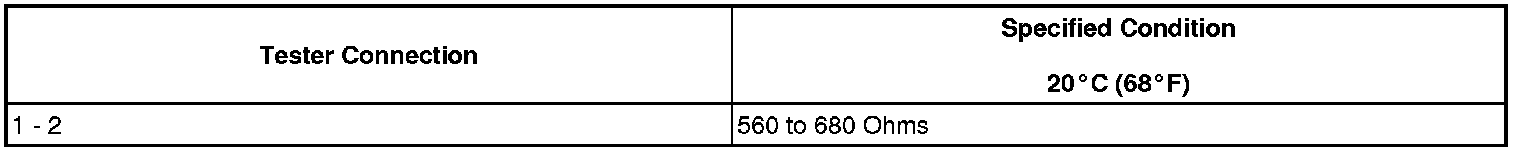

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:





NG -- REPLACE SPEED SENSOR (NC)
OK -- Continue to next step.
3. CHECK HARNESS AND CONNECTOR (SPEED SENSOR - ECM)




(a) Connect the speed sensor connector.
(b) Disconnect the ECM connector.

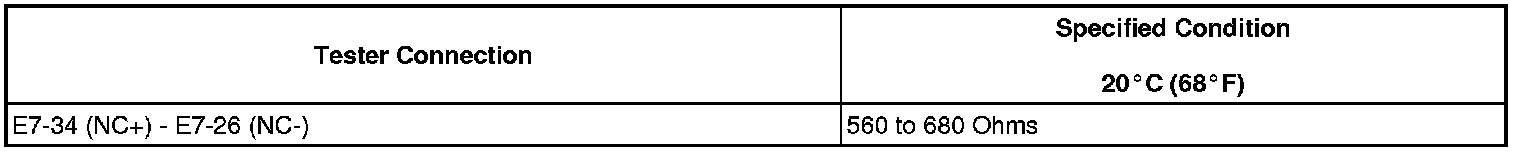

(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:

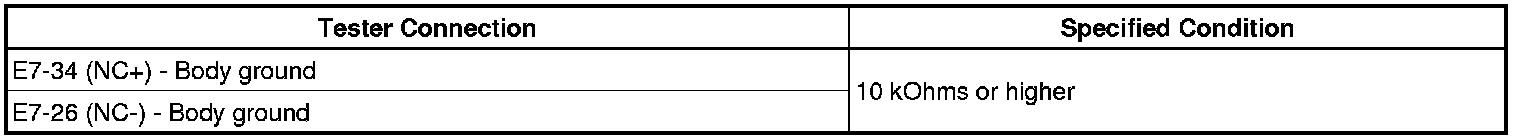

(d) Measure the resistance according to the value(s) in the table below.
Standard resistance (Check for short):





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE ECM
