U241E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: P0746: Pressure Control Solenoid "A" Performance (Shift Solenoid Valve SL1)

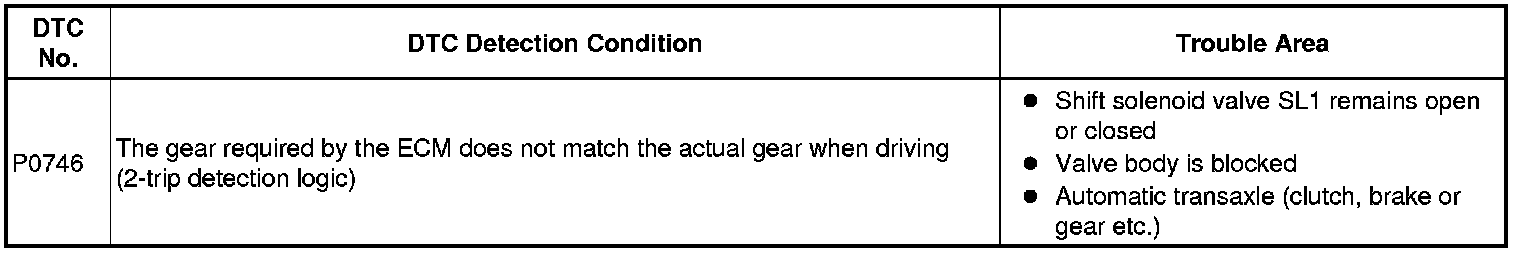

DTC P0746 - Pressure Control Solenoid "A" Performance (Shift Solenoid Valve SL1)
SYSTEM DESCRIPTION
The ECM uses signals from the vehicle speed sensor to detect the actual gear position (1st, 2nd, 3rd or 4th gear).
Then the ECM compares the actual gear with the shift schedule in the ECM memory to detect mechanical problems of the shift solenoid valves, valve body or automatic transaxle (clutch, brake or gear etc.).
MONITOR DESCRIPTION
The ECM commands gear shifts by turning the shift solenoid valves "ON/OFF". According to the input shaft revolution, intermediate (counter) shaft revolution and output shaft revolution, the ECM detects the actual gear position (1st, 2nd, 3rd or 4th gear position). When the gear position commanded by the ECM and the actual gear position are not the same, the ECM illuminates the MIL.
HINT:
Example:
When either condition (a) or (b) is met, the ECM detects a malfunction.
(a) The ECM commands the 1st gear, but the actual gear is 2nd.
(b) The ECM commands the 2nd gear, but the actual gear is 1st.

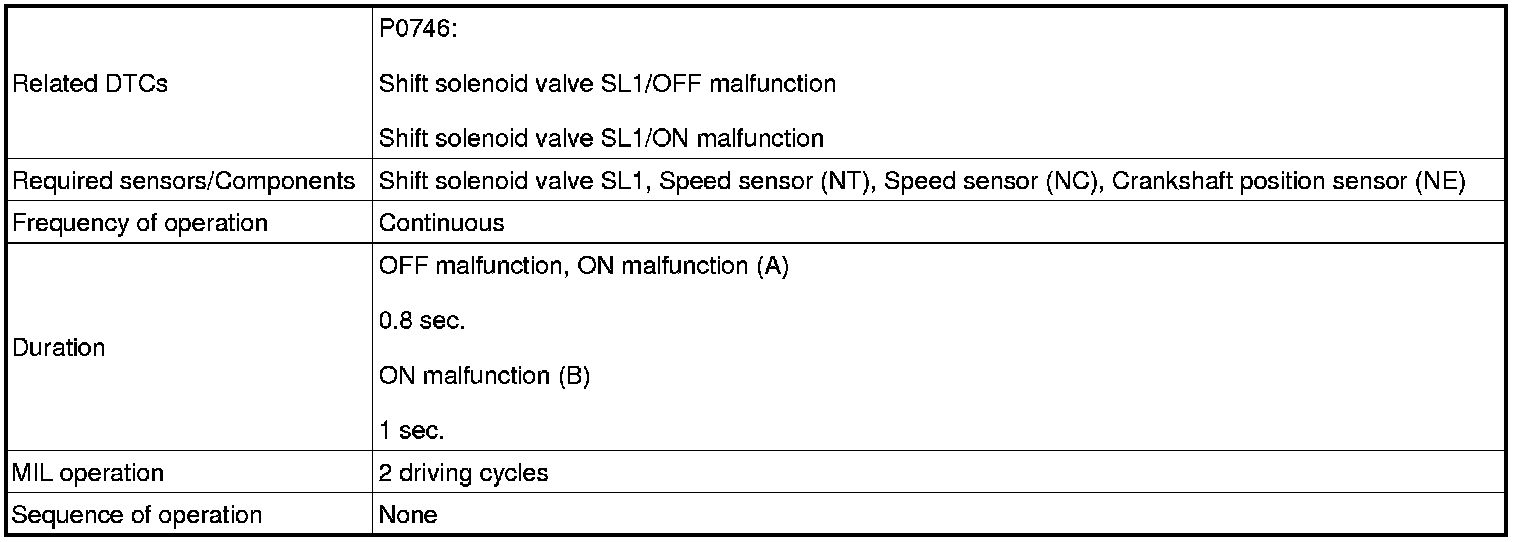

MONITOR STRATEGY
TYPICAL ENABLING CONDITIONS

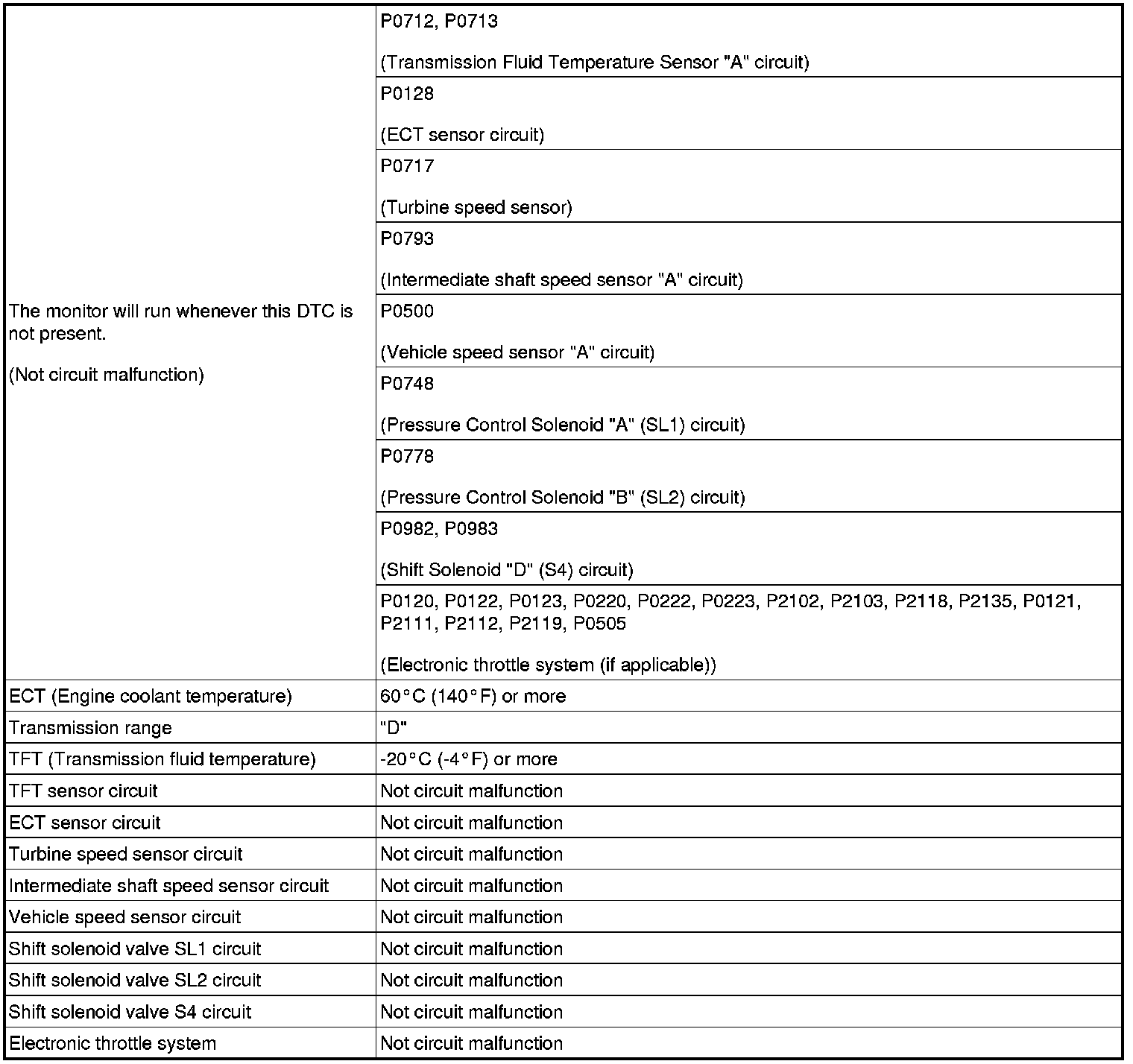

ALL:
OFF malfunction:

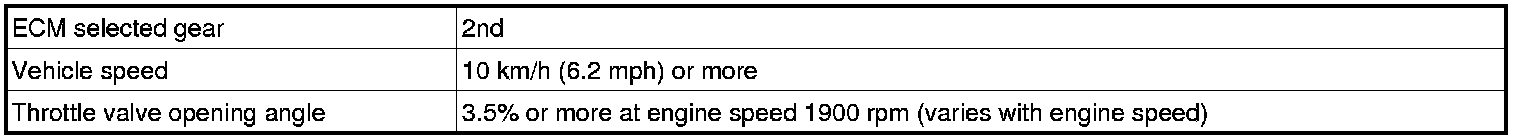

ON malfunction (A):

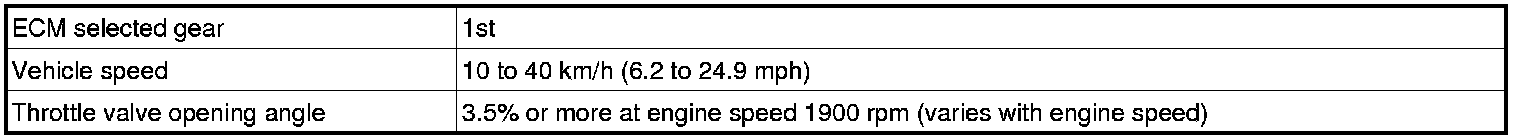

ON malfunction (B):
TYPICAL MALFUNCTION THRESHOLDS
Either of the following conditions is met:
OFF malfunction, or ON malfunction (A) and (B)
2 detections are necessary per driving cycle:
1st detection; temporary flag ON
2nd detection; pending fault code ON
OFF malfunction:
ON malfunction (A):
ON malfunction (B):
INSPECTION PROCEDURE
HINT: Using the Techstream to perform Active Test allows relays, VSVs, actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Test early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Test.
1. PERFORM ACTIVE TEST
(a) Warm up the engine.
(b) Turn the ignition switch off.
(c) Connect the Techstream to the DLC3.
(d) Turn the ignition switch to ON.
(e) Turn on the Techstream.

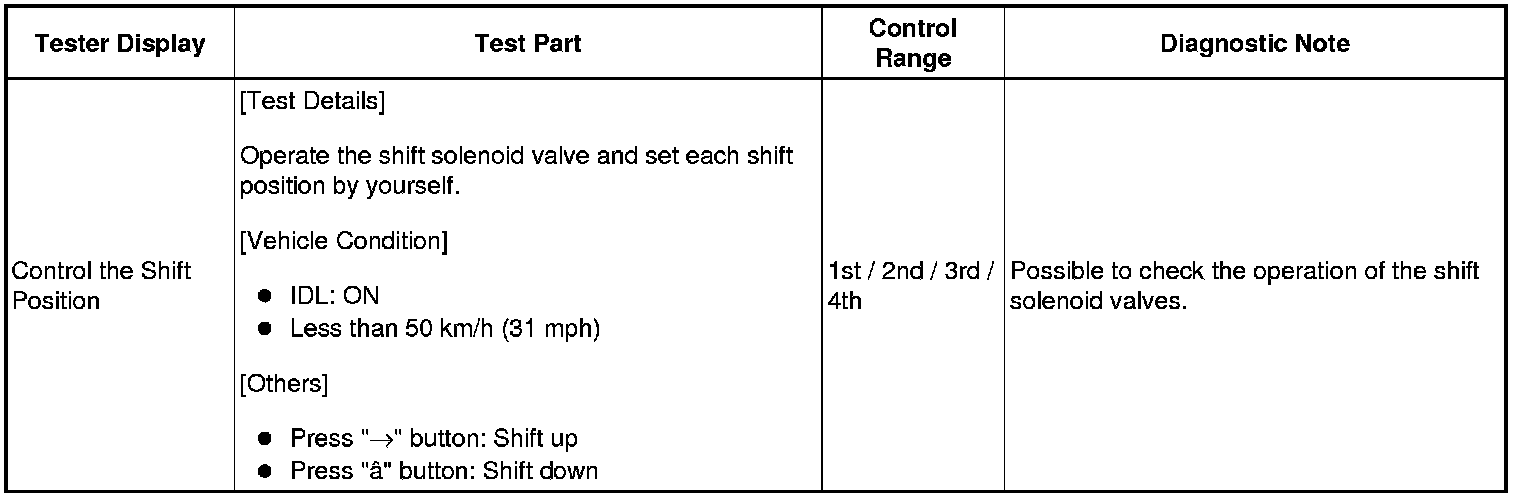

(f) Select the item "Powertrain / Engine and ECT / Active Test / Shift Status".
(g) According to the display on the tester, perform the "Active Test".
HINT: While driving, the shift position can be forcibly changed with the Techstream.
Comparing the shift position commanded by the Active Test with the actual shift position enables you to confirm the problem Fail-Safe Chart.
HINT:
- This test can be conducted when the vehicle speed is 50 km/h (31 mph) or less.
- The shift position commanded by the ECM is shown in the Data List / Shift Status display on the Techstream.
PROCEDURE
1. CHECK OTHER DTCS OUTPUT (IN ADDITION TO DTC P0746)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to ON and turn the Techstream main switch on.
(c) Select the item "Powertrain / Engine and ECT / Trouble Codes".
(d) Read the DTCs using the Techstream.

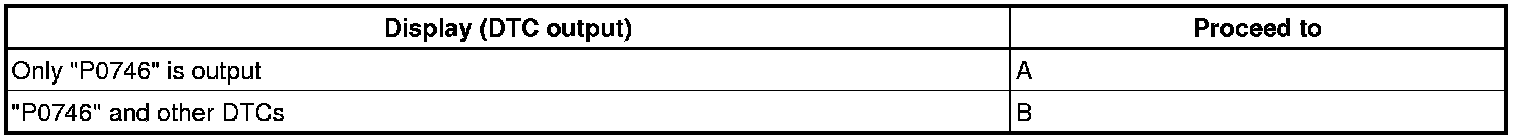

Result:
HINT: If any other codes besides "P0746" are output, perform the troubleshooting for those DTCs first.
B -- GO TO DTC CHART
A -- Continue to next step.
2. INSPECT SHIFT SOLENOID VALVE SL1
(a) Remove the shift solenoid valve SL1.
(b) Measure the resistance according to the value(s) in the table below.

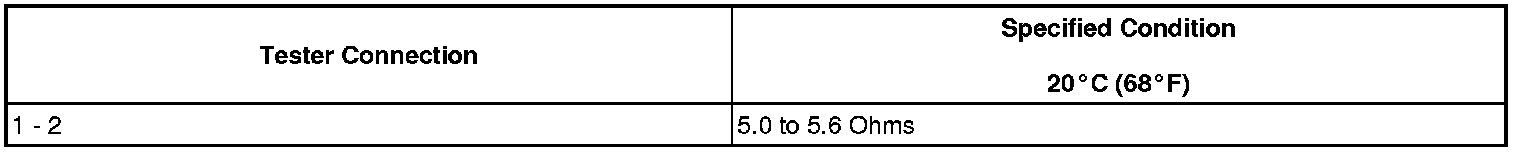

Standard resistance:

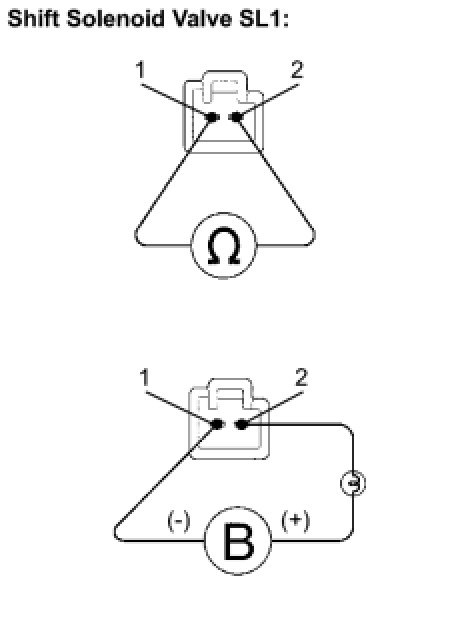

(c) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.
OK:
The solenoid makes an operating sound.
NG -- REPLACE SHIFT SOLENOID VALVE SL1
OK -- Continue to next step.
3. INSPECT TRANSMISSION VALVE BODY ASSEMBLY
OK:
There are no foreign objects on each valve.
NG -- REPAIR OR REPLACE TRANSMISSION VALVE BODY ASSEMBLY
OK -- Continue to next step.
4. INSPECT TORQUE CONVERTER CLUTCH ASSEMBLY
OK:
The torque converter clutch operates normally.
NG -- REPLACE TORQUE CONVERTER CLUTCH ASSEMBLY
OK -- REPAIR OR REPLACE AUTOMATIC TRANSAXLE ASSEMBLY
