2AZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0505: Idle Control System Malfunction

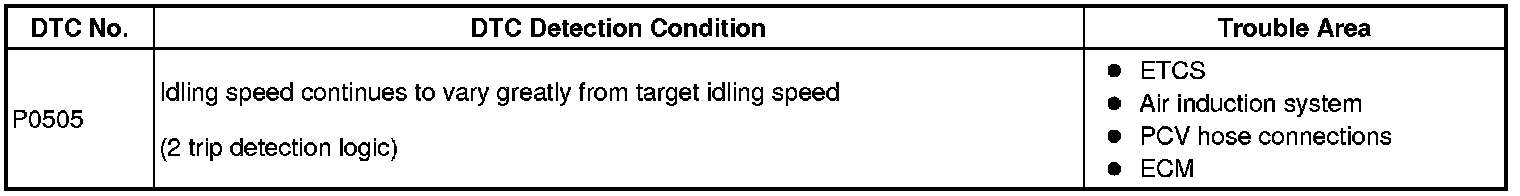

DTC P0505 - Idle Control System Malfunction

DESCRIPTION

The idling speed is controlled by the ETCS (Electronic Throttle Control System). The one valve type throttle body ETCS is comprised of: 1) the throttle actuator, which operates the throttle valve; 2) the Throttle Position (TP) sensor, which detects the opening angle of the throttle valve; 3) the Accelerator Pedal Position (APP) sensor, which detects the accelerator pedal position; and 4) the ECM, which controls the ETCS. Based on the target idling speed, the ECM controls the throttle actuator to provide the proper throttle valve opening angle.





MONITOR DESCRIPTION

The ECM monitors the idling speed and idling air flow volume to conduct Idle Speed Control (ISC). The ECM determines that the ISC system is malfunctioning if the following conditions are met:

- The learned idling air flow volume remains at the maximum or minimum volumes 5 seconds during a drive cycle.
- While driving at 6 mph (10 km/h) or more, the actual engine idling speed varies from the target idling speed by between 100 rpm and 150 rpm 5 times or more during a drive cycle.

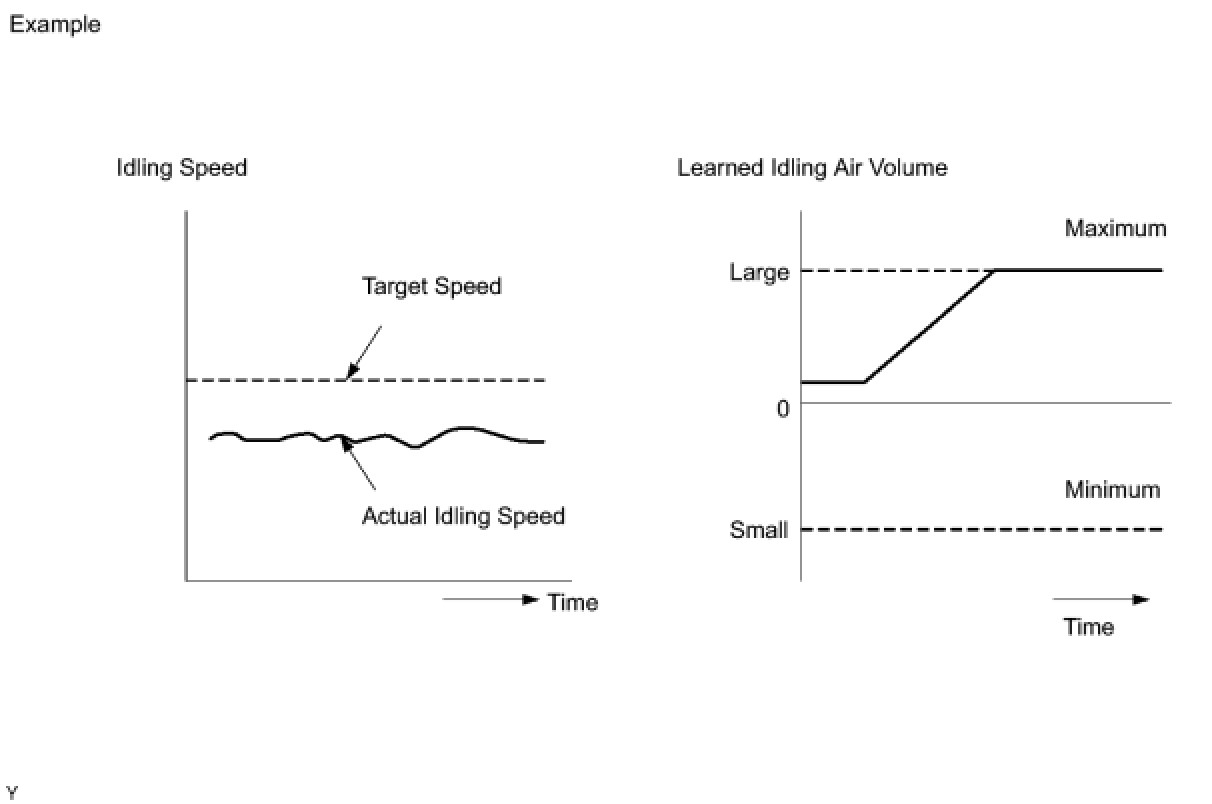

Example:
If the actual idling speed varies from the target idling speed by more than 150 rpm* 5 times during a drive cycle, the ECM illuminates the MIL and sets the DTC.
*: Threshold idling speed varies with engine load.

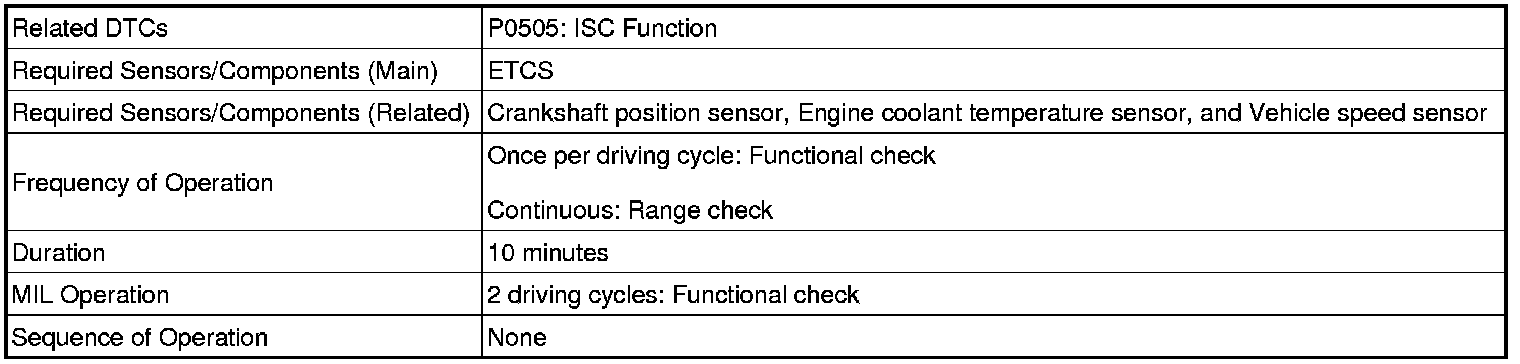

MONITOR STRATEGY

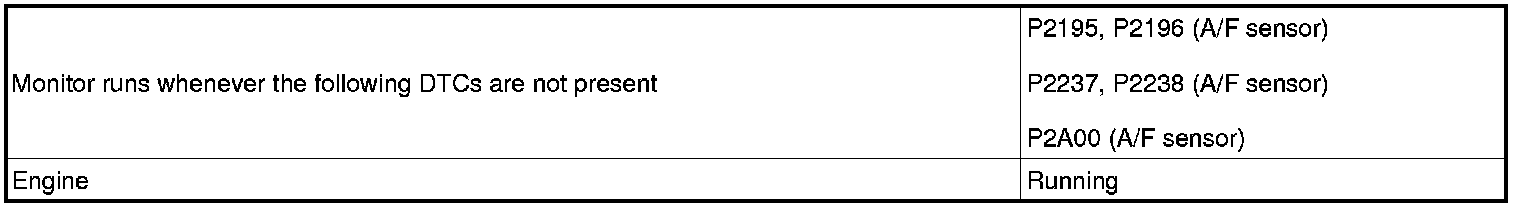

TYPICAL ENABLING CONDITIONS

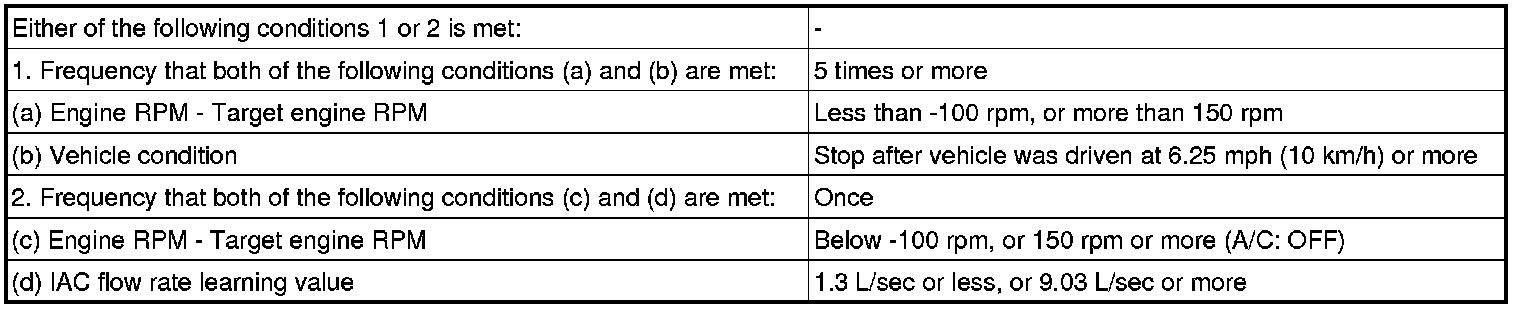

TYPICAL MALFUNCTION THRESHOLDS





INSPECTION PROCEDURE
HINT:
- The following conditions may also cause DTC P0505 to be set:
The throttle valve is not fully closed. (e.g. The accelerator pedal is slightly depressed by something such as a floor carpet overlapping the accelerator pedal.)
- Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air-fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.

PROCEDURE

1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0505)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to the ON position.
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
(e) Read the DTCs.

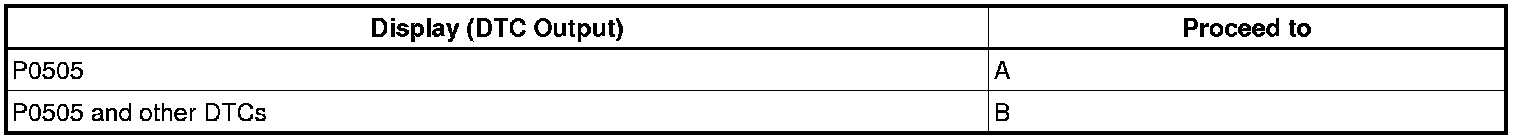

Result :





HINT: If any DTCs other than P0505 are output, troubleshoot those DTCs first.

B -- GO TO DTC CHART
A -- Continue to next step.
2. CHECK PCV HOSE CONNECTIONS
OK:
PCV hose is connected correctly and is not damaged.
NG -- REPAIR OR REPLACE PCV HOSE
OK -- Continue to next step.
3. CHECK AIR INDUCTION SYSTEM
(a) Check the air induction system for vacuum leakage.
OK:
No leakage from air induction system.
NG -- REPAIR OR REPLACE AIR INDUCTION SYSTEM
OK -- Continue to next step.
4. CHECK THROTTLE VALVE
(a) Check the throttle valve condition.
NG -- REPLACE THROTTLE BODY
OK -- REPLACE ECM
