P0128

2AZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0128: Coolant Thermostat (Coolant Temperature Below Thermostat Regulating Temperature)

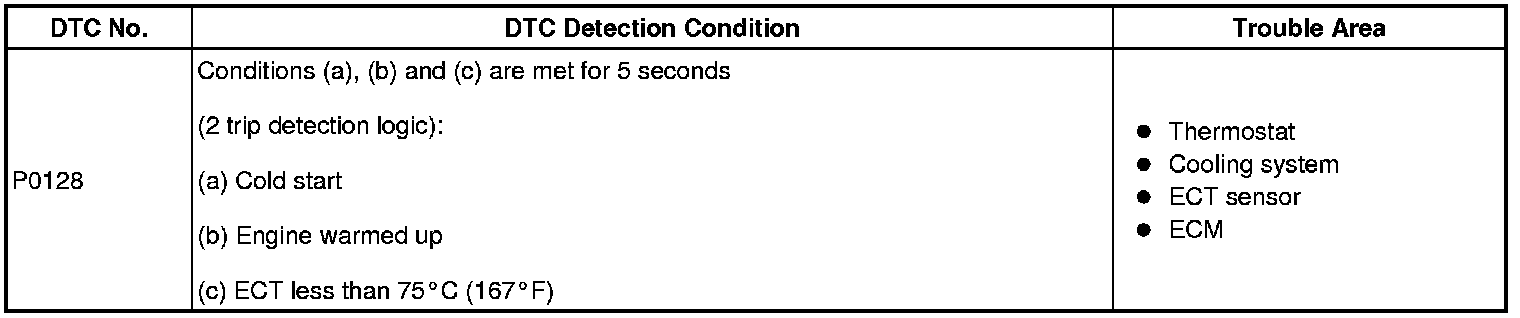

DTC P0128 - Coolant Thermostat (Coolant Temperature Below Thermostat Regulating Temperature)

DESCRIPTION
HINT: This DTC relates to the thermostat.

This DTC is set when the Engine Coolant Temperature (ECT) does not reach 75°C (167°F) despite sufficient engine warm-up time.





MONITOR DESCRIPTION

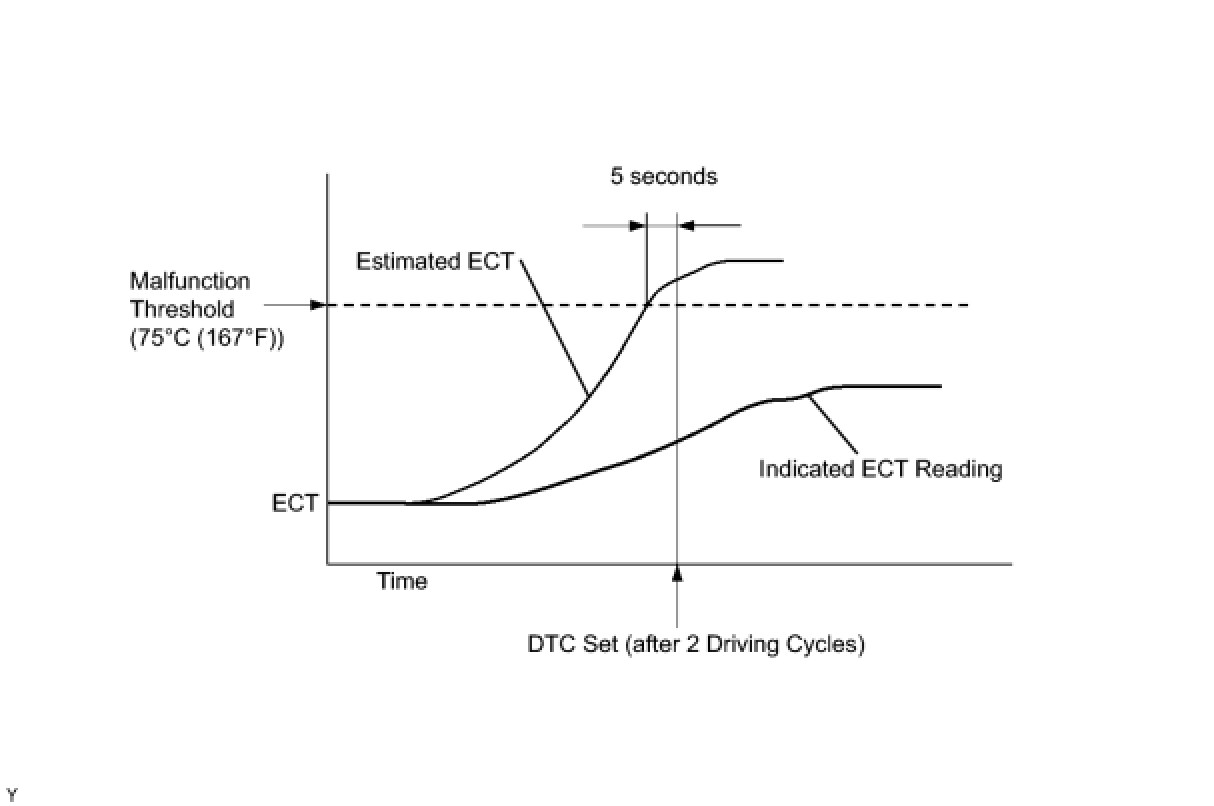

The ECM estimates the coolant temperature based on starting temperature, engine loads, and engine speeds. The ECM then compares the estimated temperature with the actual ECT. When the estimated coolant temperature reaches 75°C (167°F), the ECM checks the actual ECT. If the actual ECT is less than 75°C (167°F), the ECM interprets this as a malfunction in the thermostat or the engine cooling system and sets the DTC.

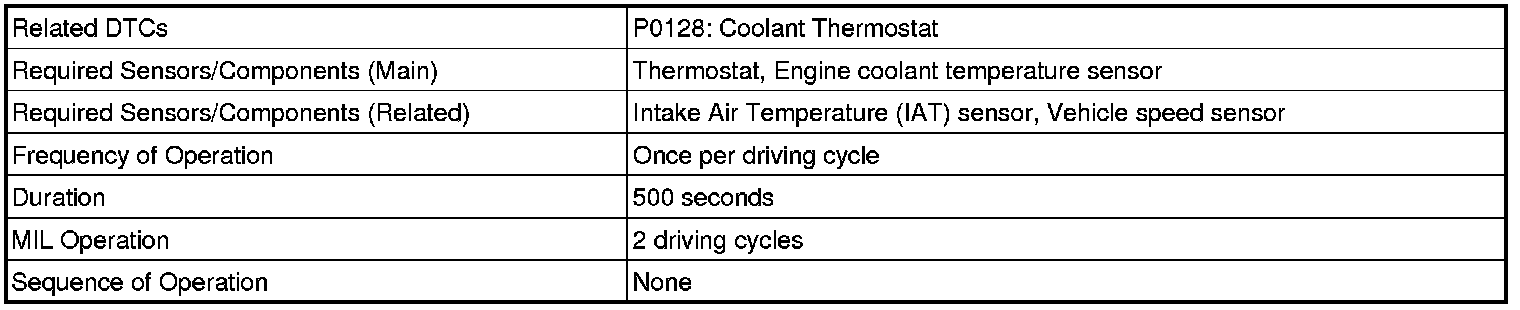

MONITOR STRATEGY

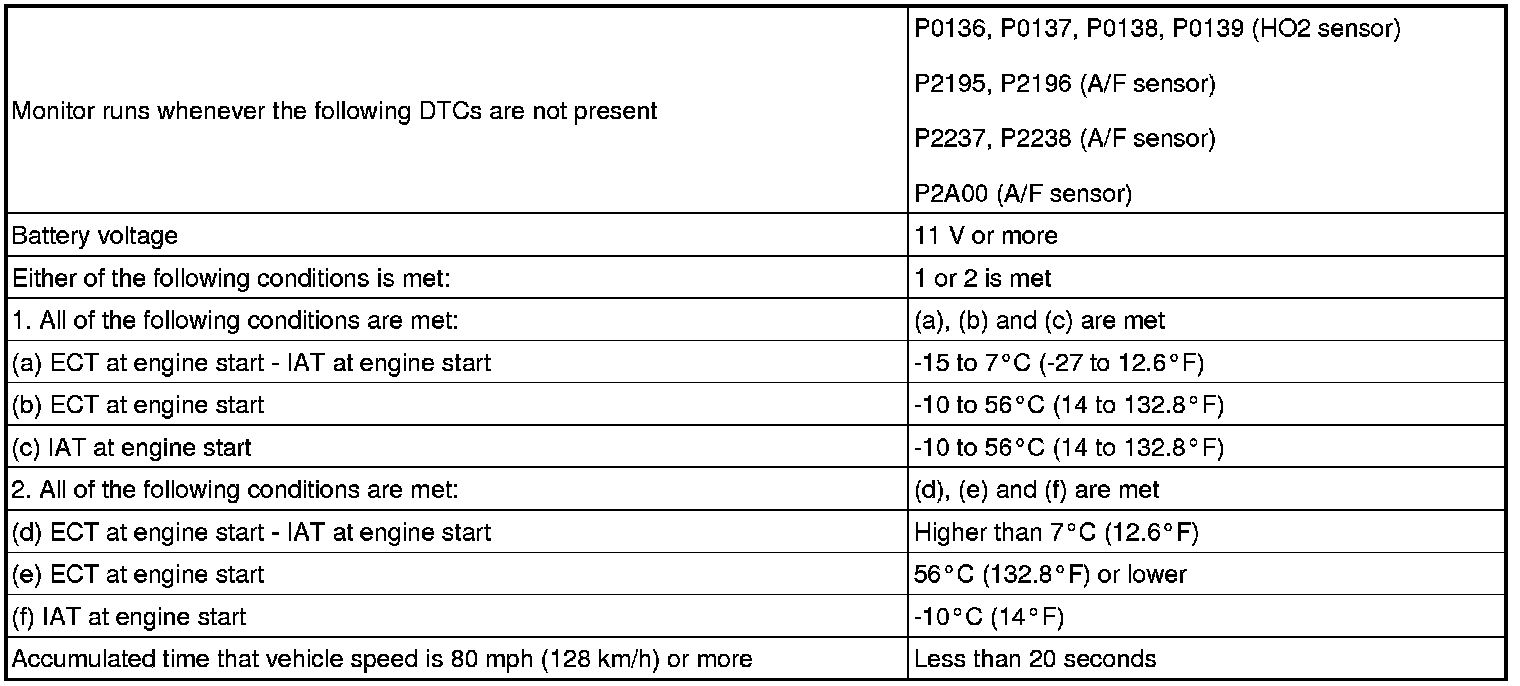

TYPICAL ENABLING CONDITIONS

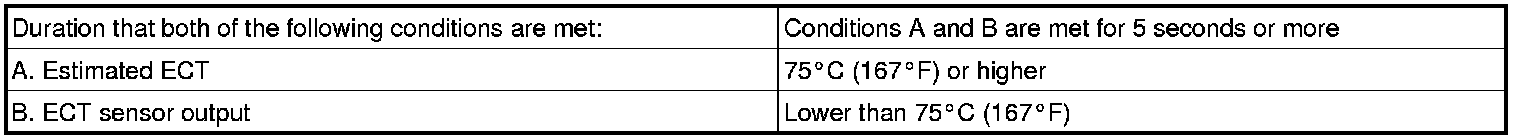

TYPICAL MALFUNCTION THRESHOLDS





MONITOR RESULT

Refer to detailed information on "CHECKING MONITOR STATUS" Mode 6 Data.

INSPECTION PROCEDURE
HINT: Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air-fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.

PROCEDURE

1. CHECK OTHER DTC OUTPUT (IN ADDITION TO DTC P0128)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to the ON position.
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
(e) Read the DTCs.

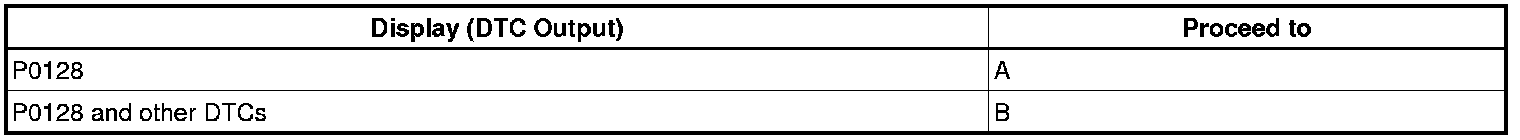

Result:





HINT: If any DTCs other than P0128 are output, troubleshoot those DTCs first.

B -- GO TO DTC CHART
A -- Continue to next step.
2. CHECK COOLING SYSTEM
(a) Check for defects in the cooling system that might cause the system to be too cold, such as abnormal radiator fan operation or any modifications.
NG -- REPAIR OR REPLACE COOLING SYSTEM
OK -- Continue to next step.
3. INSPECT THERMOSTAT
(a) Remove the thermostat Removal.
(b) Check the valve opening temperature of the thermostat.
Standard temperature:
80 to 84°C (176 to 183°F)
HINT: In addition to the above check, confirm that the valve is completely closed when the temperature is below the standard.
(c) Reinstall the thermostat Installation.
NG -- REPLACE THERMOSTAT
OK -- REPLACE ECM
