Engine Immobilizer System
ENGINE IMMOBILISER: ENGINE IMMOBILISER SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
ENGINE IMMOBILISER: ENGINE IMMOBILISER SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

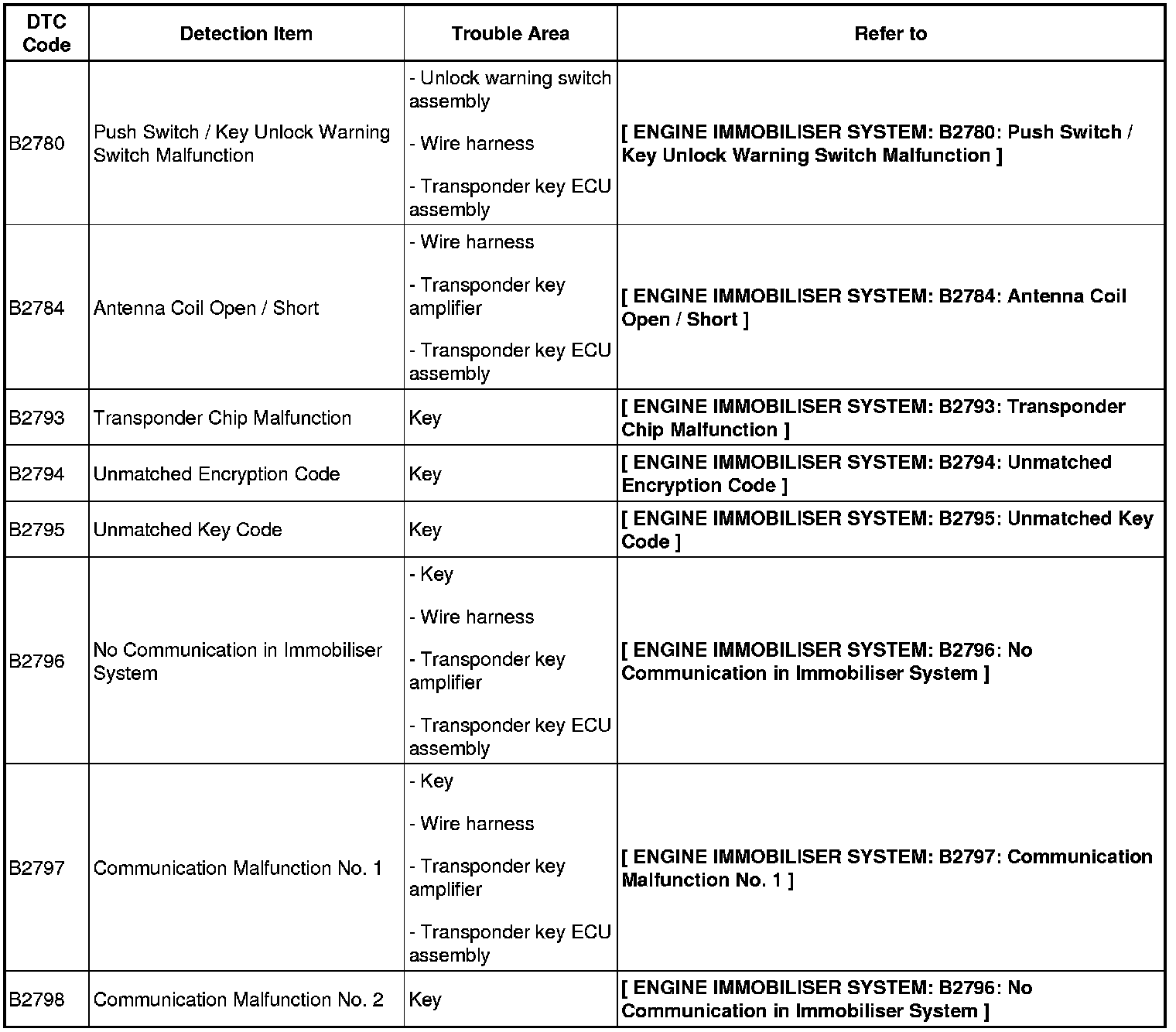

1. TRANSPONDER KEY ECU ASSEMBLY DTC CHART
TRANSPONDER KEY ECU ASSEMBLY
B2780 - B2798:

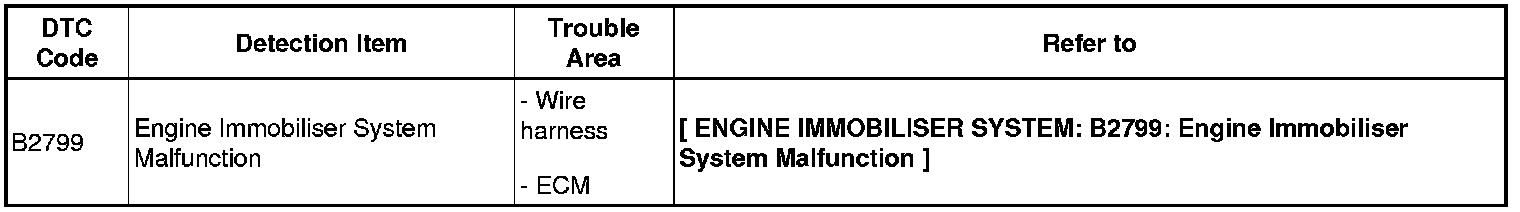

2. ECM DTC CHART
NOTICE: The DTC for the immobiliser system is specified. If other codes are output, check the DTC chart of the SFI system.
ECM
