Engine Control System - SFI System

2AZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: Parameters listed in the chart may not be exactly the same as your readings due to the type of instrument or other factors.
If a DTC is displayed, check the trouble area for the DTC listed in the table below.

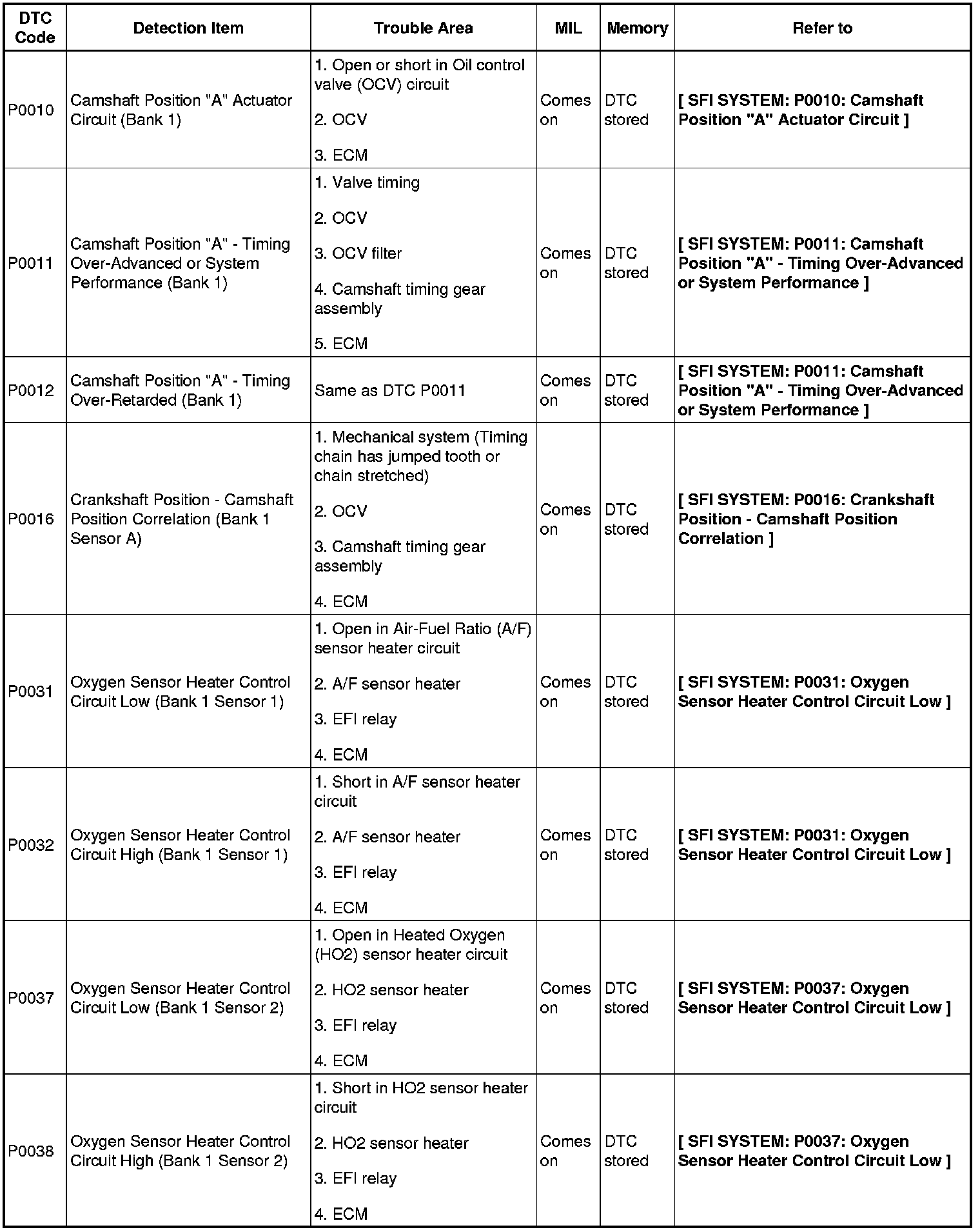

P0100 - P0038:

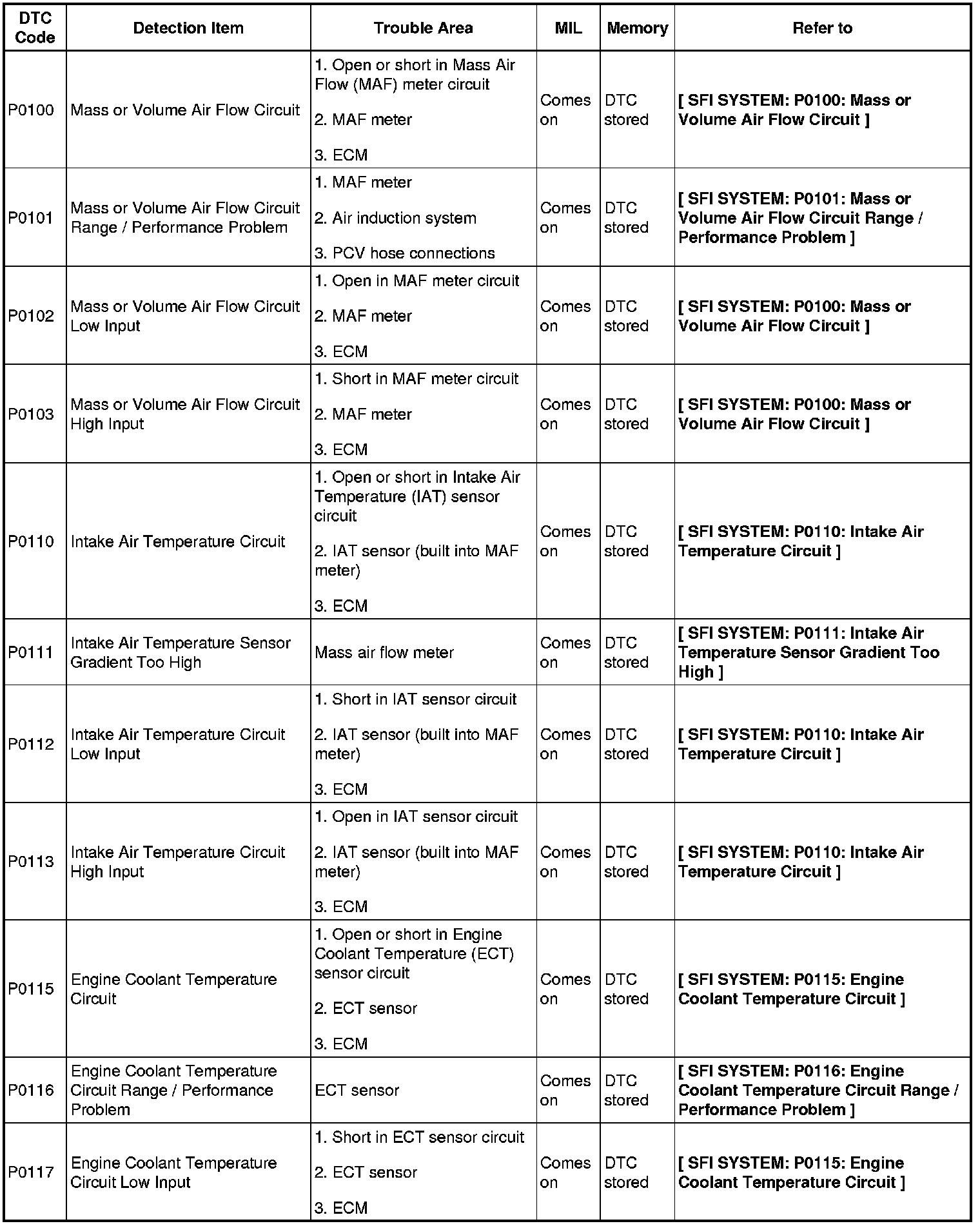

P0100 - P0117:

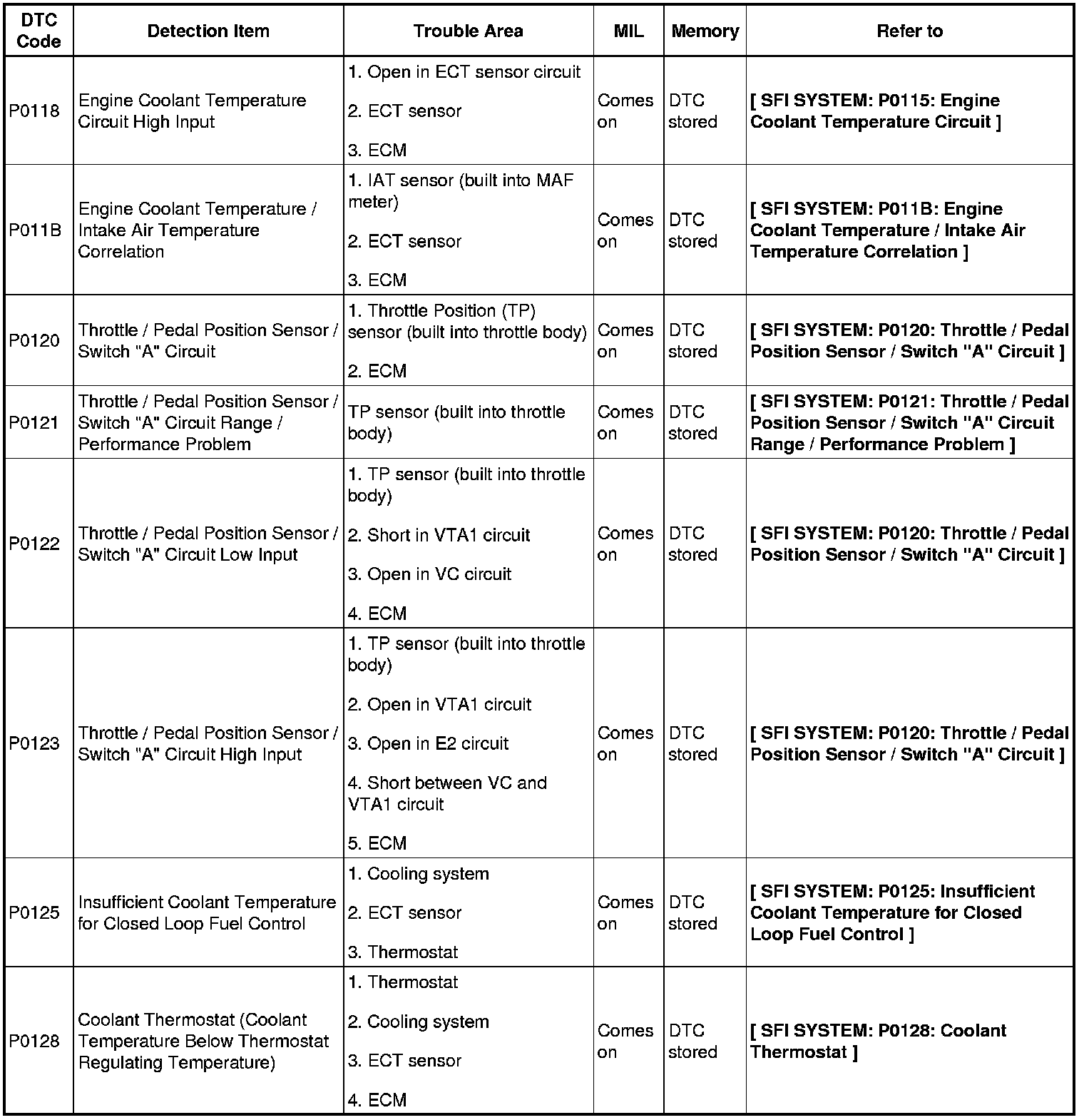

P0118 - P0128:

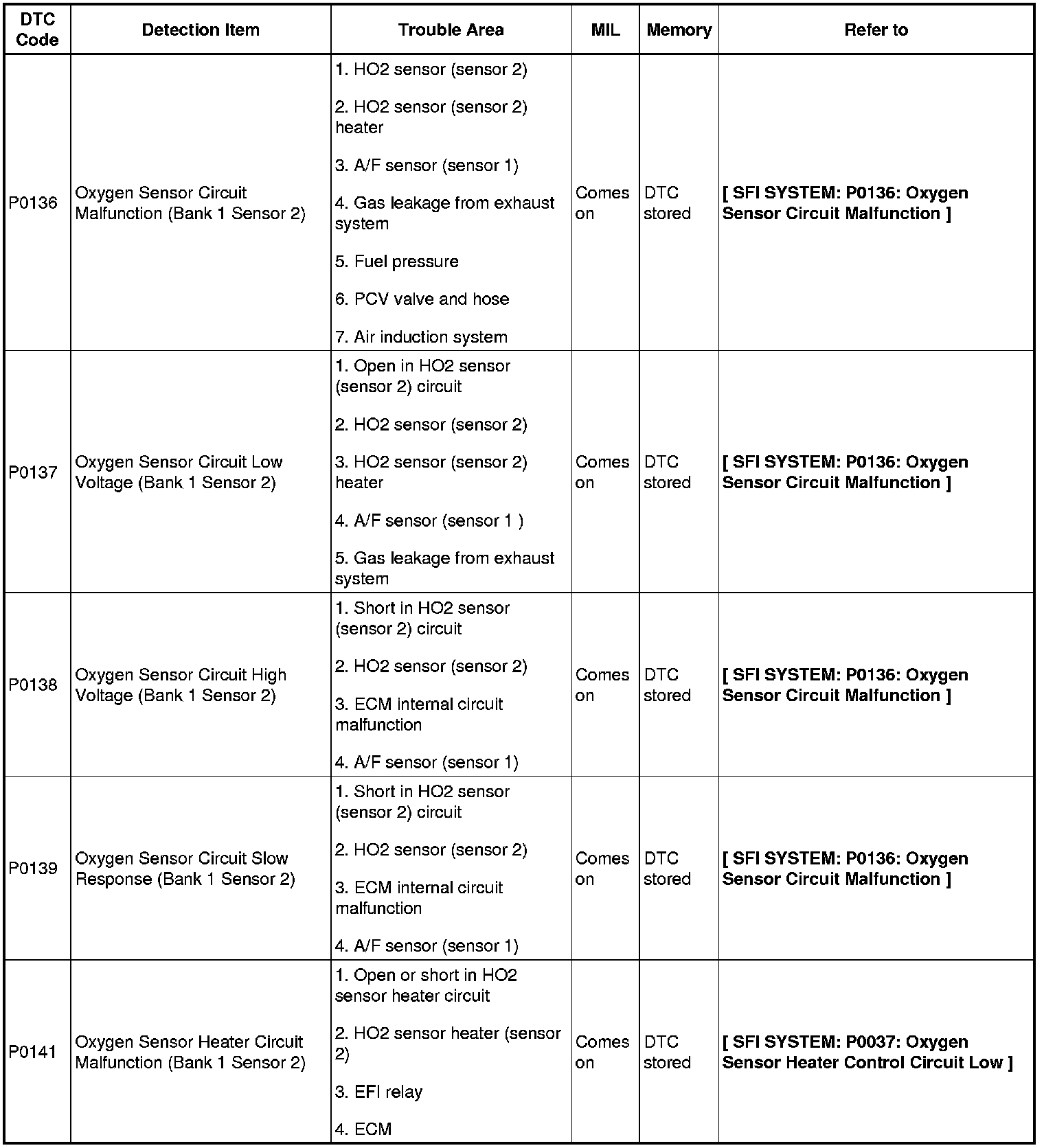

P0136 - P0141:

P0171 - P0220:

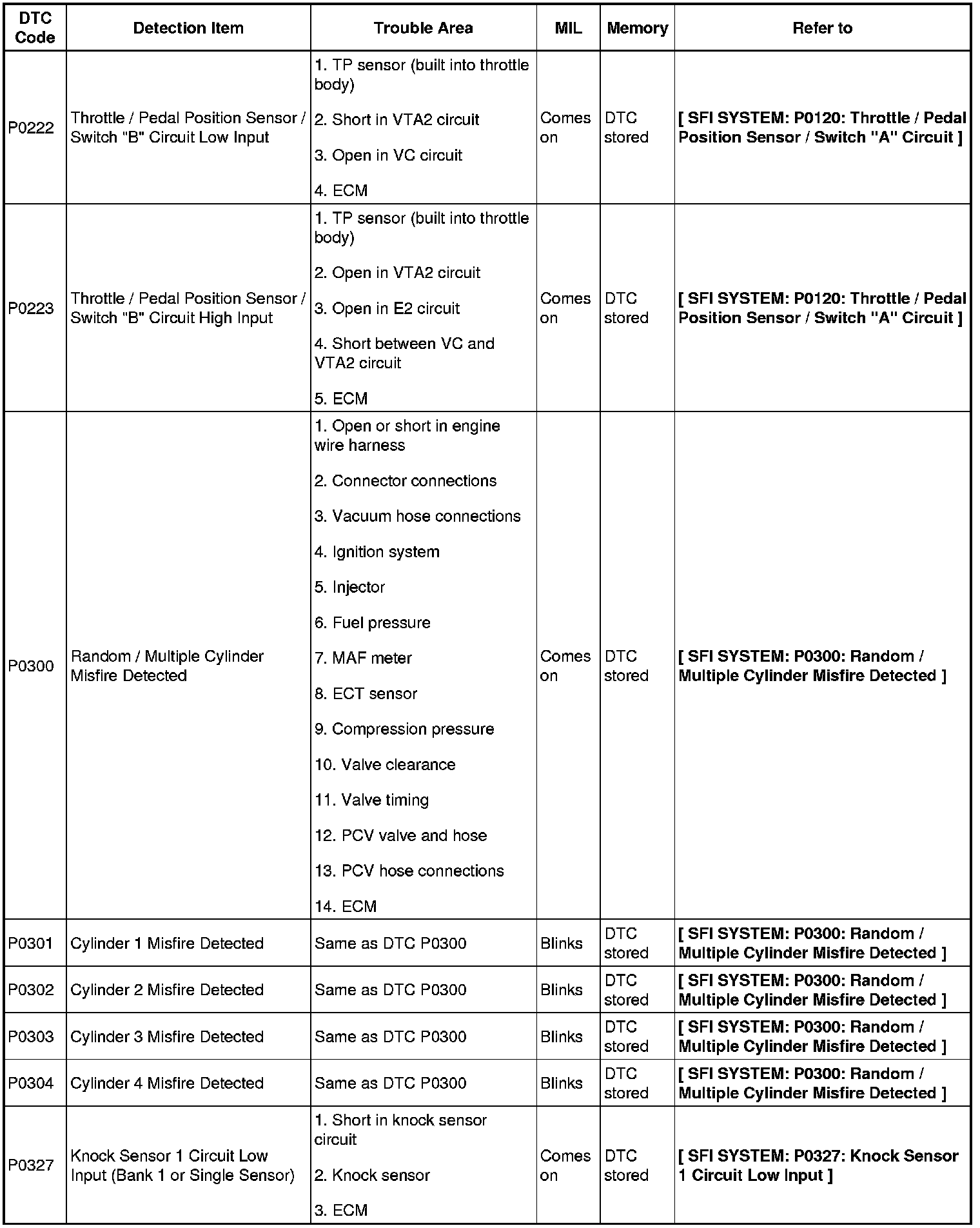

P0222 - P0327:

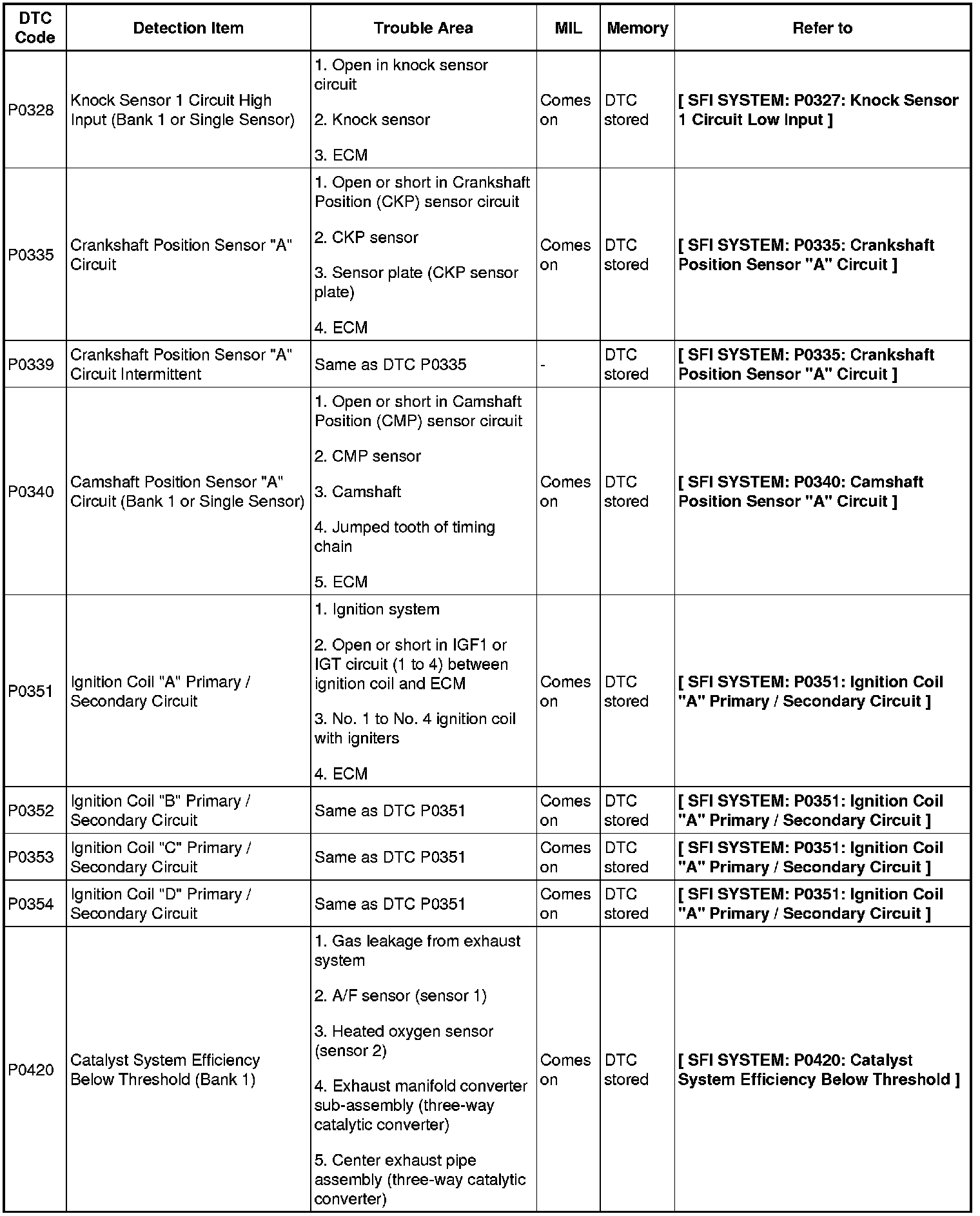

P0328 - P0420:

P043E - P0453:

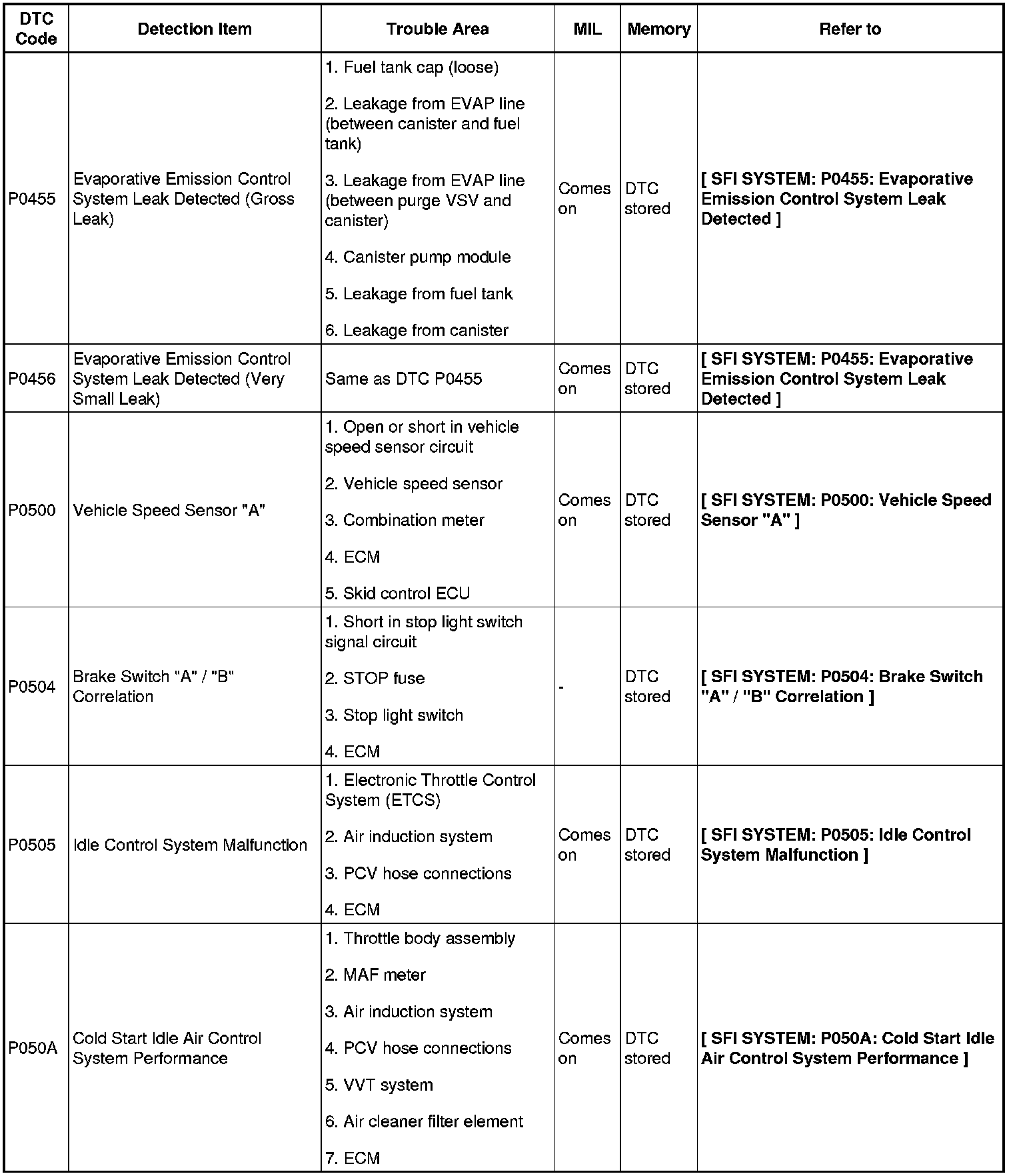

P0455 - P050A:

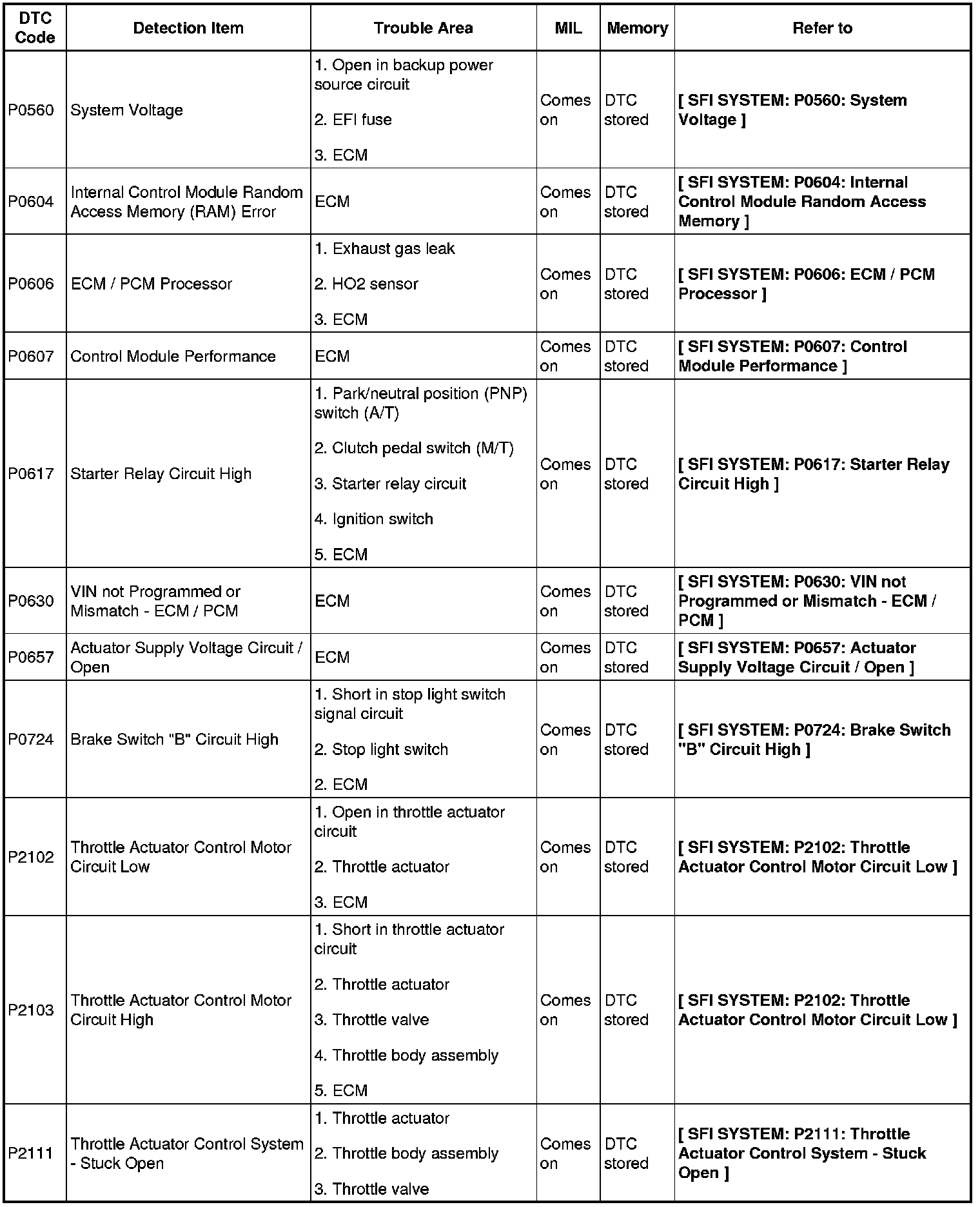

P0560 - P2111:

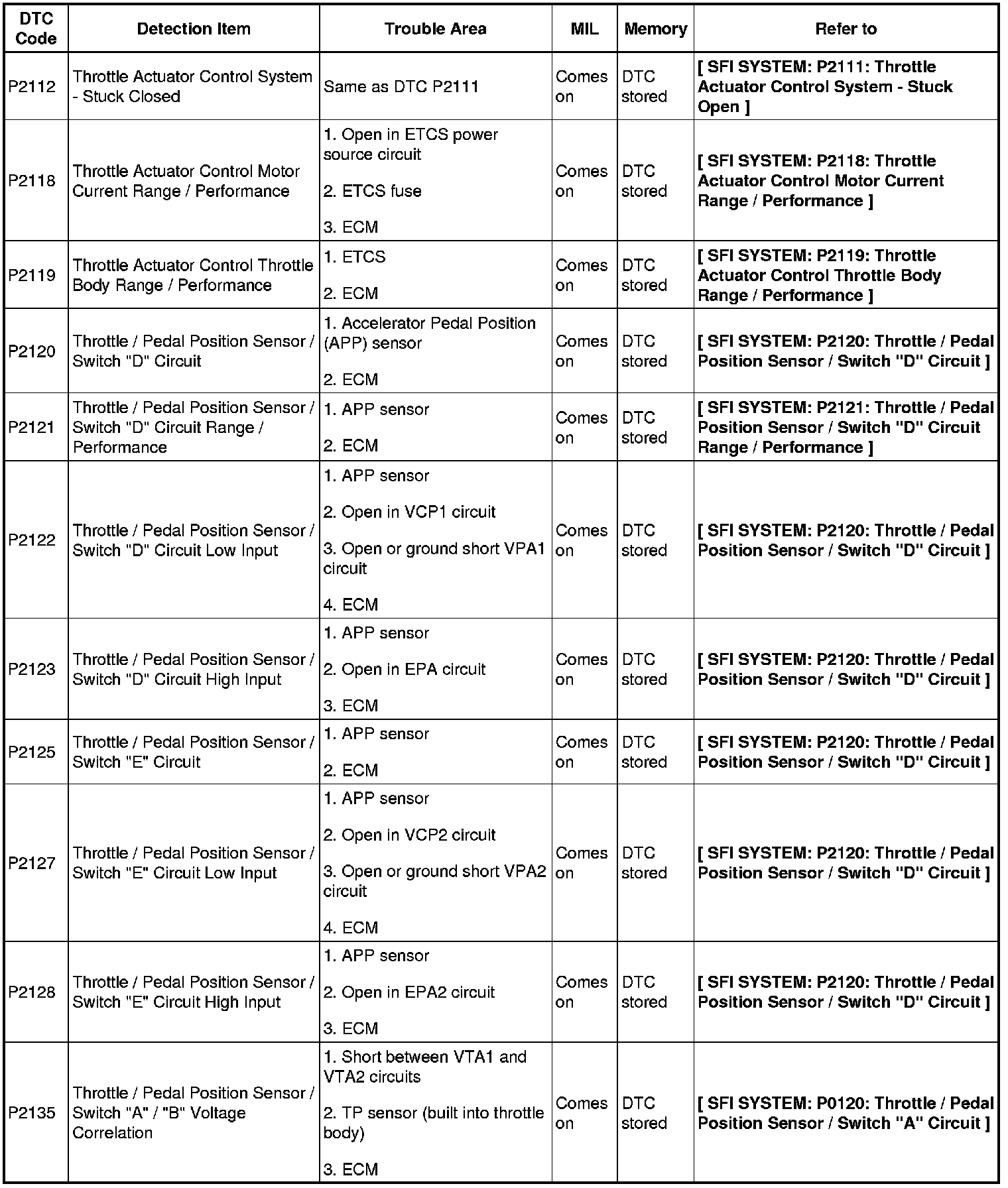

P2112 - P2135:

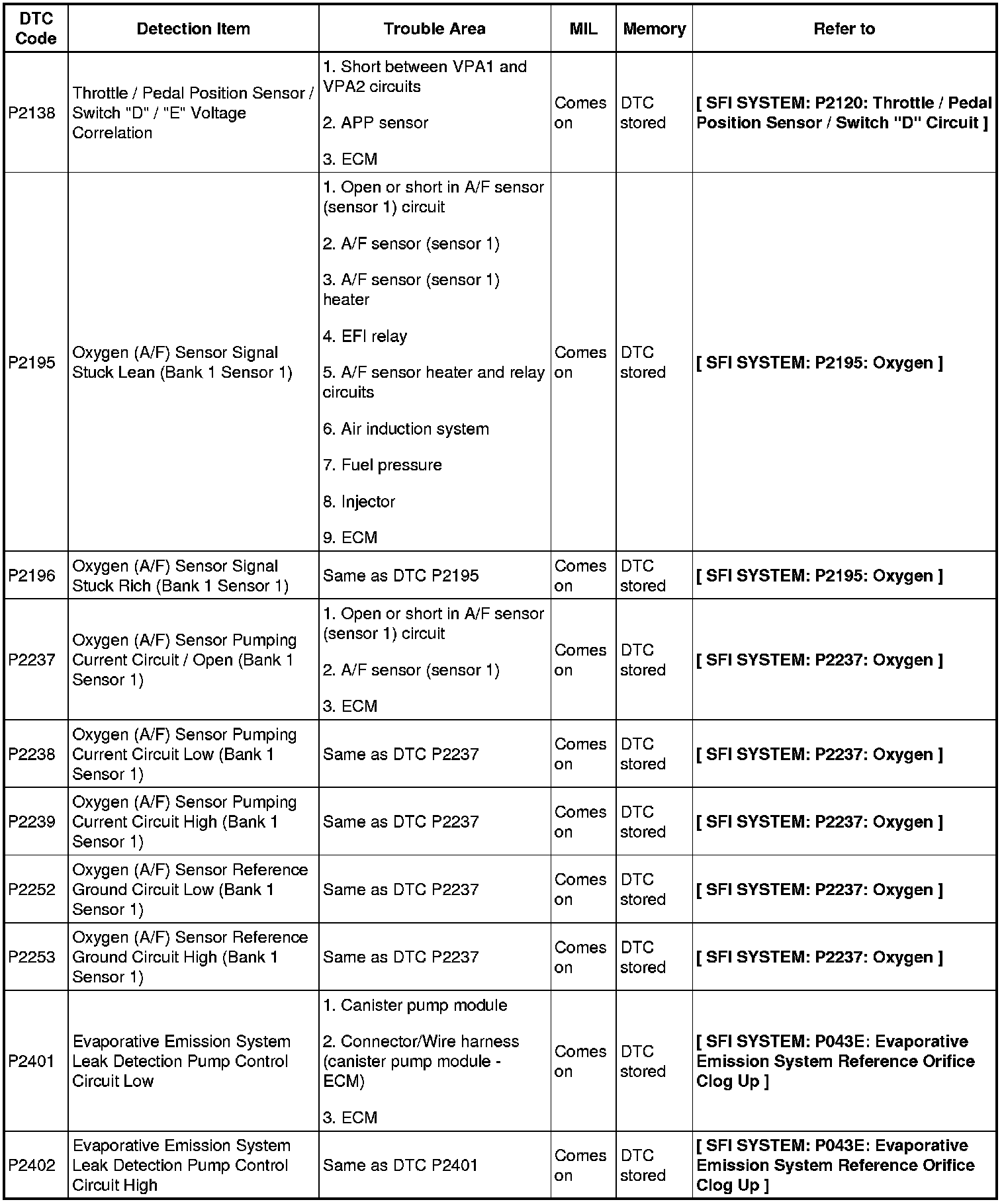

P2138 - P2402:

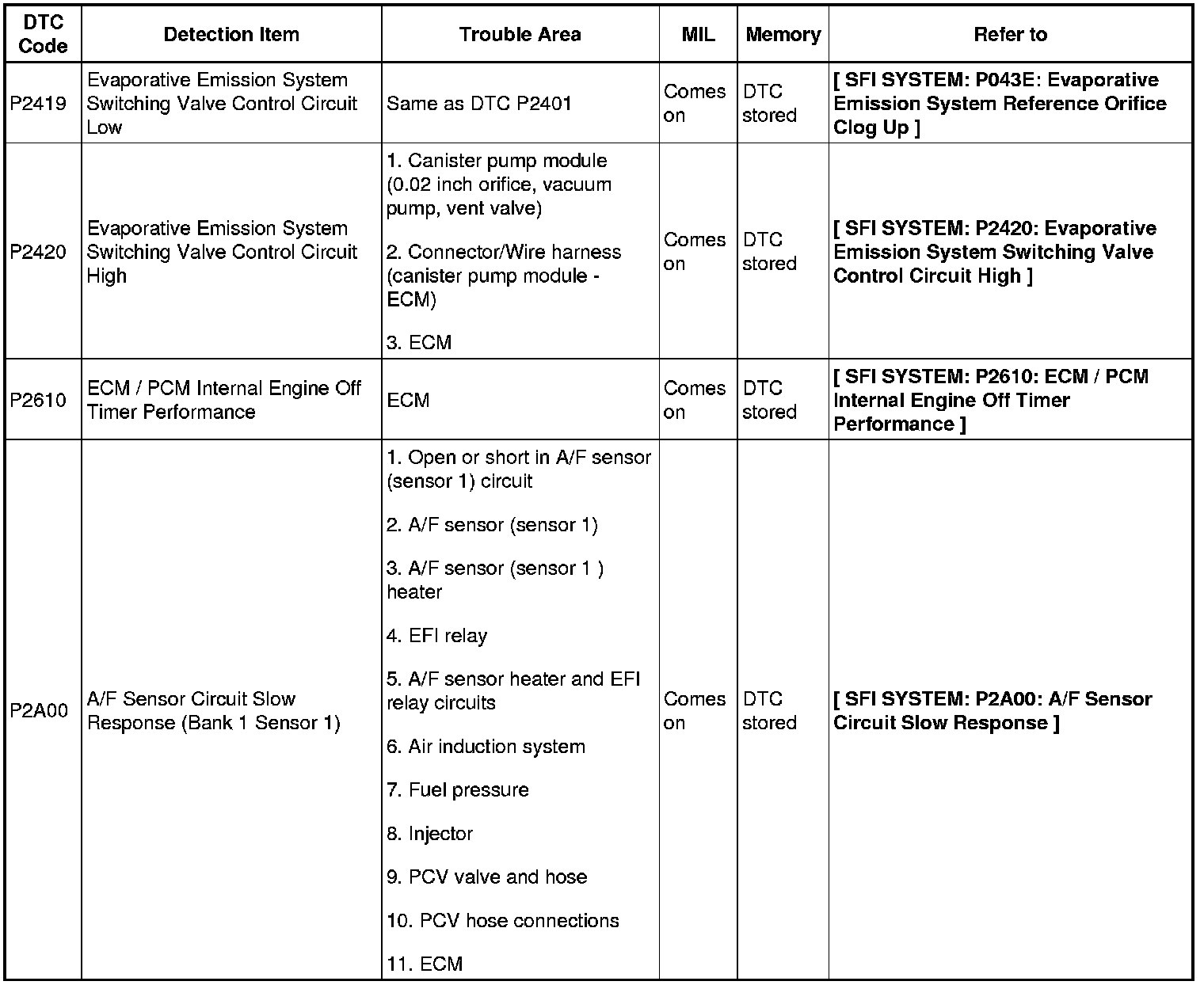

P2419 - P2A00:
