B2784

ENGINE IMMOBILISER: ENGINE IMMOBILISER SYSTEM: B2784: Antenna Coil Open / Short

DTC B2784 - Antenna Coil Open / Short

DESCRIPTION

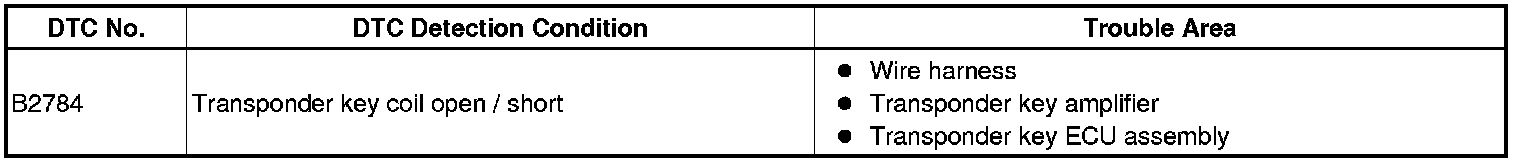

This DTC is detected when the transponder key coil is open or short circuited.





WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. READ VALUE USING TECHSTREAM (TRANSPONDER KEY COIL)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch ON.
(c) Turn the Techstream on.
(d) Enter the following menus: Body Electrical / Immobiliser / Data List.

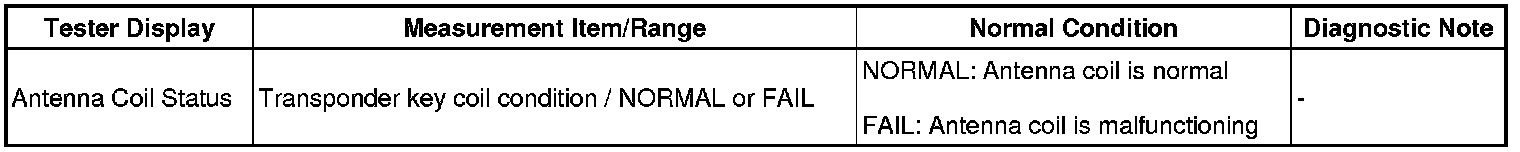

(e) Read the Data List according to the display on the Techstream.

Immobiliser (Transponder key ECU assembly)





OK:
On the Techstream screen, the item displays NORMAL according to the chart above.
OK -- REPLACE TRANSPONDER KEY ECU ASSEMBLY
NG -- Continue to next step.
2. CHECK WIRE HARNESS (TRANSPONDER KEY ECU ASSEMBLY - TRANSPONDER KEY AMPLIFIER)




(a) Disconnect the T8 ECU connector.
(b) Disconnect the T7 amplifier connector.
(c) Measure the resistance of the wire harness side connectors.

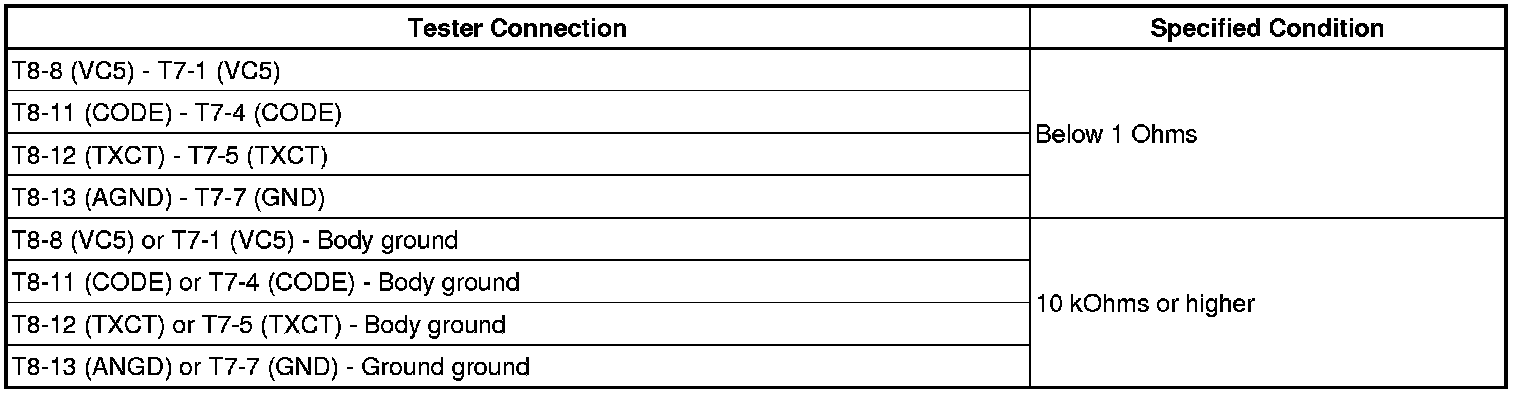

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- REPLACE TRANSPONDER KEY AMPLIFIER
