SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM:

DTC B1900/73 - Short in Front Driver Side Pretensioner Squib Circuit

DTC B1901/73 - Open in Front Driver Side Pretensioner Squib Circuit

DTC B1902/73 - Short to GND in Front Driver Side Pretensioner Squib Circuit

DTC B1903/73 - Short to B+ in Front Driver Side Pretensioner Squib Circuit

DESCRIPTION
- The pretensioner squib (driver side) circuit consists of the center airbag sensor and the front seat outer belt LH.
- This circuit instructs the SRS to deploy when deployment conditions are met.

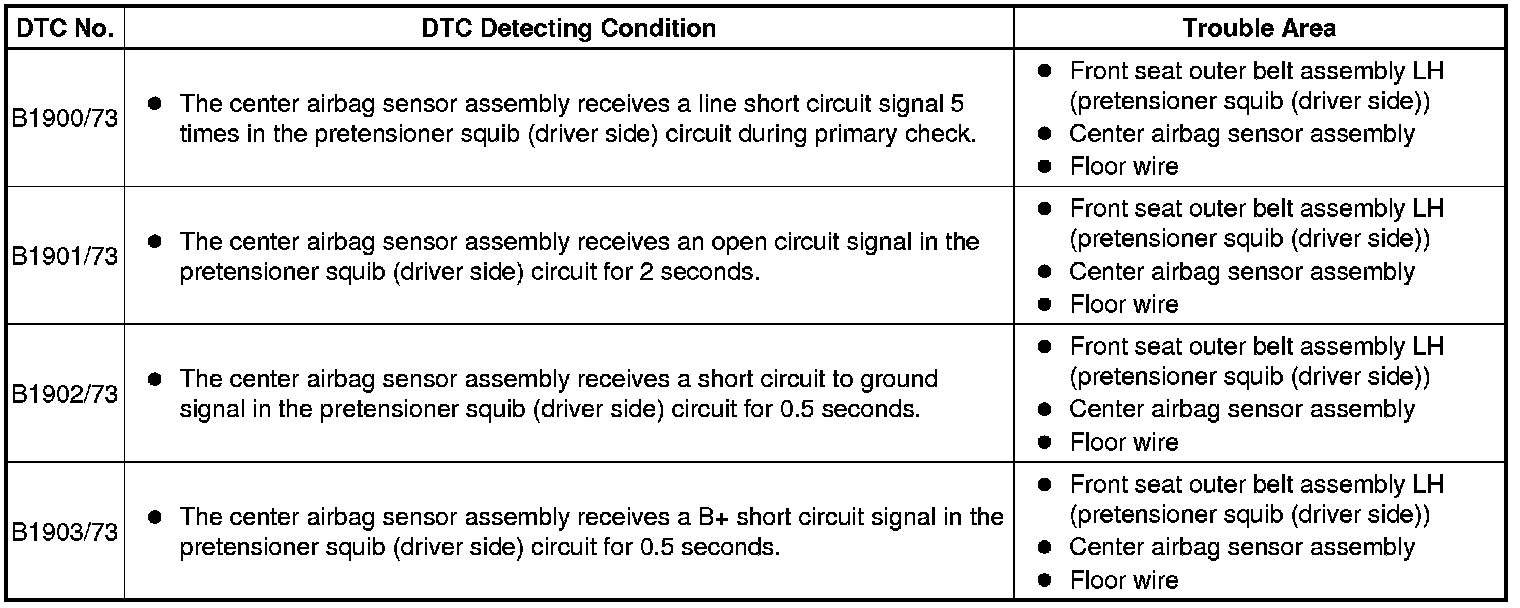

- These DTCs are recorded when a malfunction is detected in the pretensioner squib (driver side) circuit.

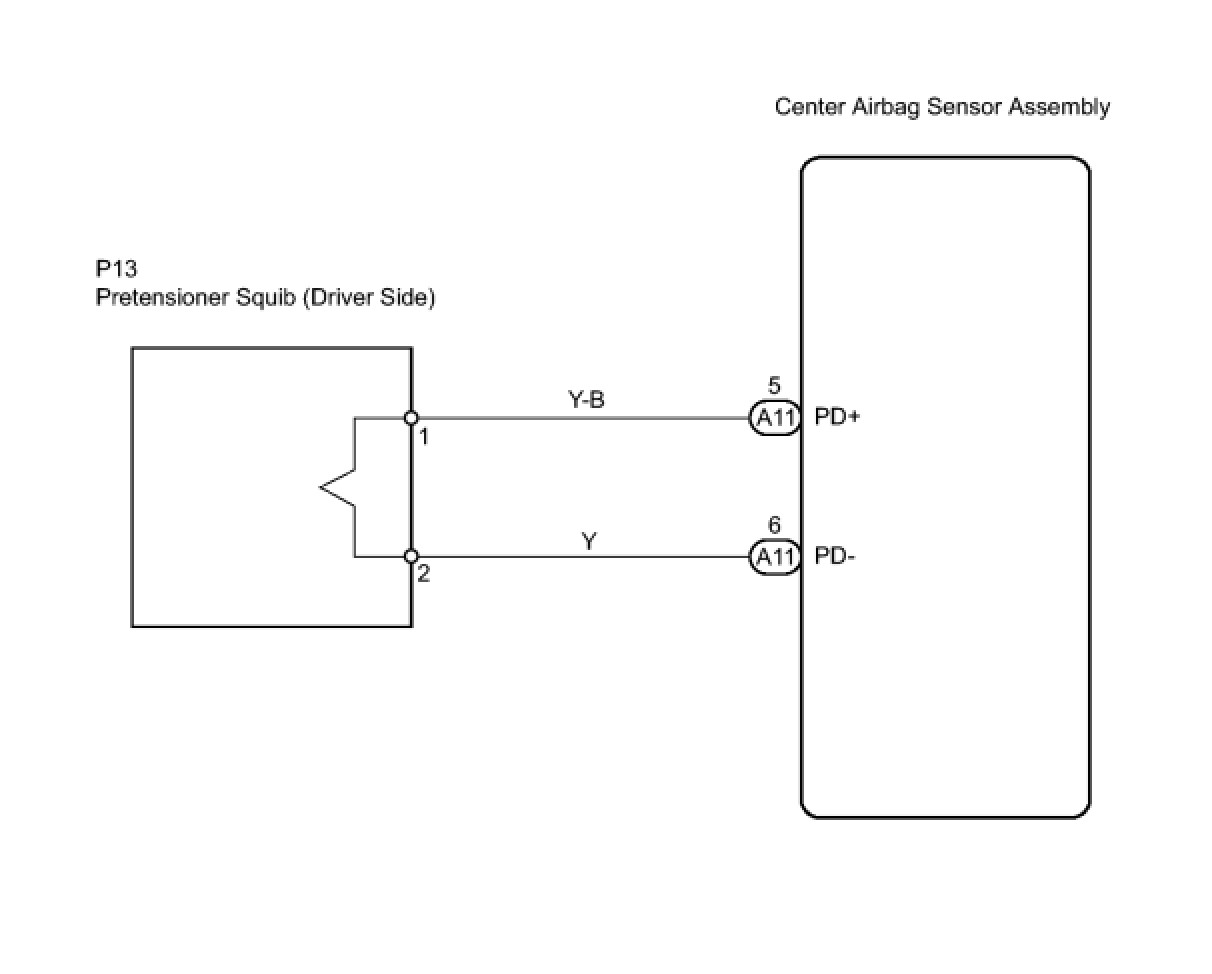

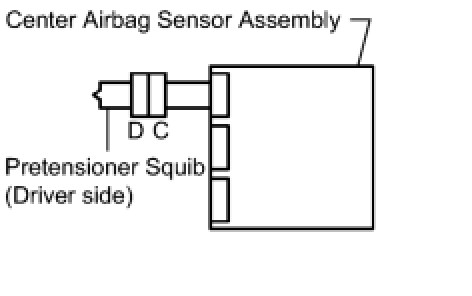

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC
(a) Proceed to each step according to DTC readings.
(1) If using the Techstream (read the 5-digit of DTC):
Using the Techstream, check for DTCs DTC Check / Clear.

Result

(2) If not using the Techstream (read the 2-digit of DTC):
Check for DTCs DTC Check / Clear.

Result

E -- CHECK CONNECTOR
D -- CHECK FLOOR WIRE (TO B+)
C -- CHECK FLOOR WIRE (TO GROUND)
B -- CHECK FLOOR WIRE (OPEN)
A -- Continue to next step.
2. CHECK CONNECTOR
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Check that the floor wire connector (on the front seat outer belt LH side) is not damaged.
OK:
The lock button is not disengaged, or the claw of the lock is not deformed or damaged.
NG -- REPAIR OR REPLACE FLOOR WIRE
OK -- Continue to next step.
3. CHECK FLOOR WIRE (SHORT)

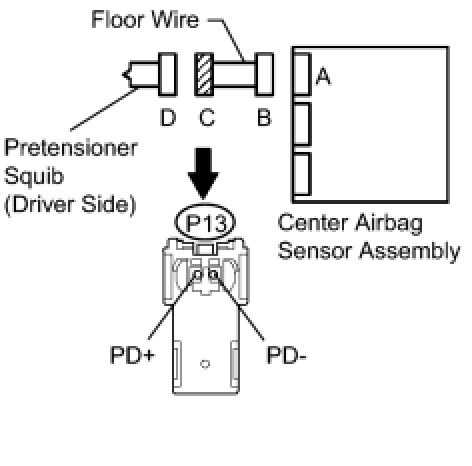

(a) Disconnect the connectors from the center airbag sensor.
(b) Disconnect the connector from the front seat outer belt LH (pretensioner squib (driver side)).
(c) Release the activation prevention mechanism built into connector "B" Diagnosis System.
(d) Measure the resistance according to the value(s) in the table below.

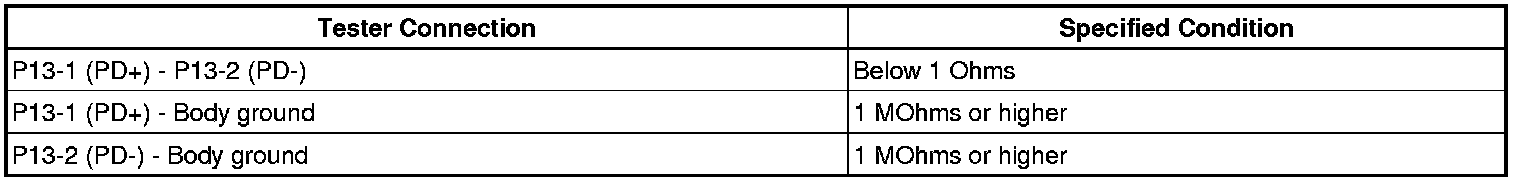

Standard resistance:

OK -- CHECK CENTER AIRBAG SENSOR ASSEMBLY
NG -- REPAIR OR REPLACE FLOOR WIRE
4. CHECK FLOOR WIRE (OPEN)

(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the center airbag sensor.
(d) Disconnect the connector from the front seat outer belt LH (pretensioner squib (driver side)).
(e) Measure the resistance according to the value(s) in the table below.

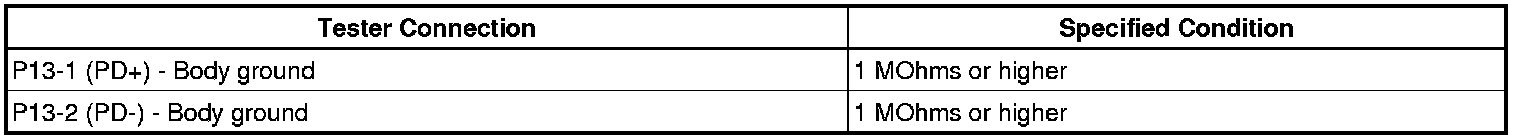

Standard resistance:

OK -- CHECK CENTER AIRBAG SENSOR ASSEMBLY
NG -- REPAIR OR REPLACE FLOOR WIRE
5. CHECK FLOOR WIRE (TO GROUND)

OK -- CHECK CENTER AIRBAG SENSOR ASSEMBLY
NG -- REPAIR OR REPLACE FLOOR WIRE
6. CHECK FLOOR WIRE (TO B+)

(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the center airbag sensor.
(d) Disconnect the connector from the front seat outer belt LH (pretensioner squib (driver side)).
(e) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position.
(g) Measure the voltage according to the value(s) in the table below.

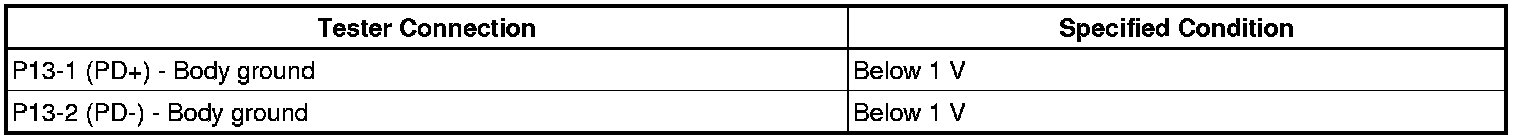

Standard voltage:

(h) Before proceeding to the next step, perform the following procedures.
(1) Turn the ignition switch to the LOCK position.
(2) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
OK -- CHECK CENTER AIRBAG SENSOR ASSEMBLY
NG -- REPAIR OR REPLACE FLOOR WIRE
7. CHECK CONNECTOR
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Check that the floor wire connector (on the front seat outer belt LH side) is not damaged.
OK:
The lock button is not disengaged, or the claw of the lock is not deformed or damaged.
NG -- REPAIR OR REPLACE FLOOR WIRE
OK -- Continue to next step.
8. CHECK FLOOR WIRE (PRETENSIONER SQUIB (DRIVER SIDE) CIRCUIT)

(a) Disconnect the connectors from the center airbag sensor.
(b) Disconnect the connector from the front seat outer belt LH (pretensioner squib (driver side)).
(c) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(d) Turn the ignition switch to the ON position.
(e) Measure the voltage according to the value(s) in the table below.
Standard voltage:

(f) Turn the ignition switch to the LOCK position.
(g) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(h) Measure the resistance according to the value(s) in the table below.
Standard resistance:

(i) Release the activation prevention mechanism built into connector "B" Diagnosis System.
(j) Measure the resistance according to the value(s) in the table below.
Standard resistance:

NG -- REPAIR OR REPLACE FLOOR WIRE
OK -- Continue to next step.
9. REPLACE FRONT SEAT OUTER BELT ASSEMBLY LH (PRETENSIONER SQUIB (DRIVER SIDE))

(a) Replace the front seat outer belt LH and connect the connector.
HINT: Perform the inspection using parts from a normal vehicle if possible.
(b) Connect the connectors to the center airbag sensor.
(c) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(d) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(e) Clear the DTCs stored in memory DTC Check / Clear.
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(h) Check for DTCs DTC Check / Clear.
OK:
DTC 73 is not output.
HINT: Codes other than code 73 may be output at this time, but they are not related to this check.

NG -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY
OK -- END
10. CHECK CENTER AIRBAG SENSOR ASSEMBLY

(a) Restore the released activation prevention mechanism of connector "B" to the original condition.
(b) Connect the connectors to the center airbag sensor.
(c) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(d) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(e) Clear the DTCs stored in memory DTC Check / Clear.
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(h) Check for DTCs DTC Check / Clear.
OK:
DTC B1900 is not output.
HINT: Codes other than code B1900 may be output at this time, but they are not related to this check.

OK -- CHECK FRONT SEAT OUTER BELT ASSEMBLY LH (PRETENSIONER SQUIB (DRIVER SIDE))
NG -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY

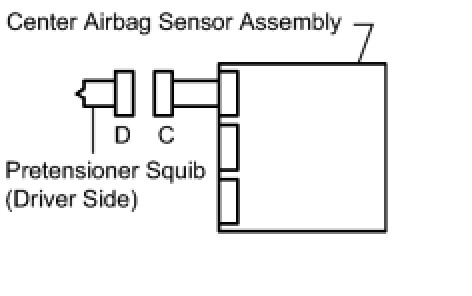

11. CHECK CENTER AIRBAG SENSOR ASSEMBLY

(a) Connect the connectors to the center airbag sensor.
(b) Using a service wire, connect P13-1 (PD+) and P13-2 (PD-) of connector "C".
NOTICE:
- Twist the end of the service wire in order to insert it into the connector.
- Do not forcibly insert the twisted service wire into the terminals of the connector when connecting.
(c) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(d) Turn the ignition switch on the ON position, and wait for at least 60 seconds.
(e) Clear the DTCs stored in memory DTC Check / Clear.
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(h) Check for DTCs DTC Check / Clear.
OK:
DTC B1901, B1902 or B1903 is not output.
HINT: Codes other than code B1901, B1902 or B1903 may be output at this time, but they are not related to this check.
(i) Before proceeding to the next step, perform the following procedures.
(1) Disconnect the service wire from connector "C".
NG -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY
OK -- Continue to next step.

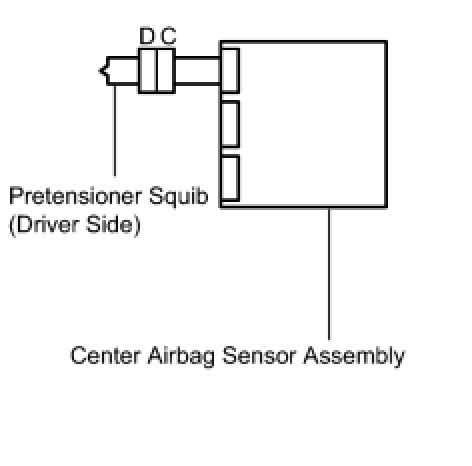

12. CHECK FRONT SEAT OUTER BELT ASSEMBLY LH (PRETENSIONER SQUIB (DRIVER SIDE))

(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Connect the connector to the front seat outer belt LH.
(d) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(f) Clear the DTCs stored in memory DTC Check / Clear.
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(i) Check for DTCs DTC Check / Clear.
OK:
DTC B1900, B1901, B1902 or B1903 is not output.
HINT: Codes other than code B1900, B1901, B1902 or B1903 may be output at this time, but they are not related to this check.

NG -- REPLACE FRONT SEAT OUTER BELT ASSEMBLY LH
OK -- PERFORM SYMPTOM SIMULATION
