B1795

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: B1795: Occupant Classification ECU Malfunction

DTC B1795 - Occupant Classification ECU Malfunction

DESCRIPTION

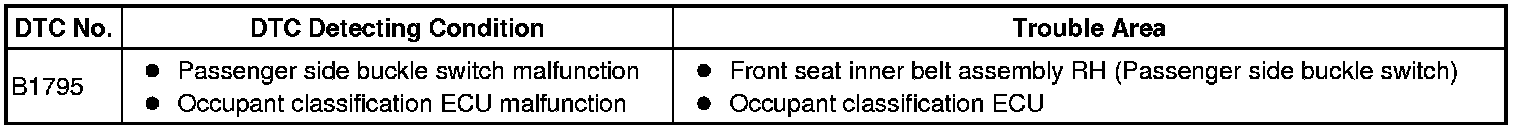

DTC B1795 is recorded when a malfunction is detected in the occupant classification ECU.
Troubleshoot DTC B1771 first when the DTCs B1771 and B1795 are output simultaneously.





HINT: When DTC B1650/32 is detected as a result of troubleshooting for "AIRBAG SYSTEM", check the DTCs stored in the occupant classification ECU. When DTC B1795 is output, perform troubleshooting for the DTC.

INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC
(a) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(b) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.
Result:
A
DTCs B1771 and B1795 are output.
B
DTC B1795 is output.
HINT: Codes other than DTCs B1771 and B1795 may be output at this time, but they are not related to this check.

A -- GO TO DTC B1771
B -- Continue to next step.
2. REPLACE OCCUPANT CLASSIFICATION ECU
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery.
(c) Replace the occupant classification ECU Removal.
NEXT -- Continue to next step.
3. PERFORM ZERO POINT CALIBRATION
(a) Connect the negative (-) terminal cable to the battery.
(b) Connect the Techstream to the DLC3.
(c) Turn the ignition switch to the ON position.
(d) Using the Techstream, perform "zero point calibration" Programming and Relearning.
OK:
"Zero Point Calibration is complete." is displayed.
NEXT -- Continue to next step.
4. PERFORM SENSITIVITY CHECK
(a) Using the Techstream, perform "sensitivity check" Programming and Relearning.
Standard values:
27 to 33 kg (59.52 to 72.75 lb)
NEXT -- END
