B1794

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: B1794: Open in Occupant Classification ECU Battery Positive Line

DTC B1794 - Open in Occupant Classification ECU Battery Positive Line

DESCRIPTION

This circuit consists of the occupant classification ECU and the power source circuit (battery, fuse, wire harness).

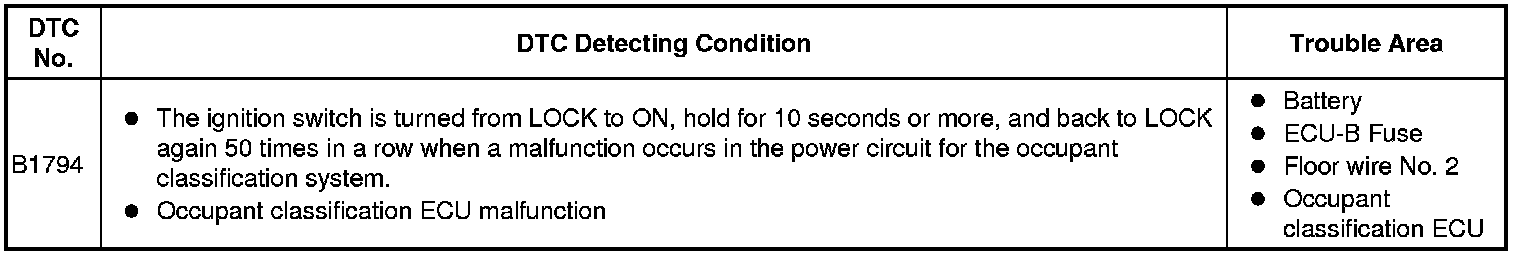

DTC B1794 is recorded when a malfunction is detected in the occupant classification ECU or the power source circuit.
HINT: When DTC B1794 is output after switching the ignition switch LOCK-ON-LOCK 50 times in a row when a malfunction occurs in the power circuit for the occupant classification system, the DTC is output again when a malfunction is detected even once after being cleared, unless the normal system code is input.





HINT: When DTC B1650/32 is detected as a result of troubleshooting for the AIRBAG SYSTEM, check the DTCs stored in the occupant classification ECU. When DTC B1794 is output, perform troubleshooting for the DTC.

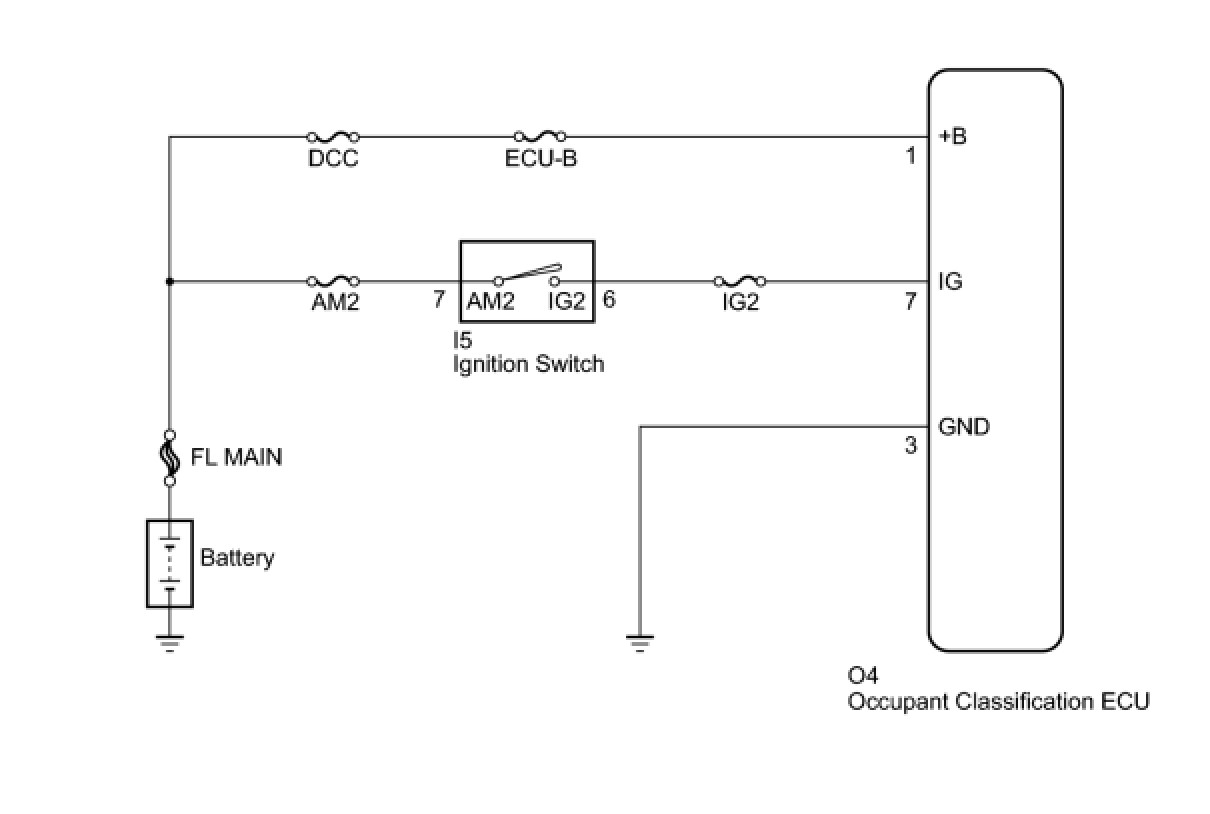

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK BATTERY
(a) Measure the voltage of the battery.
Standard voltage:
11 to 14 V
NG -- REPLACE BATTERY
OK -- Continue to next step.
2. CHECK FUSE
(a) Check the ECU-B fuse.
Standard resistance:
Below 1 Ohms
NG -- REPLACE FUSE
OK -- Continue to next step.
3. CHECK HARNESS AND CONNECTOR (OCCUPANT CLASSIFICATION ECU - BATTERY)




(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

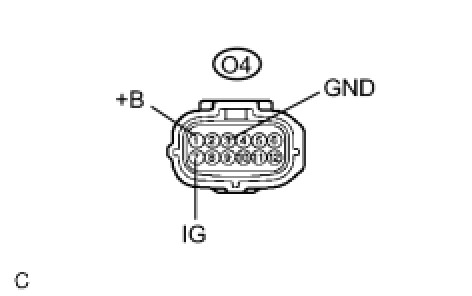

(c) Disconnect the connector from the occupant classification ECU.
(d) Connect the negative (-) terminal cable to the battery.
(e) Turn the ignition switch to the ON position.

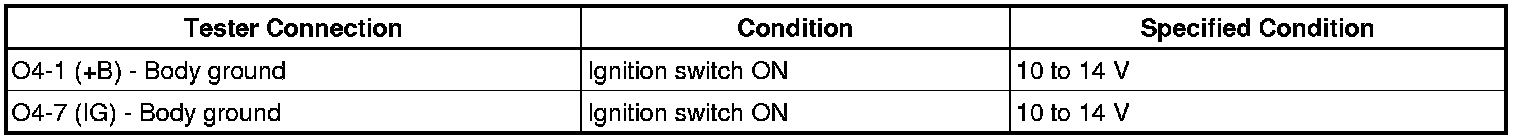

(f) Measure the voltage according to the value(s) in the table below.
Standard voltage:





(g) Turn the ignition switch to the LOCK position.
(h) Measure the resistance according to the value(s) in the table below.
Standard resistance:





NG -- REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
4. CHECK DTC
(a) Turn the ignition switch to the ON position.
(b) Clear the DTCs stored in memory Reading and Clearing Diagnostic Trouble Codes.
HINT: First clear DTCs stored in the occupant classification ECU and then in the center airbag sensor assembly.
(c) Turn the ignition switch to the LOCK position.
(d) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(e) Using the Techstream, check the DTCs of the occupant classification ECU Reading and Clearing Diagnostic Trouble Codes.
OK:
DTC B1794 is not output.
HINT: Codes other than code B1794 may be output at this time, but they are not related to this check.

NG -- REPLACE OCCUPANT CLASSIFICATION ECU
OK -- USE SIMULATION METHOD TO CHECK
5. REPLACE OCCUPANT CLASSIFICATION ECU
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Replace the occupant classification ECU Removal.
NEXT -- Continue to next step.
6. PERFORM ZERO POINT CALIBRATION
(a) Connect the negative (-) terminal cable to the battery.
(b) Connect the Techstream to the DLC3.
(c) Turn the ignition switch to the ON position.
(d) Using the Techstream, perform "zero point calibration" Programming and Relearning.
OK:
"Zero Point Calibration is complete." is displayed.
NEXT -- Continue to next step.
7. PERFORM SENSITIVITY CHECK
(a) Using the Techstream, perform "sensitivity check" Programming and Relearning.
Standard value:
27 to 33 kg (59.52 to 72.75 lb)
NEXT -- END
