SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: B1783: Rear Occupant Classification Sensor RH Circuit Malfunction

DTC B1783 - Rear Occupant Classification Sensor RH Circuit Malfunction

DESCRIPTION

The rear occupant classification sensor RH circuit consists of the occupant classification ECU and the rear occupant classification sensor RH.

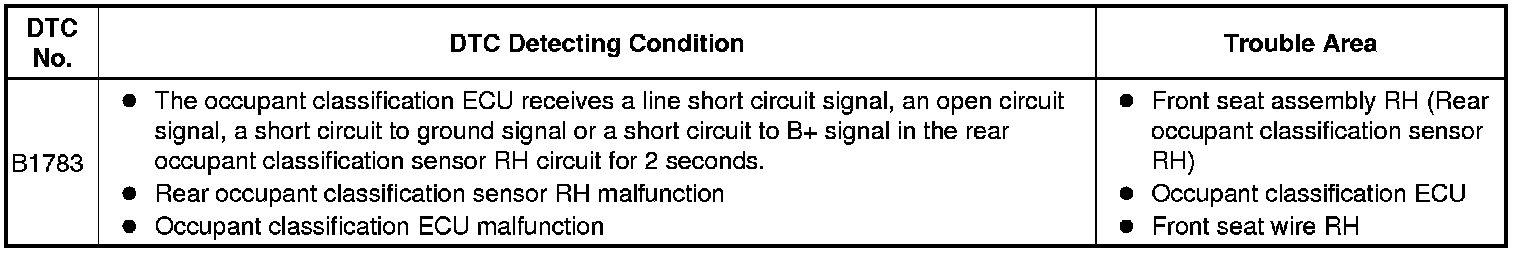

DTC B1783 is recorded when a malfunction is detected in the rear occupant classification sensor RH circuit.

HINT: When DTC B1650/32 is detected as a result of troubleshooting for "AIRBAG SYSTEM", check the DTCs stored in the occupant classification ECU. When DTC B1783 is output, perform troubleshooting for the DTC.

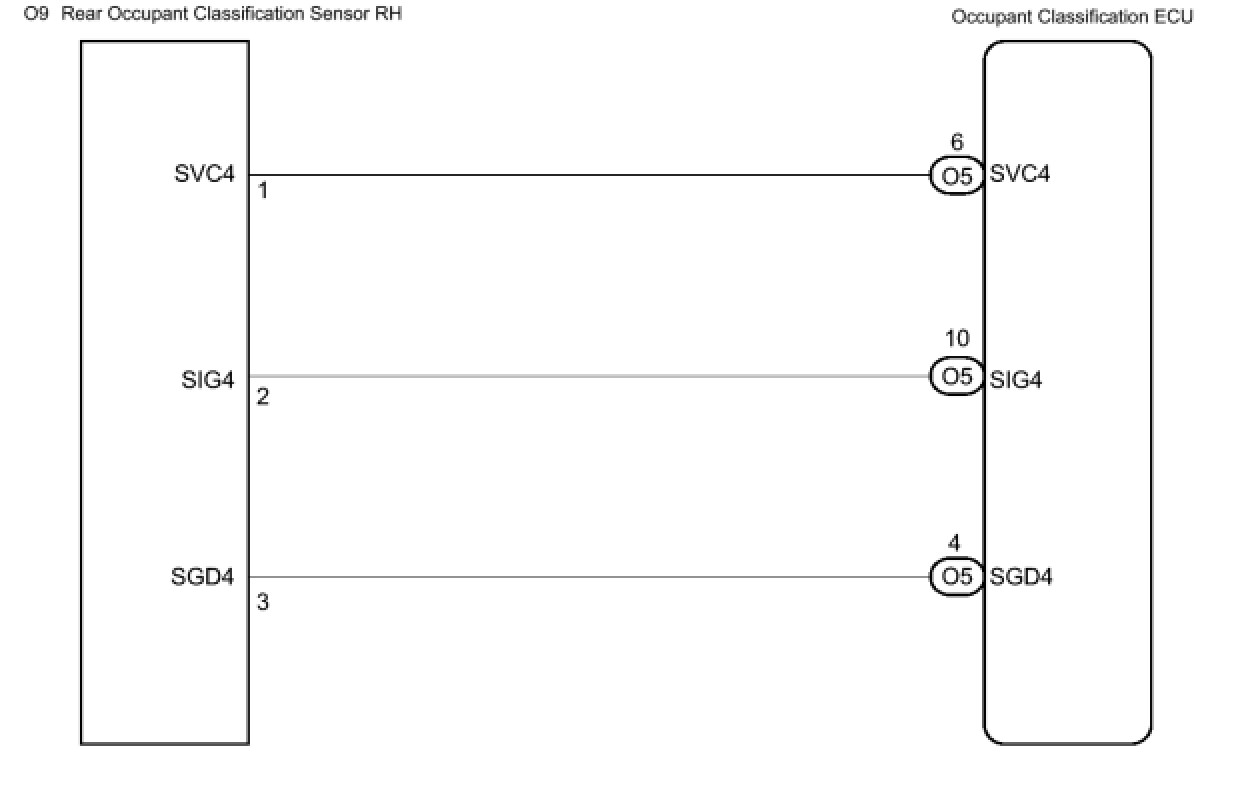

WIRING DIAGRAM

INSPECTION PROCEDURE
HINT:
- If troubleshooting (wire harness inspection) is difficult to perform, remove the front passenger seat installation bolts to see the under surface of the seat cushion.
- In the above case, hold the seat so that it does not fall down. Holding the seat for a long period of time may cause a problem, such as seat rail deformation. Hold the seat only as necessary.

PROCEDURE

1. CHECK DTC
(a) Turn the ignition switch to the ON position.
(b) Clear the DTCs stored in the memory Reading and Clearing Diagnostic Trouble Codes.
HINT: First clear the DTCs stored in the occupant classification ECU and then in the center airbag sensor assembly.
(c) Turn the ignition switch to the LOCK position.
(d) Turn the ignition switch to the ON position.
(e) Check the DTCs Reading and Clearing Diagnostic Trouble Codes.
OK:
DTC B1783 is not output.
HINT: Codes other than DTC B1783 may be output at this time, but they are not related to this check.

NG -- CHECK CONNECTION OF CONNECTORS
OK -- USE SIMULATION METHOD TO CHECK
2. CHECK CONNECTION OF CONNECTORS
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery.
(c) Check that the connectors are properly connected to the occupant classification ECU and the rear occupant classification sensor RH.
OK:
The connectors are properly connected.
NG -- CONNECT CONNECTORS PROPERLY, THEN GO TO STEP 1
OK -- Continue to next step.
3. CHECK FRONT SEAT WIRE RH (SHORT TO B+)

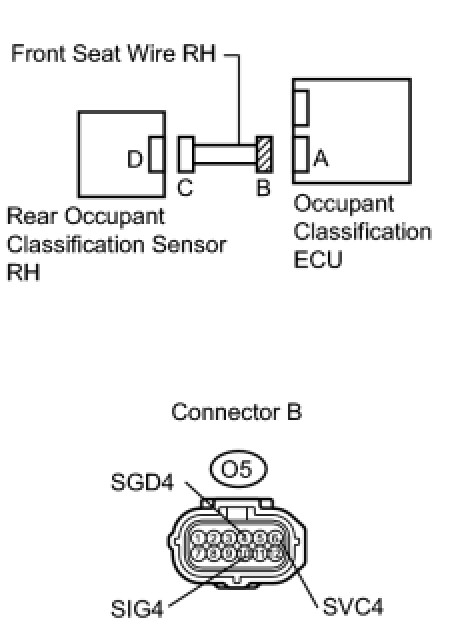

(a) Disconnect the connectors from the occupant classification ECU and the rear occupant classification sensor RH.
(b) Connect the negative (-) terminal cable to the battery.
(c) Turn the ignition switch to the ON position.

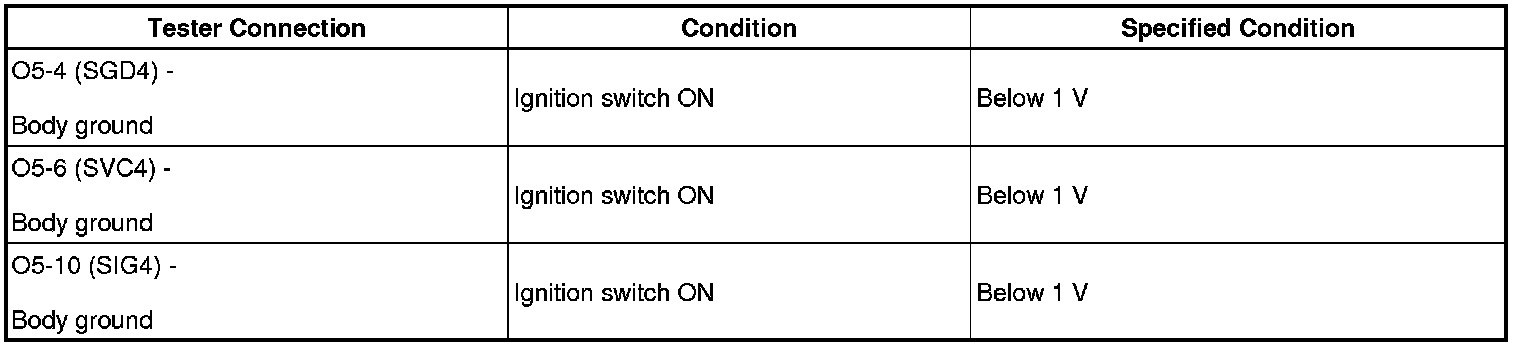

(d) Measure the voltage according to the value(s) in the table below.
Standard voltage:

NG -- REPLACE FRONT SEAT WIRE RH
OK -- Continue to next step.
4. CHECK FRONT SEAT WIRE RH (OPEN)

(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery.

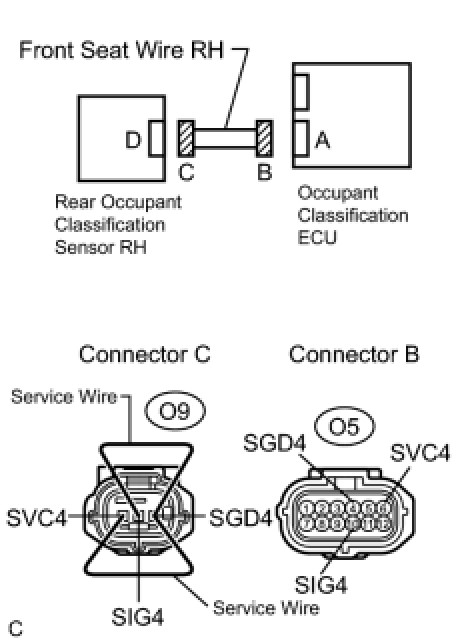

(c) Using a service wire, connect terminals 1 (SVC4) and 3 (SGD4), and connect terminals 2 (SIG4) and 3 (SGD4) of connector C.
NOTICE: Do not forcibly insert a service wire into the terminals of the connector when connecting.

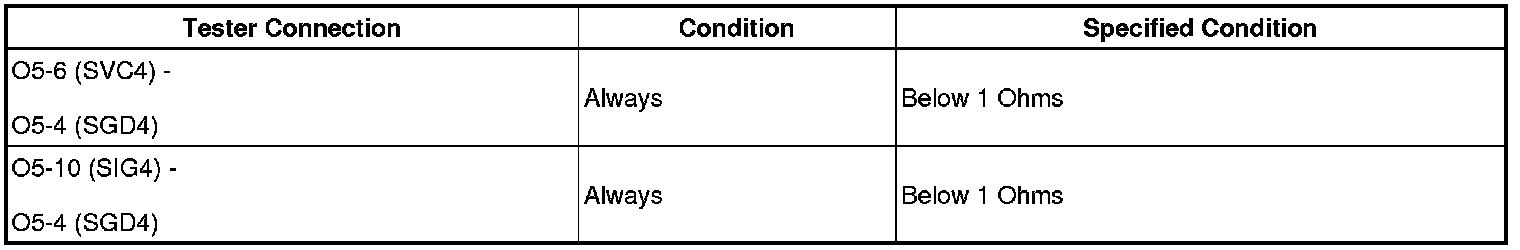

(d) Measure the resistance according to the value(s) in the table below.
Standard resistance:

NG -- REPLACE FRONT SEAT WIRE RH
OK -- Continue to next step.
5. CHECK FRONT SEAT WIRE RH (SHORT)

(a) Disconnect the service wire from connector C.

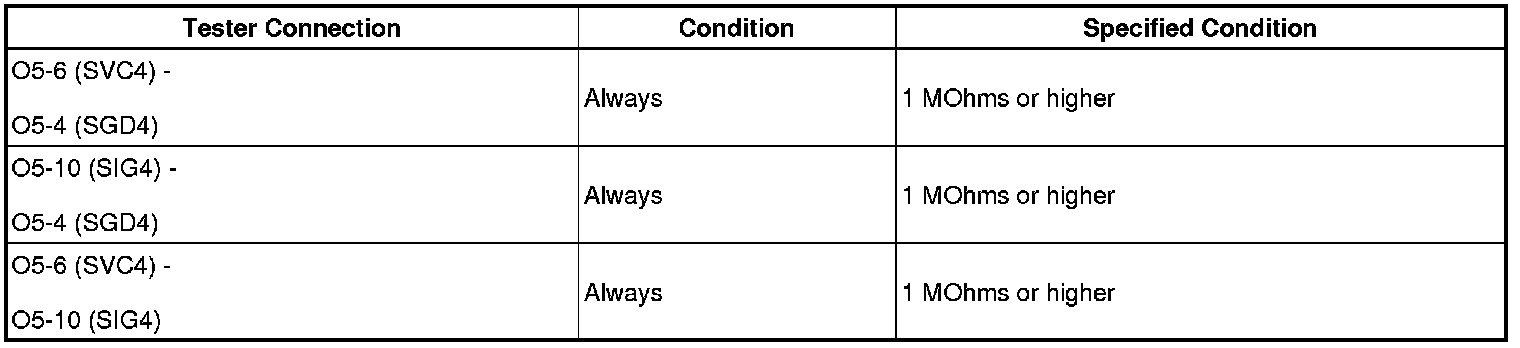

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:

NG -- REPLACE FRONT SEAT WIRE RH
OK -- Continue to next step.
6. CHECK FRONT SEAT WIRE RH (SHORT TO GROUND)

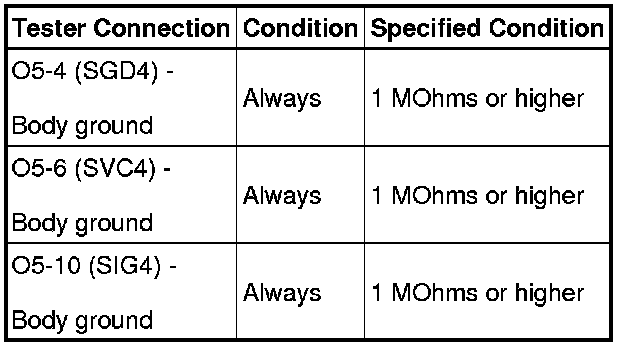

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:

NG -- REPLACE FRONT SEAT WIRE RH
OK -- Continue to next step.
7. CHECK DTC
(a) Connect the connectors to the occupant classification ECU and the rear occupant classification sensor RH.
(b) Connect the negative (-) terminal cable to the battery.
(c) Turn the ignition switch to the ON position.
(d) Clear the DTCs stored in the memory Reading and Clearing Diagnostic Trouble Codes.
HINT: First clear the DTCs stored in the occupant classification ECU and then in the center airbag sensor assembly.
(e) Turn the ignition switch to the LOCK position.
(f) Turn the ignition switch to the ON position.
(g) Check the DTCs Reading and Clearing Diagnostic Trouble Codes.
OK:
DTC B1783 is not output.
HINT: Codes other than DTC B1783 may be output at this time, but they are not related to this check.

NG -- REPLACE OCCUPANT CLASSIFICATION ECU
OK -- USE SIMULATION METHOD TO CHECK
8. REPLACE OCCUPANT CLASSIFICATION ECU
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery.
(c) Replace the occupant classification ECU Removal.
HINT: Perform the inspection using parts from a normal vehicle if possible.

NEXT -- Continue to next step.
9. PERFORM ZERO POINT CALIBRATION
(a) Connect the negative (-) terminal cable to the battery.
(b) Connect the Techstream to the DLC3.
(c) Turn the ignition switch to the ON position.
(d) Using the Techstream, perform "zero point calibration" Programming and Relearning.
OK:
"Zero Point Calibration is complete." is displayed.
NG -- REPLACE FRONT SEAT ASSEMBLY RH
OK -- Continue to next step.
10. PERFORM SENSITIVITY CHECK
(a) Using the Techstream, perform "sensitivity check" Programming and Relearning.
Standard values:
27 to 33 kg (59.52 to 72.75 lb)
NG -- REPLACE FRONT SEAT ASSEMBLY RH
OK -- Continue to next step.
11. CHECK DTC
(a) Connect the negative (-) terminal cable to the battery.
(b) Turn the ignition switch to the ON position.
(c) Clear the DTCs stored in the memory Reading and Clearing Diagnostic Trouble Codes.
HINT: First clear the DTCs stored in the occupant classification ECU and then in the center airbag sensor assembly.
(d) Turn the ignition switch to the LOCK position.
(e) Turn the ignition switch to the ON position.
(f) Check the DTCs Reading and Clearing Diagnostic Trouble Codes.
OK:
DTC B1783 is not output.
HINT: Codes other than DTC B1783 may be output at this time, but they are not related to this check.

NG -- REPLACE FRONT SEAT ASSEMBLY RH
OK -- END
12. REPLACE FRONT SEAT ASSEMBLY RH
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery.
(c) Replace the front seat assembly RH Removal.
NEXT -- Continue to next step.
13. PERFORM ZERO POINT CALIBRATION
(a) Connect the negative (-) terminal cable to the battery.
(b) Connect the Techstream to the DLC3.
(c) Turn the ignition switch to the ON position.
(d) Using the Techstream, perform "zero point calibration" Programming and Relearning.
OK:
"Zero Point Calibration is complete." is displayed.
NEXT -- Continue to next step.
14. PERFORM SENSITIVITY CHECK
(a) Using the Techstream, perform "sensitivity check" Programming and Relearning.
Standard values:
27 to 33 kg (59.52 to 72.75 lb)
NEXT -- END
