Removal

WIPER AND WASHER: WIPER SWITCH: REMOVAL

REMOVAL

1. REMOVE STEERING COLUMN LOWER COVER Removal

2. REMOVE STEERING COLUMN UPPER COVER Removal







3. REMOVE WIPER SWITCH
(a) Disconnect the 2 connectors.

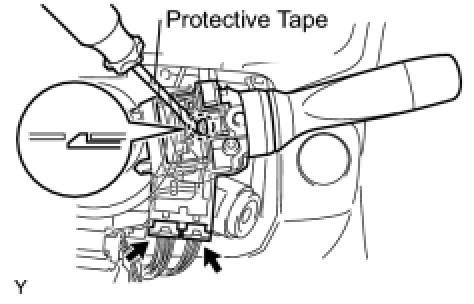

(b) Using a screwdriver with its tip wrapped in protective tape, disengage the claw and remove the wiper switch.
NOTE: Do not press the claw too hard, as it may be damaged.
