Wiper and Washer Systems: Description and Operation

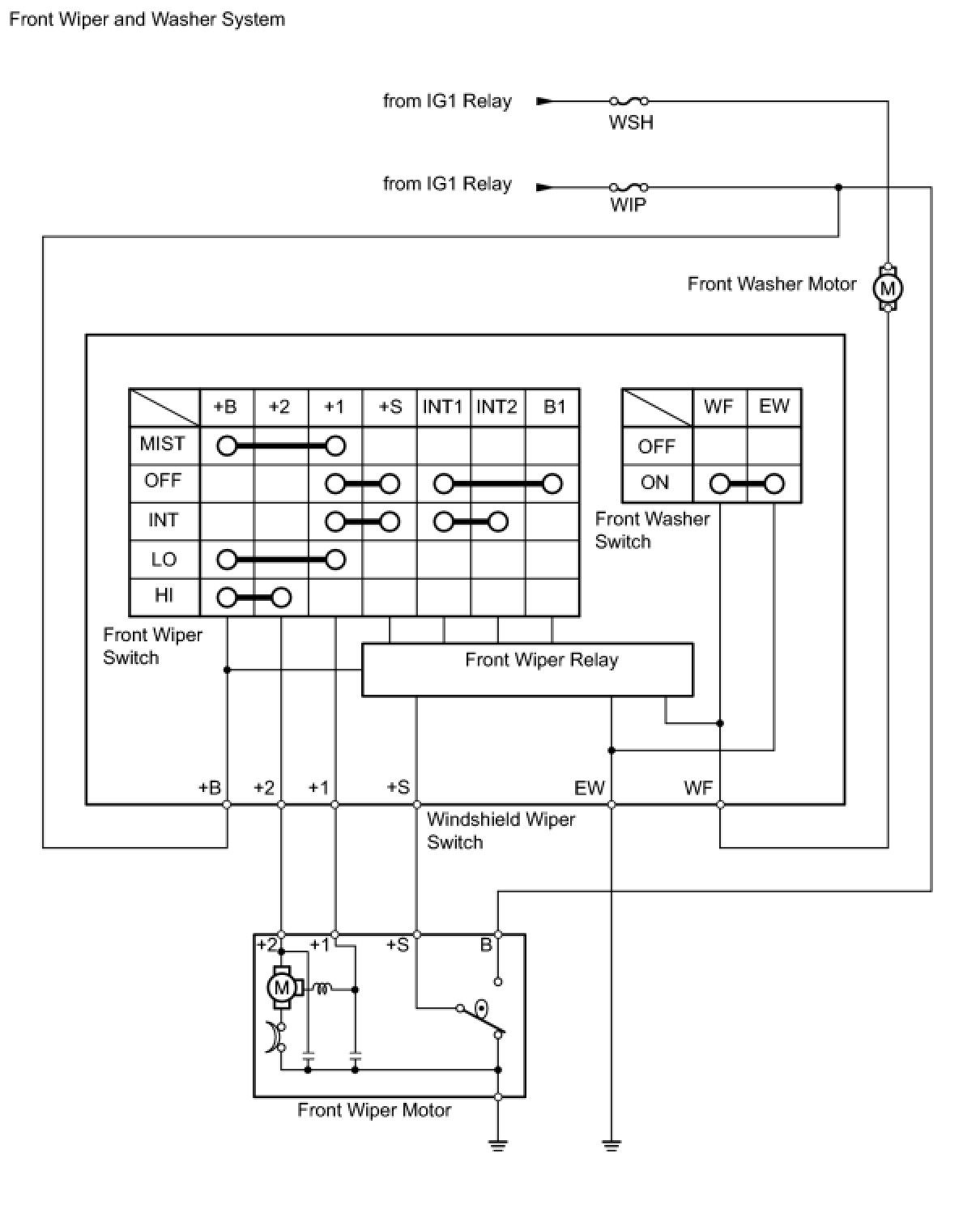

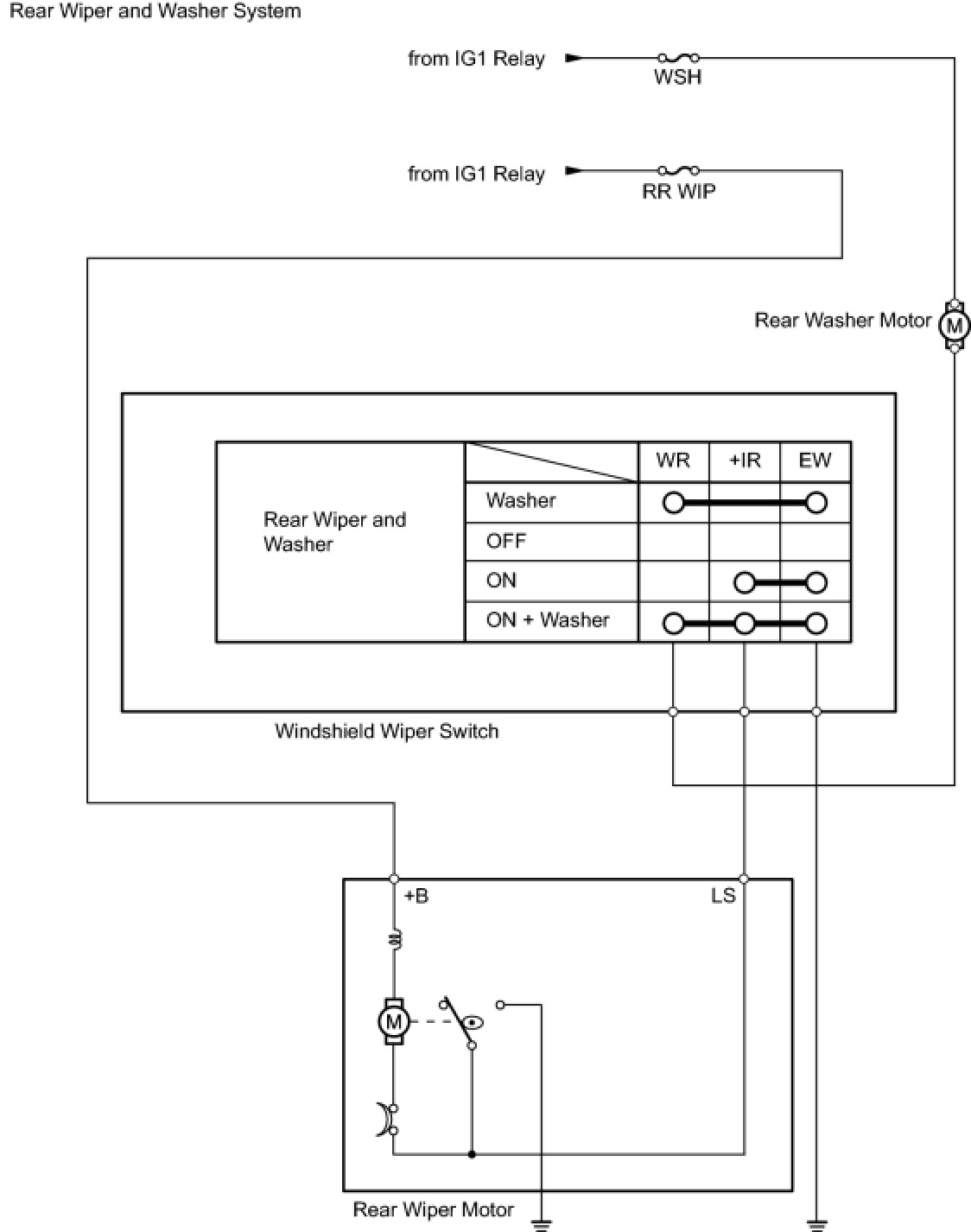

WIPER AND WASHER: WIPER AND WASHER SYSTEM: SYSTEM DIAGRAM
SYSTEM DIAGRAM
