Home >> Scion >> 2008 >> xD L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Window Regulator >> Service and Repair >> Components

Components

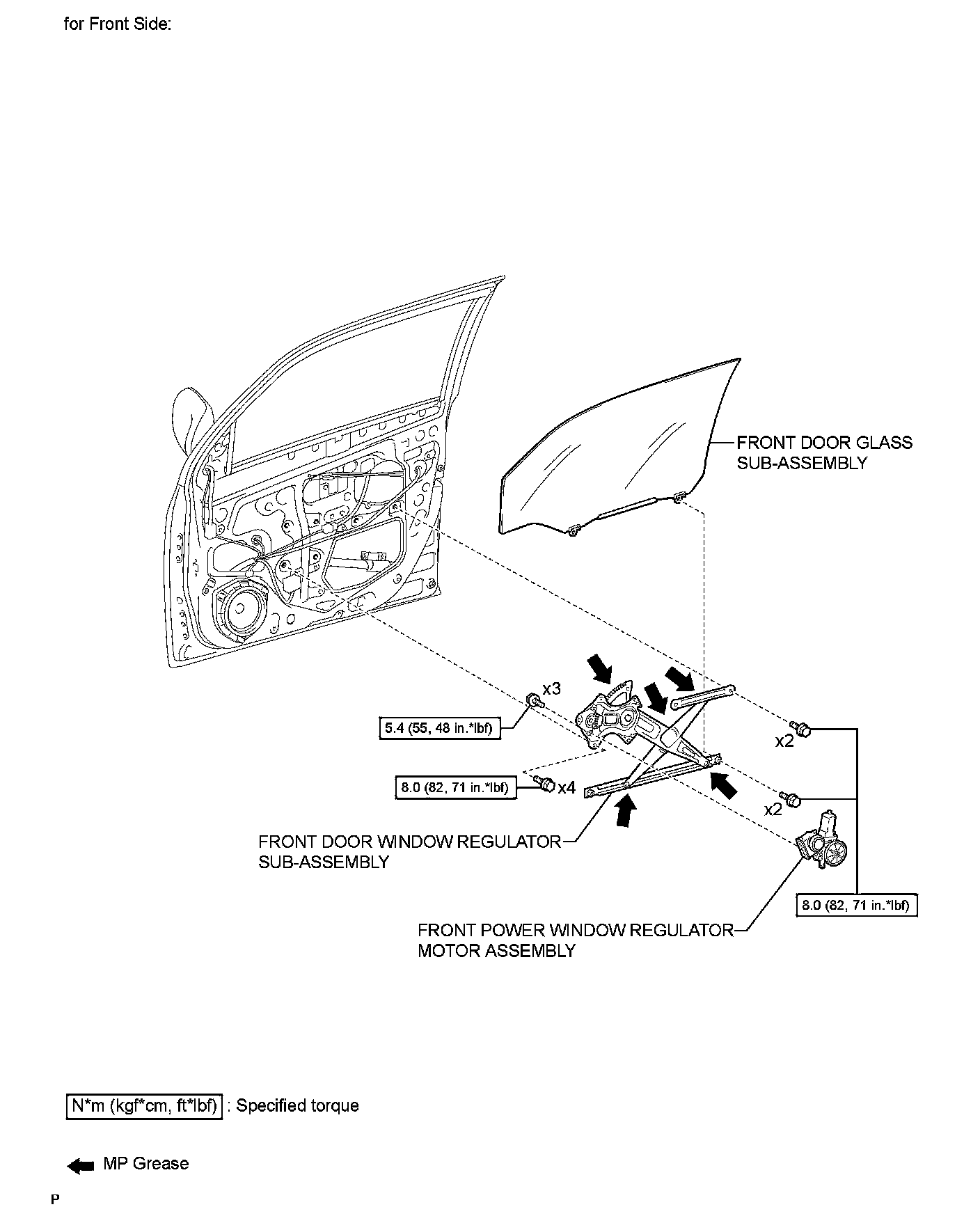

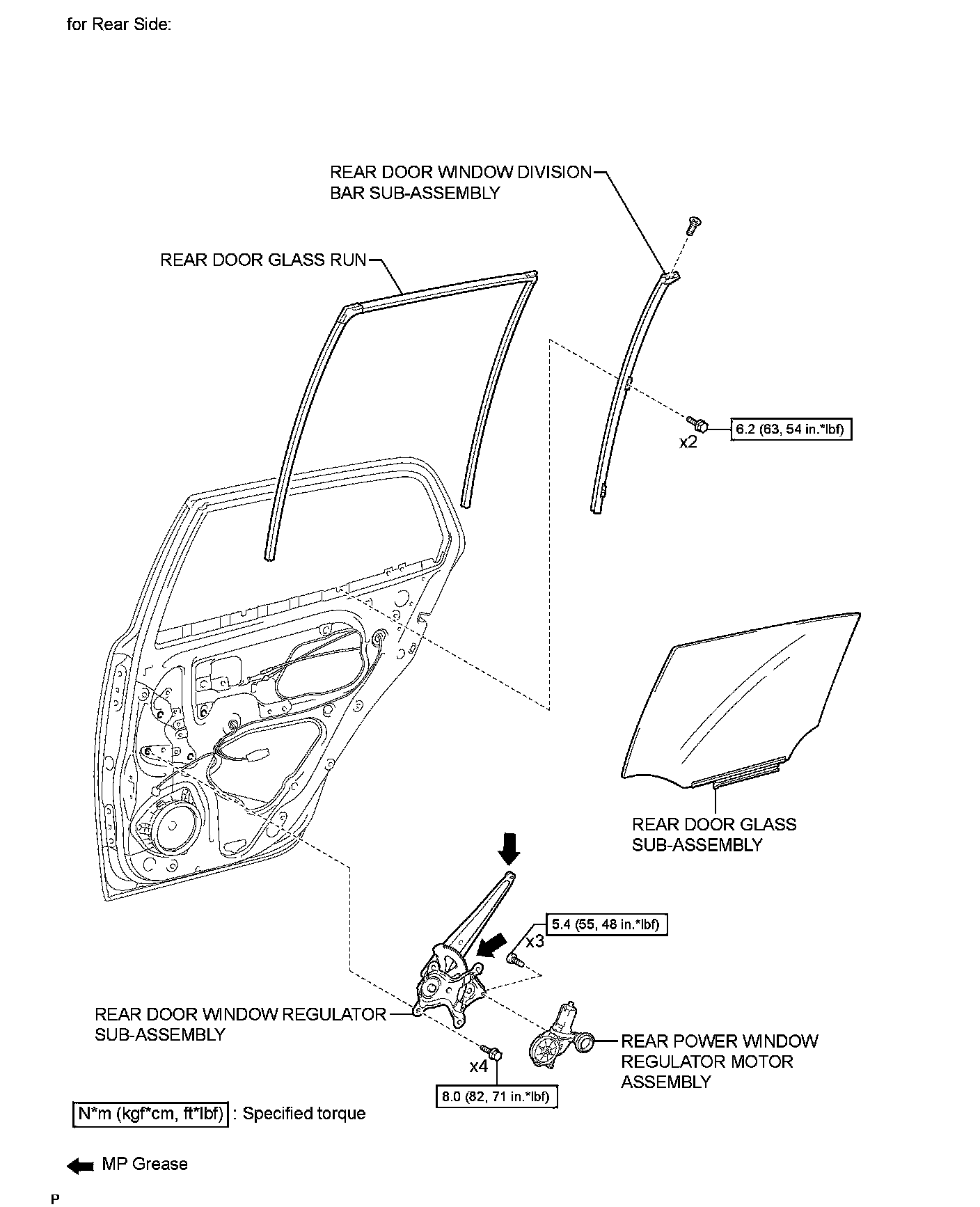

WINDSHIELD / WINDOWGLASS: POWER WINDOW REGULATOR MOTOR: COMPONENTS

COMPONENTS

ILLUSTRATION
