Front Passenger Side Power Window Switch

WINDSHIELD / WINDOWGLASS: FRONT PASSENGER SIDE POWER WINDOW SWITCH: INSPECTION

INSPECTION

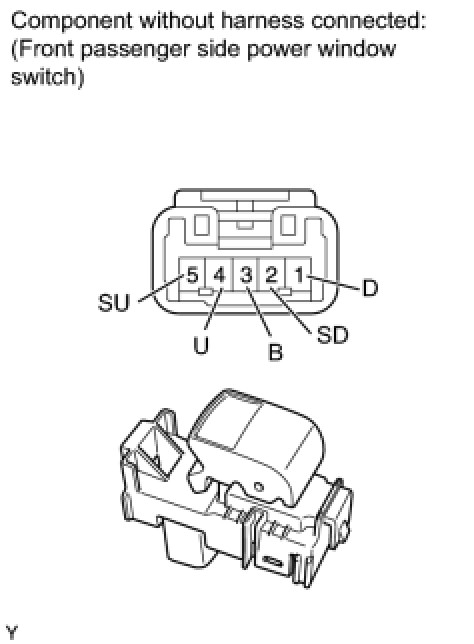

1. INSPECT FRONT PASSENGER SIDE POWER WINDOW SWITCH






(a) Check the resistance.
(1) Measure the resistance according to the value(s) in the table below.

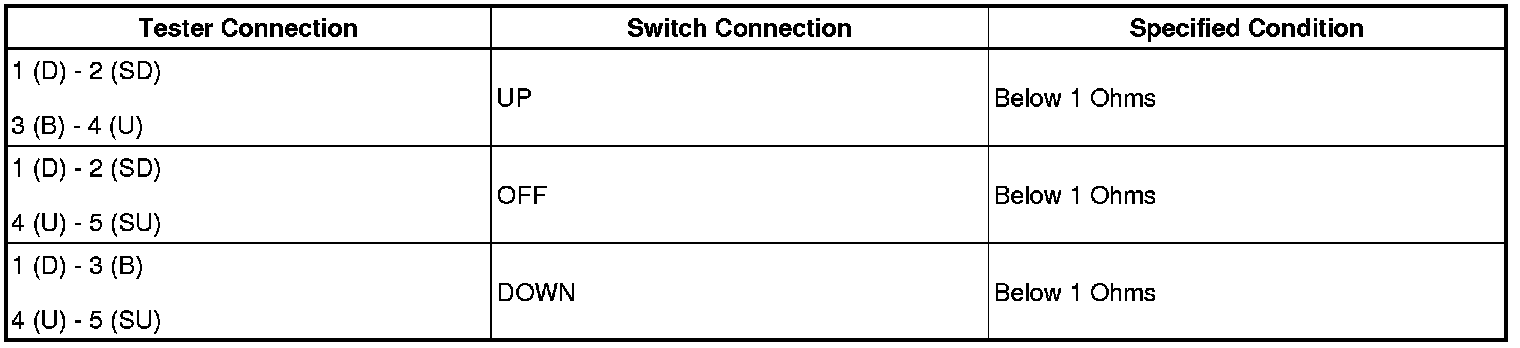

Standard resistance:






If the result is not as specified, replace the power window switch.
