C50 MANUAL TRANSAXLE: SHIFT LEVER ASSEMBLY: REMOVAL

REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

2. REMOVE UPPER CONSOLE PANEL

3. REMOVE CONSOLE BOX REAR COVER

4. REMOVE CONSOLE BOX CARPET

5. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY

6. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY





(a) Remove the clip and disconnect the control select cable from the shift lever.
(b) Disconnect the control shift cable from the shift lever.

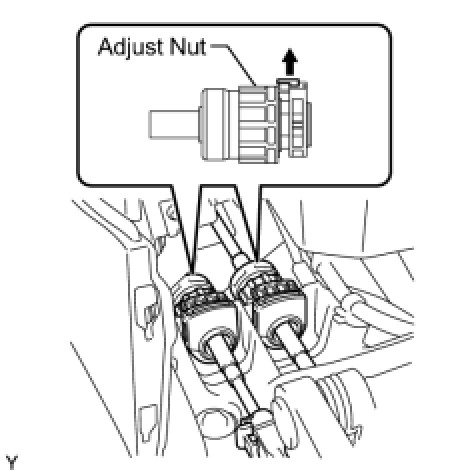

(c) Turn the adjust nut 180°clockwise. While holding the adjust nut, separate the control cable assembly.






7. REMOVE FLOOR SHIFT SHIFT LEVER ASSEMBLY
(a) Remove the 4 bolts and remove the shift lever.
