Installation

C50 MANUAL TRANSAXLE: SHIFT LEVER ASSEMBLY: INSTALLATION

INSTALLATION





1. INSTALL FLOOR SHIFT SHIFT LEVER ASSEMBLY

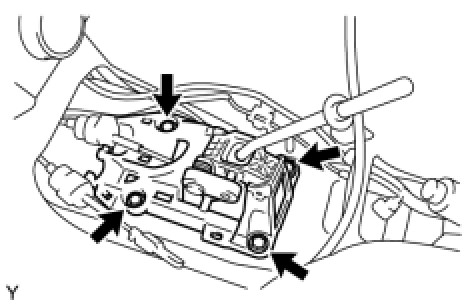

(a) Install the shift lever with the 4 bolts.
Torque: 12 Nm (122 kgf-cm, 9 ft-lbf)
2. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY





(a) Install the control cable assembly onto the shift lever retainer.
NOTICE:
- Install the cable with the protruding portion of the cable outer facing upward.
- After installing, check that the lock of the cable outer is protruding beyond portion A, as shown in the illustration.

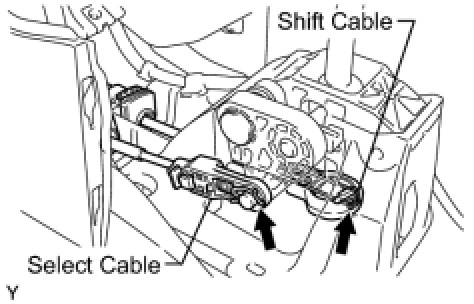

(b) Connect the control shift cable to the shift lever.
(c) Connect the control select cable to the shift lever with the clip.
NOTICE:
- Connect the control select cable so that the adjusting mechanism lock of the control select cable is installed on the left side of the vehicle.
- Insert the clip in the direction shown in the illustration.

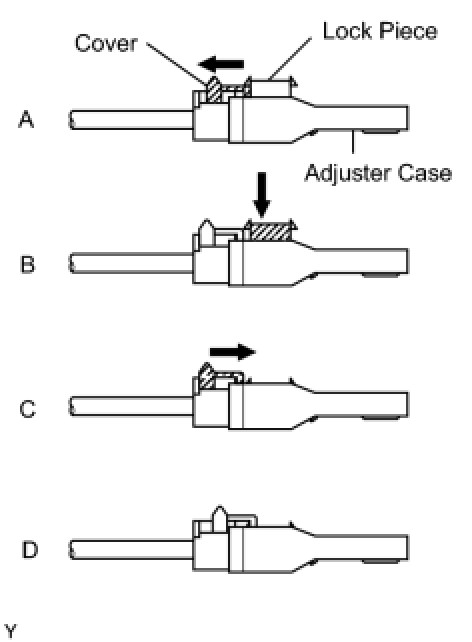

(d) Adjust the length of the control select cable.
(1) Slide the adjuster case cover in the direction shown in the illustration (Illustration A).
(2) Gently pull the cable rod toward the rear of the vehicle by hand to pull the cable taut.
(3) Press the lock piece into the adjuster case and lock it (Illustration B).
(4) Slide the cover in the direction shown in the illustration (Illustration C).
NOTE: Slide the cover past the protrusion of the lock piece (Illustration D).

3. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY

4. INSTALL CONSOLE BOX CARPET

5. INSTALL CONSOLE BOX REAR COVER

6. INSTALL UPPER CONSOLE PANEL

7. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
