C50 MANUAL TRANSAXLE: DIFFERENTIAL OIL SEAL: INSTALLATION

INSTALLATION





1. INSTALL TRANSMISSION CASE OIL SEAL
(a) Coat the lip of a new oil seal with MP grease.

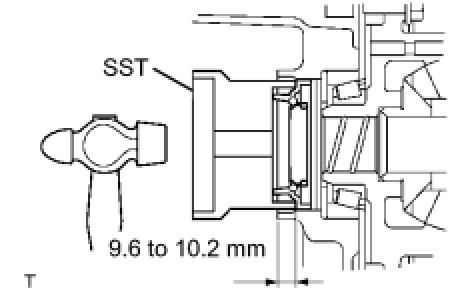

(b) Using SST and a hammer, install the new oil seal.
SST: 09309-37010
Drive in depth:
9.6 to 10.2 mm (0.378 to 0.402 in.)
NOTE: Do not damage the oil seal lip.





2. INSTALL TRANSAXLE CASE OIL SEAL
(a) Coat the lip of a new oil seal with MP grease.
(b) Using SST and a hammer, install the new oil seal.
SST: 09710-26011
09710-05061
Drive in depth:
1.6 to 2.2 mm (0.063 to 0.087 in.)
NOTE: Do not damage the oil seal lip.

3. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH Installation

4. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH Installation

5. INSTALL FRONT AXLE ASSEMBLY LH Installation

6. INSTALL FRONT AXLE ASSEMBLY RH
HINT: The installation procedure for the RH side is the same as that for the LH side.

7. INSTALL FRONT STABILIZER LINK ASSEMBLY LH Installation

8. INSTALL FRONT STABILIZER LINK ASSEMBLY RH
HINT: The installation procedure for the RH side is the same as that for the LH side.

9. INSTALL TIE ROD END SUB-ASSEMBLY LH Installation

10. INSTALL TIE ROD END SUB-ASSEMBLY RH
HINT: The installation procedure for the RH side is the same as that for the LH side.

11. INSTALL FRONT LOWER SUSPENSION ARM SUB-ASSEMBLY LH Installation

12. INSTALL FRONT LOWER SUSPENSION ARM SUB-ASSEMBLY RH
HINT: The installation procedure for the RH side is the same as that for the LH side.

13. INSTALL FRONT SPEED SENSOR LH Installation

14. INSTALL FRONT SPEED SENSOR RH
HINT: The installation procedure for the RH side is the same as that for the LH side.

15. INSTALL FRONT AXLE HUB NUT LH Installation

16. INSTALL FRONT AXLE HUB NUT RH
HINT: The installation procedure for the RH side is the same as that for the LH side.

17. INSTALL FRONT WHEELS
18. ADD TRANSAXLE OIL
19. INSPECT AND ADJUST TRANSAXLE OIL Testing and Inspection

20. INSPECT ABS SPEED SENSOR SIGNAL

21. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

22. INSPECT FOR TRANSAXLE OIL LEAK
