Scion
>>
2008
>>
xD L4-1.8L (2ZR-FE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Clutch
>>
Service and Repair
>>
Removal and Replacement
>>
Components
Components

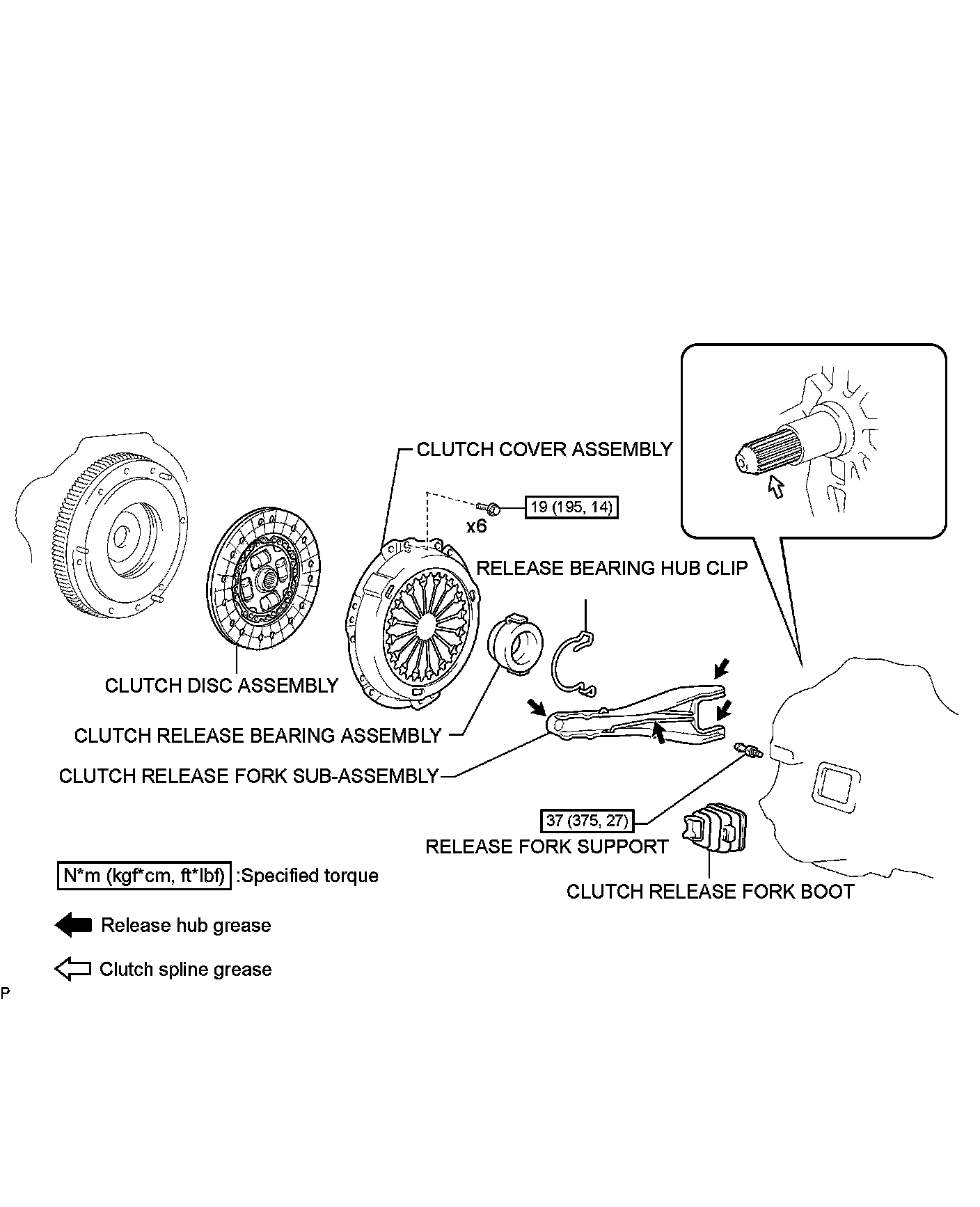

CLUTCH: CLUTCH UNIT: COMPONENTS
COMPONENTS
ILLUSTRATION
