Disassembly

U341E AUTOMATIC TRANSAXLE: VALVE BODY: DISASSEMBLY

DISASSEMBLY

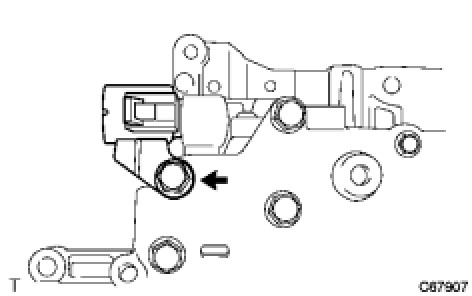

1. REMOVE SHIFT SOLENOID VALVE S1






(a) Remove the bolt and pull out the shift solenoid valve S1.

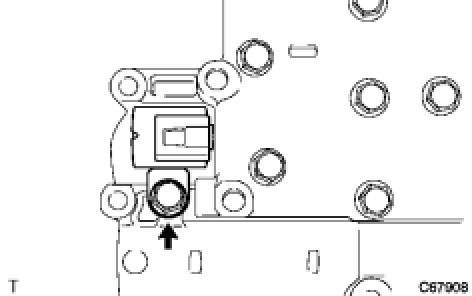

2. REMOVE SHIFT SOLENOID VALVE S2






(a) Remove the bolt and pull out the shift solenoid valve S2.
3. REMOVE SHIFT SOLENOID VALVE SL






(a) Remove the bolt and pull out the shift solenoid valve SL.

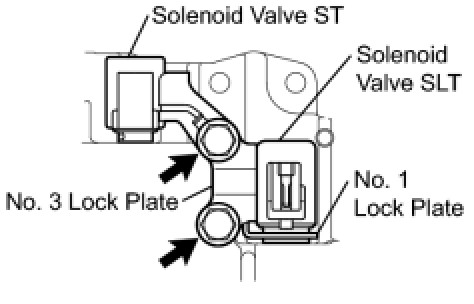

4. REMOVE NO. 3 SOLENOID LOCK PLATE






(a) Remove the 2 bolts and No. 3 solenoid lock plate from the valve body.
(b) Pull out the shift solenoid valve ST from the valve body.
(c) Remove the No. 1 solenoid lock plate from the shift solenoid valve SLT.
(d) Pull out the shift solenoid valve SLT from the valve body.

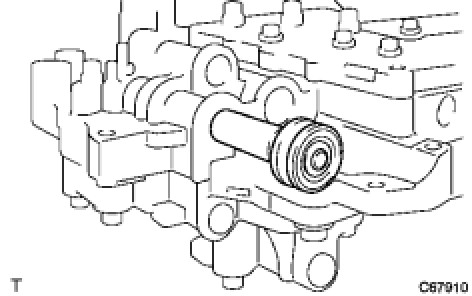

5. REMOVE MANUAL VALVE






(a) Remove the manual valve from the valve body.
