Inspection

U341E AUTOMATIC TRANSAXLE: SHIFT LEVER: INSPECTION

INSPECTION

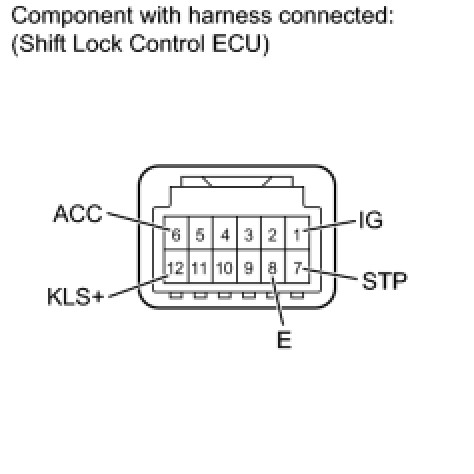

1. INSPECT SHIFT LOCK CONTROL ECU SUB-ASSEMBLY

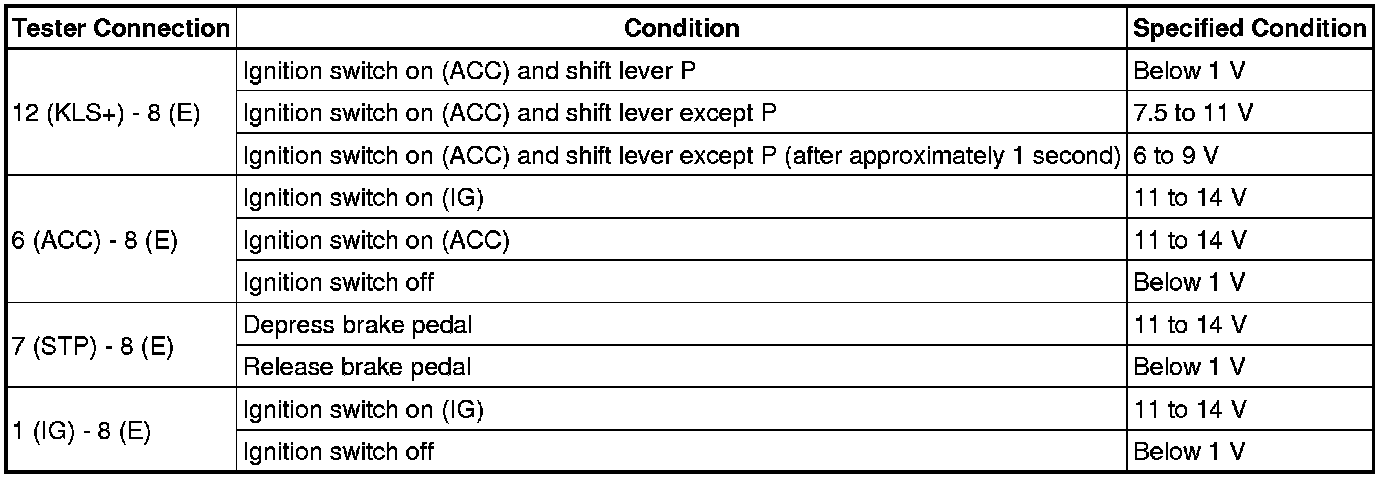

(a) Measure the voltage according to the value(s) in the table below.
Standard voltage:

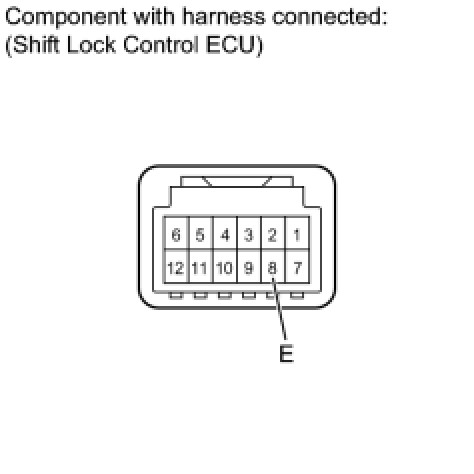

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, replace the shift lock control unit assembly.
