U341E AUTOMATIC TRANSAXLE: SHIFT LEVER: DISASSEMBLY

DISASSEMBLY

1. REMOVE UPPER POSITION INDICATOR HOUSING

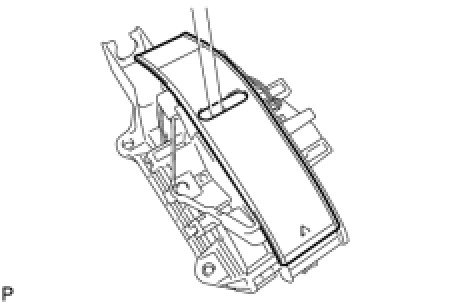

(a) Disengage the 4 claws using a screwdriver and remove the upper position indicator housing from the shift lock control unit assembly.
2. REMOVE NO. 2 CONTROL POSITION INDICATOR PLATE






(a) Disengage the claw using a screwdriver and remove the No. 2 control position indicator plate from the upper position indicator housing.
3. REMOVE SHIFT LOCK RELEASE BUTTON COVER
(a) Remove the shift lock release button cover from the upper position indicator housing.
4. REMOVE POSITION INDICATOR SLIDE COVER






(a) Remove the position indicator slide cover from the shift lock control unit assembly.
5. REMOVE NO. 2 POSITION INDICATOR SLIDE COVER






(a) Remove the No. 2 position indicator slide cover from the position indicator slide cover.
6. REMOVE SHIFT LOCK RELEASE BUTTON






(a) Remove the shift lock release button and shift lock release spring from the shift lock control unit assembly.
7. REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY






(a) Remove the indicator light wire sub-assembly from the shift lock control unit assembly.
