U341E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE UNIT: DISASSEMBLY

DISASSEMBLY

1. REMOVE SPEEDOMETER DRIVEN HOLE COVER SUB-ASSEMBLY

(a) Remove the bolt and speedometer driven hole cover sub-assembly from the transaxle housing.
(b) Remove the O-ring from the speedometer driven hole cover sub-assembly.

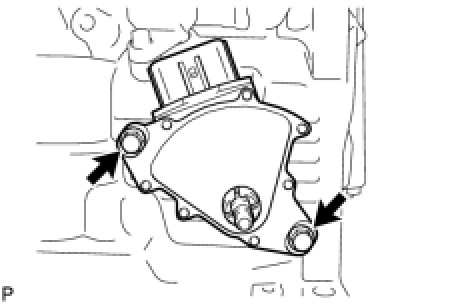

2. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

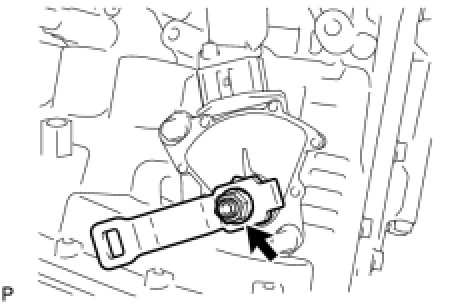

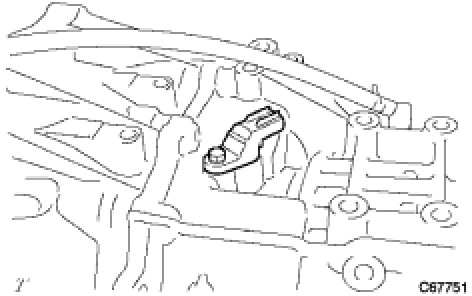

(a) Remove the nut, washer and control shaft lever.

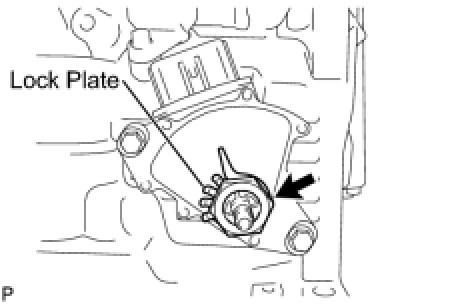

(b) Pry out the lock plate and remove the manual valve shaft nut.

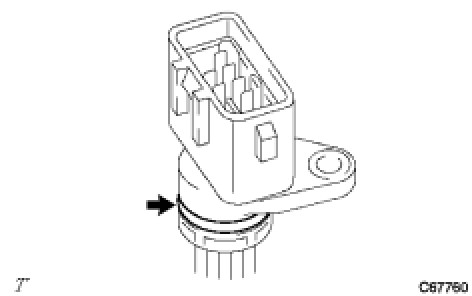

(a) Remove the bolt and remove the speed sensor from the transaxle case.

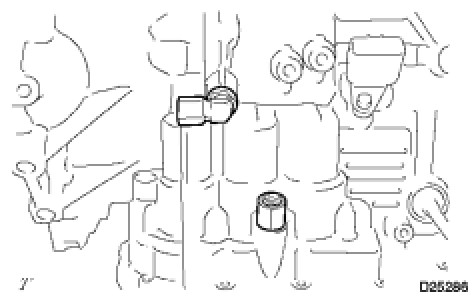

4. REMOVE OIL COOLER TUBE UNION

(a) Remove the 2 oil cooler tube unions from the transaxle case.
(b) Remove the 2 O-rings from the 2 oil cooler tube unions.

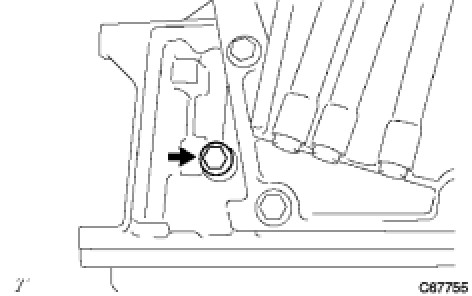

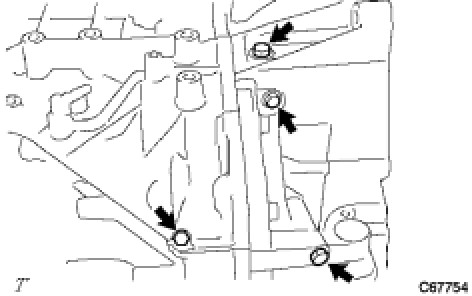

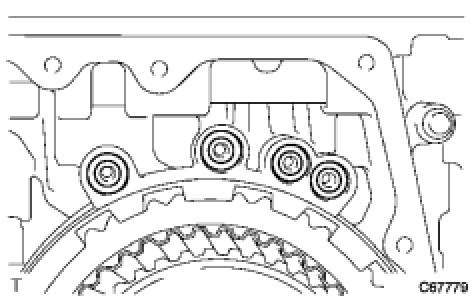

5. REMOVE NO. 1 TRANSAXLE CASE PLUG

(a) Remove the 4 No. 1 transaxle case plugs from the transaxle housing and transaxle case.

(b) Remove the No. 1 transaxle case plug from the transaxle case.
(c) Remove the O-rings from the No. 1 transaxle case plugs.

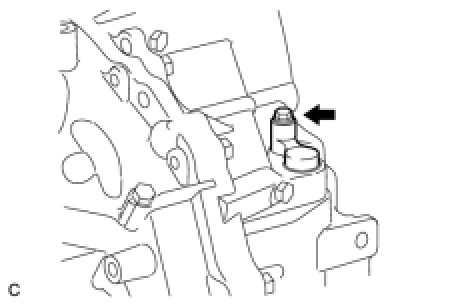

6. REMOVE BREATHER PLUG HOSE

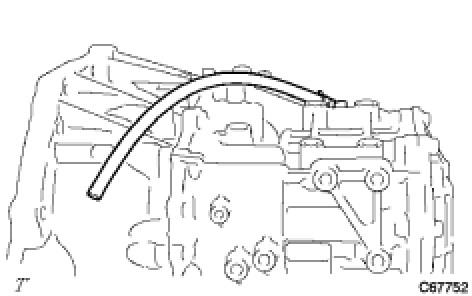

(a) Remove the breather plug hose from the breather plug.

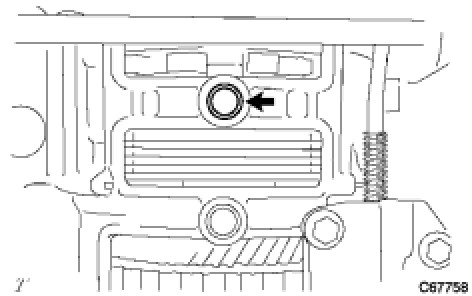

7. REMOVE BREATHER PLUG
(a) Remove the breather plug from the transaxle case.

8. FIX AUTOMATIC TRANSAXLE ASSEMBLY

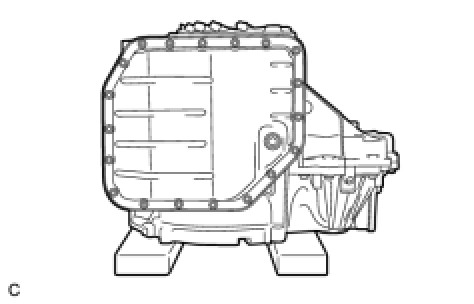

(a) Place the transaxle onto wooden blocks.

9. REMOVE AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY

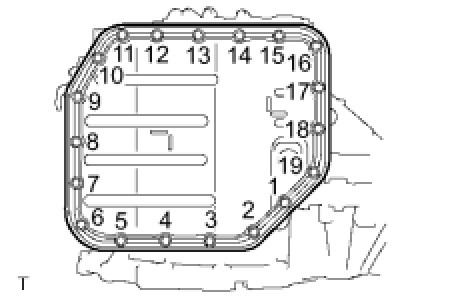

(a) Remove the 19 bolts and remove the oil pan and oil pan gasket.

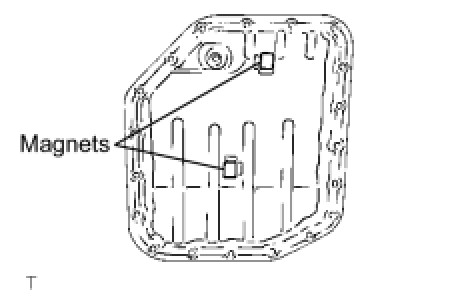

(b) Remove the 2 oil cleaner magnets from the oil pan.
(c) Examine the particles in the pan.
(1) Collect any steel chips with the removed magnets.
Carefully look at the foreign matter and particles in the pan and on the magnets to predict the type of wear which might be found in the transaxle.
Steel (magnetic): bearing, gear and clutch plate wear
Brass (non-magnetic): bearing wear

10. REMOVE VALVE BODY OIL STRAINER ASSEMBLY

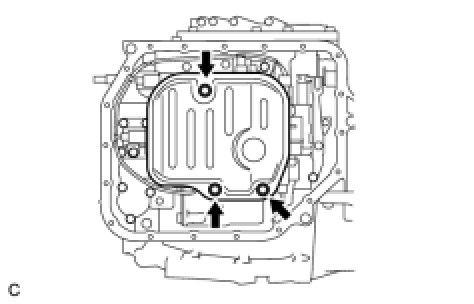

(a) Remove the 3 bolts and remove the oil strainer assembly.

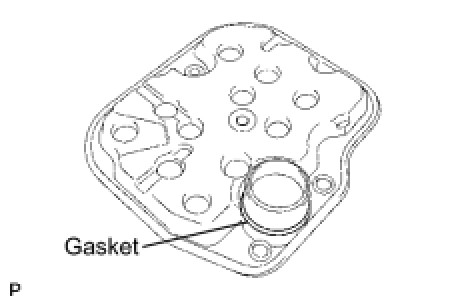

(b) Remove the oil strainer gasket from the oil strainer.

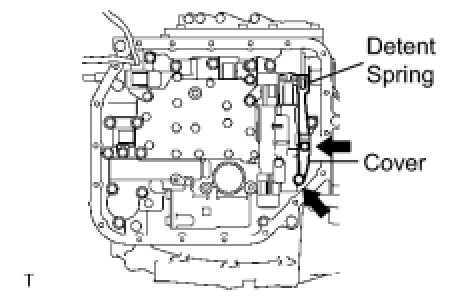

11. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

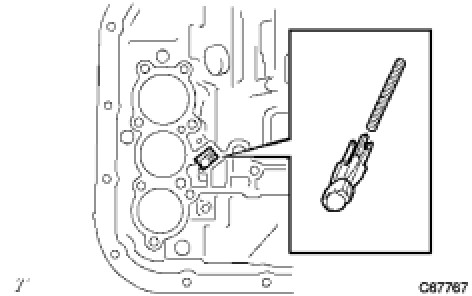

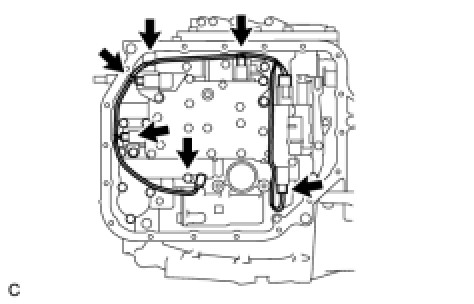

(a) Disconnect the 5 solenoid connectors.

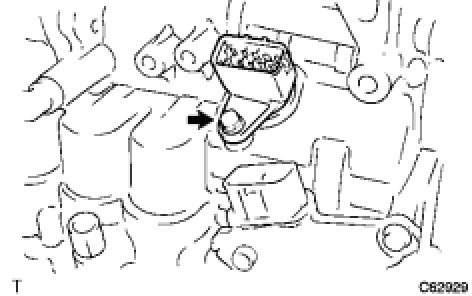

(b) Remove the bolt and lock plate and remove the ATF temperature sensor.

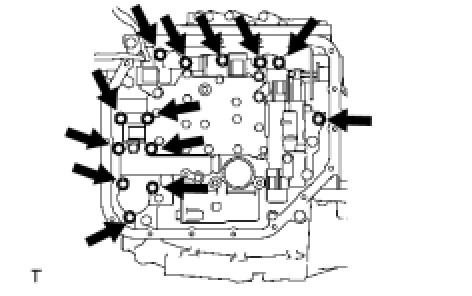

(d) Remove the 13 bolts and the valve body assembly from the transaxle case.

12. REMOVE TRANSMISSION WIRE

(a) Remove the bolt and the transmission wire from the transaxle case.

(b) Remove the O-ring from the transmission wire.

13. REMOVE TRANSAXLE CASE 2ND BRAKE GASKET

(a) Remove the transaxle case 2nd brake gasket from the transaxle case.

14. REMOVE TRANSAXLE CASE GASKET

(a) Remove the transaxle case gasket from the transaxle case.

15. REMOVE BRAKE DRUM GASKET

(a) Remove the brake drum gasket from the transaxle case.

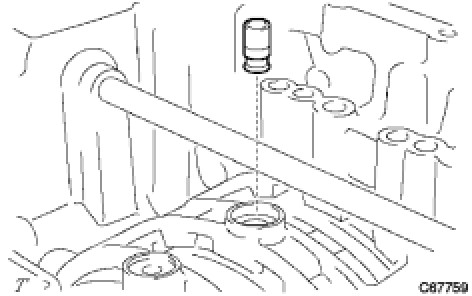

16. REMOVE CHECK BALL BODY

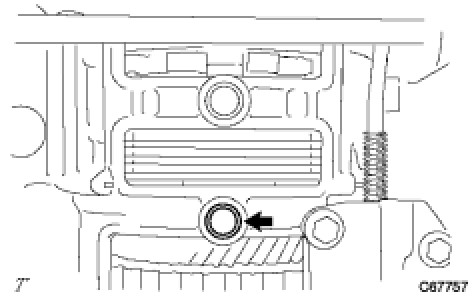

(a) Remove the check ball body and spring from the transaxle case.

17. REMOVE B-2 ACCUMULATOR PISTON

(a) Apply compressed air (392 kPa, 4.0 kgf/cm2, 57 psi) to the oil hole and remove the B-2 accumulator piston and spring.
NOTICE:
- Blowing the air may cause the piston to jump out. When removing the piston, hold it by hand using a piece of cloth.
- Do not splash ATF with the compressed air.

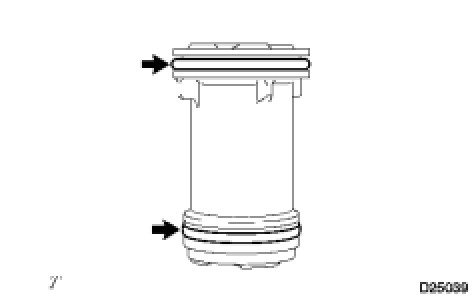

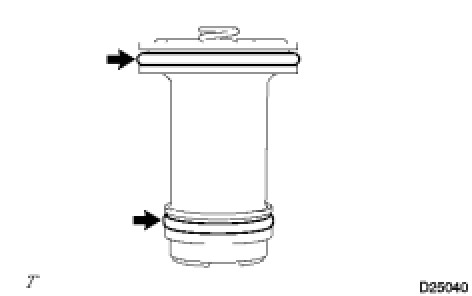

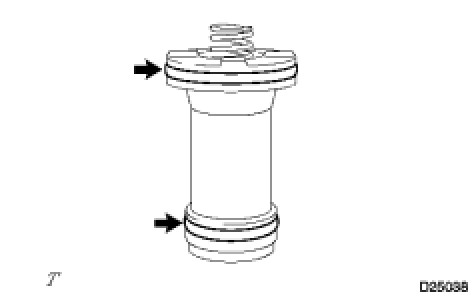

(b) Remove the 2 O-rings from the B-2 accumulator piston.

18. REMOVE C-3 ACCUMULATOR PISTON

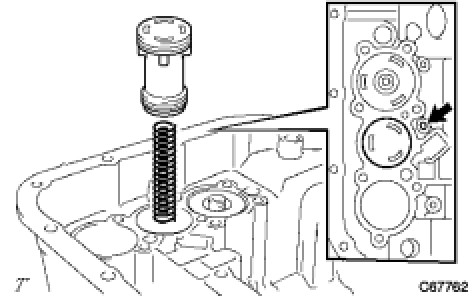

(a) Apply compressed air (392 kPa, 4.0 kgf/cm2, 57 psi) to the oil hole and remove the C-3 accumulator piston and spring.

NOTICE:
- Blowing the air may cause the piston to jump out. When removing the piston, hold it with your hand using a piece of cloth.
- Do not splash ATF with the compressed air.

(b) Remove the 2 O-rings from the C-3 accumulator piston.

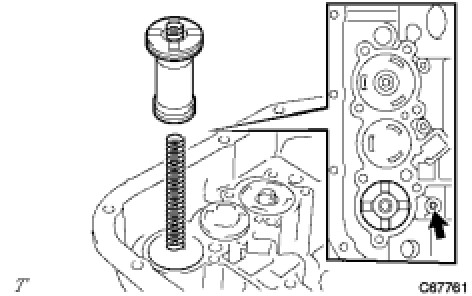

19. REMOVE C-2 ACCUMULATOR PISTON

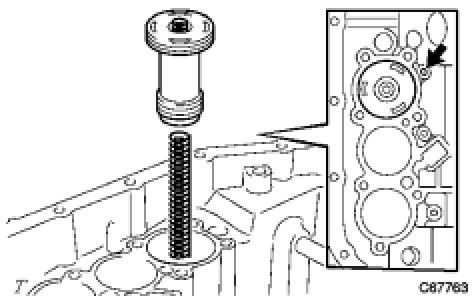

(a) Apply compressed air (392 kPa, 4.0 kgf/cm2, 57 psi) to the oil hole and remove the C-2 accumulator piston and the spring.
NOTICE:
- Blowing the air may cause the piston to jump out. When removing the piston, hold it by hand using a shop rag or piece of cloth.
- Do not splash ATF with the compressed air.

(b) Remove the 2 O-rings from the C-2 accumulator piston.

20. REMOVE TRANSAXLE HOUSING

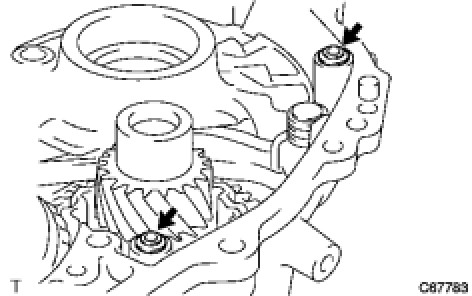

(a) Remove the 14 bolts.
(b) Tap around the circumference of the transaxle housing with a plastic hammer to remove the transaxle housing from the transaxle case.

NOTICE:The differential gear assembly may be accidentally removed when the transaxle housing is removed.

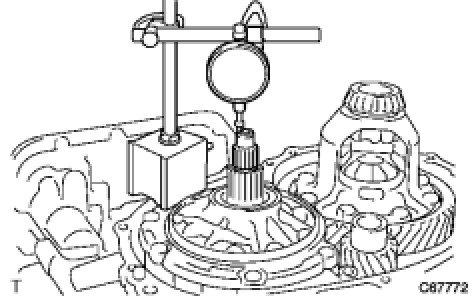

21. INSPECT INPUT SHAFT END PLAY

(a) Measure the end play in the axial direction.
End play:
0.374 to 1.292 mm (0.0147 to 0.0509 in.)
If the end play is not as specified, replace the stator shaft thrust needle roller bearing and the forward clutch hub thrust needle roller bearing.

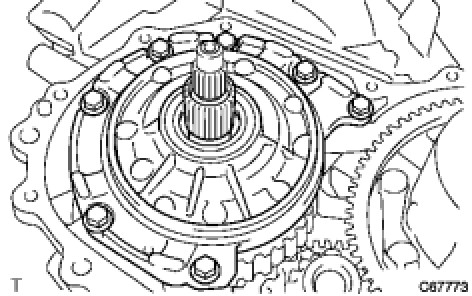

22. REMOVE OIL PUMP ASSEMBLY

(a) Remove the 7 bolts and the oil pump assembly from the transaxle case.

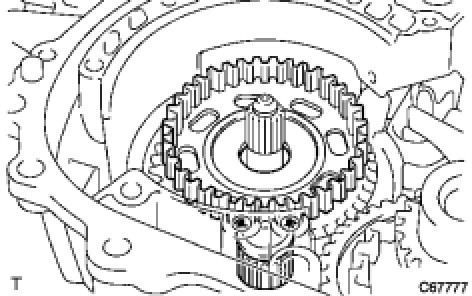

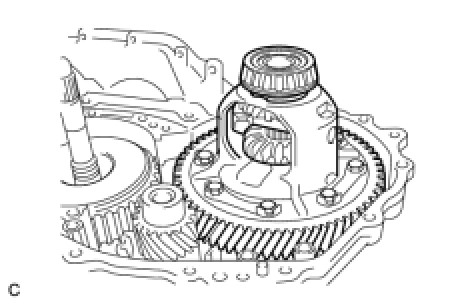

23. REMOVE DIFFERENTIAL GEAR ASSEMBLY

(a) Remove the differential gear assembly from the transaxle case.

24. REMOVE OVERDRIVE BRAKE GASKET

(a) Using a screwdriver, remove the 2 overdrive brake gaskets from the transaxle case.

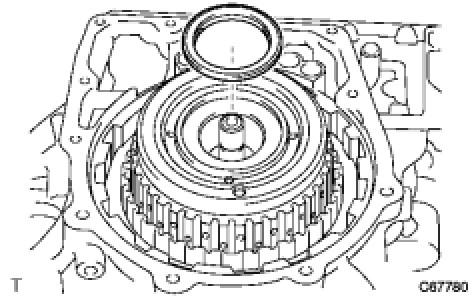

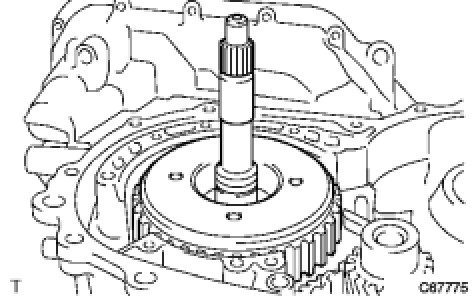

25. REMOVE INPUT SHAFT ASSEMBLY

(a) Remove the input shaft assembly from the transaxle case.

26. REMOVE STATOR SHAFT THRUST NEEDLE ROLLER BEARING

(a) Remove the thrust needle roller bearing from the input shaft.

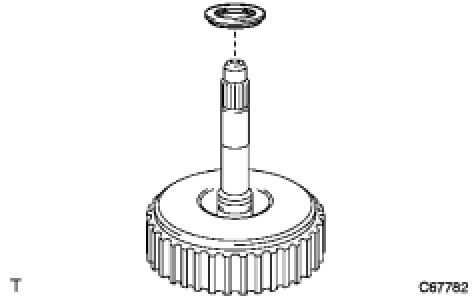

27. REMOVE FORWARD CLUTCH HUB THRUST NEEDLE ROLLER BEARING

(a) Remove the thrust needle roller bearing from the forward clutch hub.

28. INSPECT INTERMEDIATE SHAFT ASSEMBLY

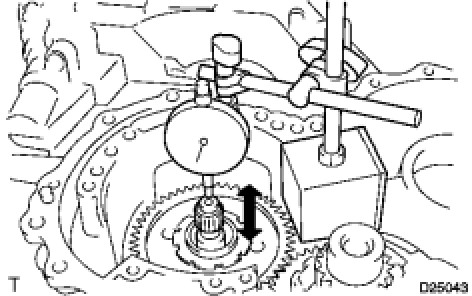

(a) Using a dial indicator, measure the intermediate shaft end play.
Standard clearance:
0.204 to 0.966 mm (0.008 to 0.038 in.)
If the end play is not as specified, select and replace the rear clutch drum thrust needle roller bearing.

29. REMOVE FORWARD CLUTCH HUB SUB-ASSEMBLY

(a) Remove the forward clutch hub from the transaxle case.

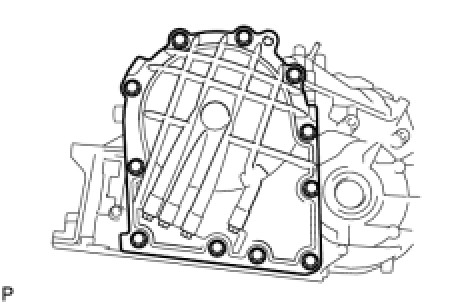

30. REMOVE REAR TRANSAXLE COVER ASSEMBLY

(a) Remove the 11 bolts.
(b) Tap around the circumference of the rear transaxle cover with a plastic hammer to remove the rear transaxle cover from the transaxle case.

31. REMOVE TRANSAXLE CASE GASKET

(a) Remove the 4 transaxle case gaskets.

32. REMOVE REAR CLUTCH DRUM THRUST NEEDLE ROLLER BEARING

(a) Using a magnetic finger, remove the thrust needle roller bearing.

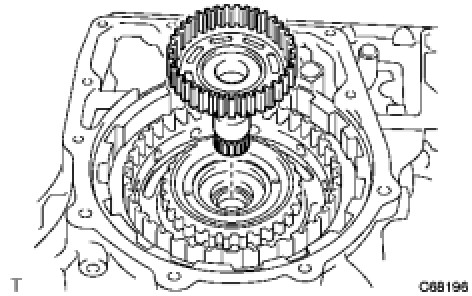

33. REMOVE INTERMEDIATE SHAFT ASSEMBLY

(a) Remove the intermediate shaft assembly from the transaxle case.

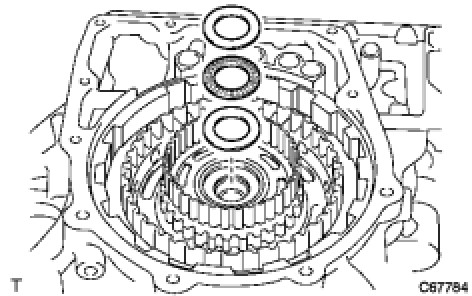

34. REMOVE 2ND COAST AND OVERDRIVE BRAKE DISC

(a) Remove the flange, 2 discs and 2 No. 2 flanges from the transaxle.

35. REMOVE THRUST NEEDLE ROLLER BEARING

(a) Using a magnetic finger, remove the C-2 hub thrust bearing race, the thrust needle roller bearing and the No. 3 thrust bearing race from the direct clutch hub.

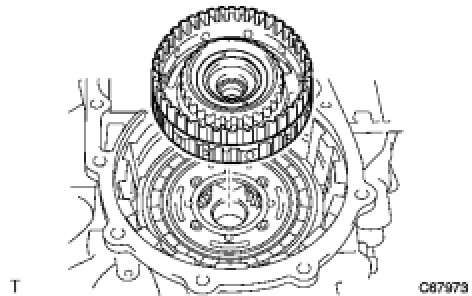

36. REMOVE DIRECT CLUTCH HUB

(a) Remove the direct clutch hub from the transaxle case.

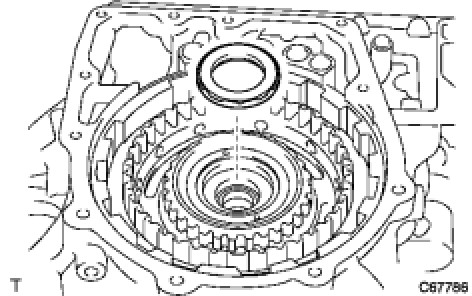

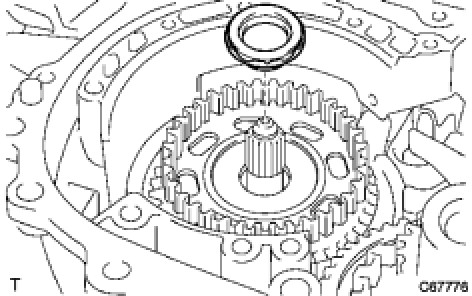

37. REMOVE REAR NO. 2 PLANETARY SUN GEAR THRUST NEEDLE ROLLER BEARING

(a) Using a magnetic finger, remove the thrust bearing from the rear thrust needle bearing.

38. REMOVE REAR PLANETARY SUN GEAR ASSEMBLY

(a) Remove the rear planetary sun gear from the transaxle case.

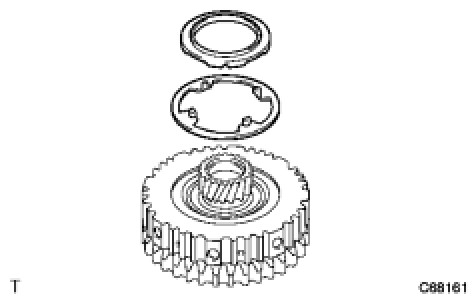

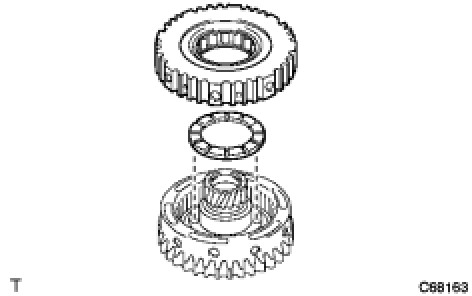

39. REMOVE REAR PLANETARY SUN GEAR THRUST NEEDLE ROLLER BEARING

(a) Remove the rear planetary sun gear thrust needle roller bearing and No. 1 planetary carrier thrust washer from the rear planetary sun gear.

40. INSPECT ONE-WAY CLUTCH ASSEMBLY

(a) Hold the rear planetary sun gear and turn the one-way clutch.
(b) Make sure that the one-way clutch turns freely counterclockwise and locks when turned clockwise.

41. REMOVE ONE-WAY CLUTCH ASSEMBLY

(a) Remove the one-way clutch assembly and No. 2 planetary carrier thrust washer from the rear planetary sun gear.

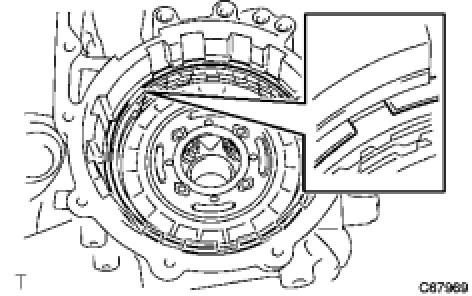

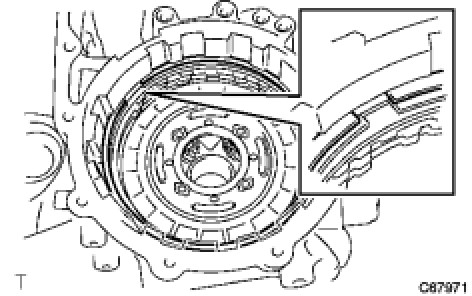

42. REMOVE 2ND COAST AND OVERDRIVE BRAKE FLANGE HOLE SNAP RING

(a) Using a screwdriver, remove the snap ring from the transaxle case.

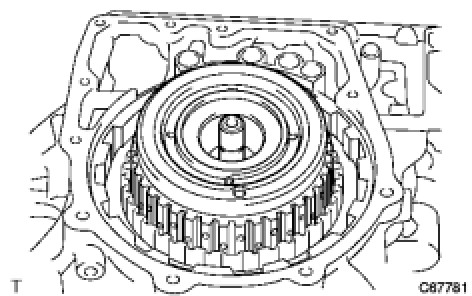

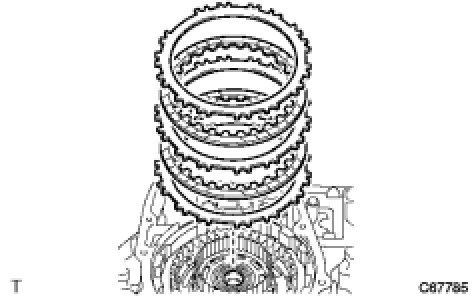

43. REMOVE 2ND BRAKE DISC

(a) Using a screwdriver, remove the snap ring.

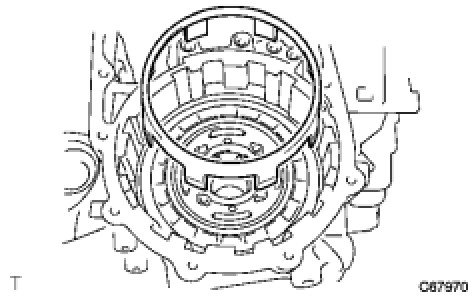

(b) Remove the 2 flanges, 4 discs and 3 No. 1 flanges from the transaxle.

44. REMOVE 2ND BRAKE PISTON SLEEVE

(a) Remove the 2nd brake piston sleeve from the transaxle case.
