U341E AUTOMATIC TRANSAXLE: SECOND BRAKE PISTON: REASSEMBLY

REASSEMBLY

1. INSTALL 2ND BRAKE CYLINDER O-RING

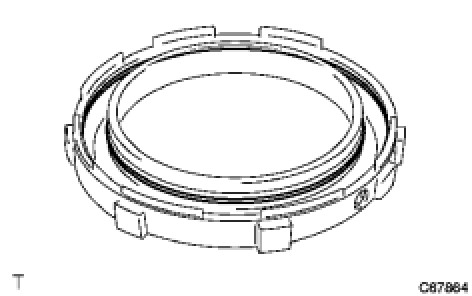

(a) Coat 2 new 2nd brake cylinder O-rings with ATF, and install them into the 2nd brake cylinder.
NOTE: Do not damage the O-rings.

2. INSTALL 2ND BRAKE PISTON

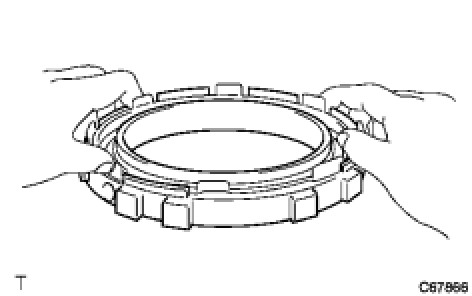

(a) Coat the 2nd brake piston with ATF, and install it into the 2nd brake cylinder.
CAUTION: Do not damage the O-rings when pressing the 2nd brake piston into the 2nd brake cylinder by hand.

3. INSTALL 2ND BRAKE PISTON RETURN SPRING SUB-ASSEMBLY






(a) Install the piston return spring.

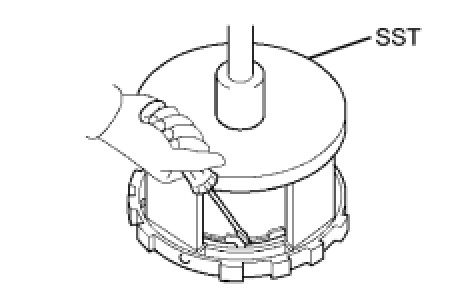

(b) Place SST on the piston return spring, and compress the piston return spring with a press.
SST: 09387-00060
(c) Using a screwdriver, install the snap ring.
NOTE: Make sure that the end gap of the snap ring is not aligned with the piston return spring claw.
