Reassembly

U341E AUTOMATIC TRANSAXLE: INPUT SHAFT: REASSEMBLY

REASSEMBLY

1. INSTALL INPUT SHAFT OIL SEAL RING






(a) Coat a new input shaft oil seal ring with ATF, and install it to the input shaft.
2. INSTALL FORWARD CLUTCH PISTON O-RING






(a) Coat a new clutch piston O-ring with ATF, and install it to the forward clutch piston.
3. INSTALL FORWARD CLUTCH PISTON






(a) Install the forward clutch piston to the input shaft.
NOTE: Do not damage the O-ring.

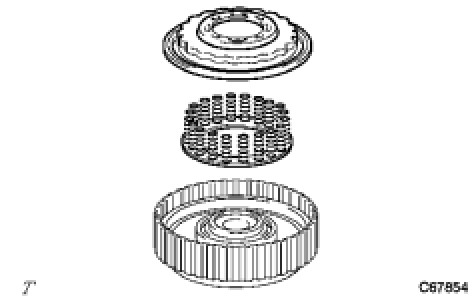

4. INSTALL FORWARD CLUTCH RETURN SPRING SUB-ASSEMBLY






(a) Install the return spring and clutch balancer to the input shaft.






(b) Using SST, a press and snap ring pliers, install the snap ring to the input shaft.
SST: 09320-89010

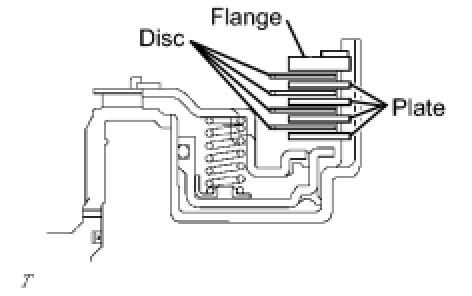

5. INSTALL FRONT CLUTCH DISC






(a) Install the 4 plates, 4 discs and flange.
(b) Using a screwdriver, install the snap ring to the input shaft.

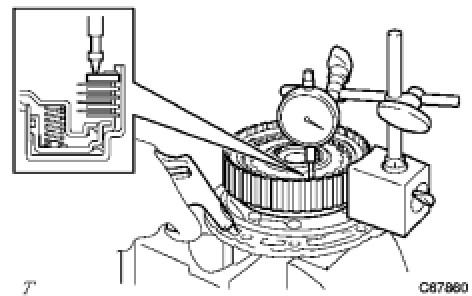

6. INSPECT PACK CLEARANCE OF FORWARD CLUTCH






(a) Using a dial indicator, measure the pack clearance while applying and releasing compressed air (392 kPa, 4.0 kgf/cm2, 57 psi).
Pack clearance:
1.406 to 1.806 mm (0.05535 to 0.07110 in.)
NOTE: If the clearance is not within the specified range, install a new brake flange.
HINT: There are 4 different flange thicknesses.

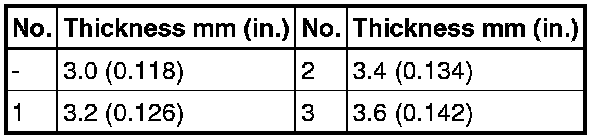

Flange thickness:
