U341E AUTOMATIC TRANSAXLE: DIFFERENTIAL CASE: DISASSEMBLY

DISASSEMBLY

1. REMOVE FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING

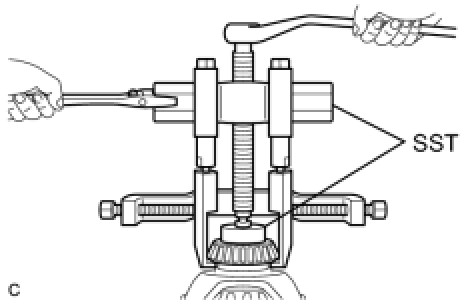

(a) Using SST, remove the front differential case front tapered roller bearing from the differential case.
SST: 09950-40011
09951-04010
09952-04010
09953-04030
09954-04010
09955-04061
09957-04010
09958-04011
SST: 09950-60010
09951-00390

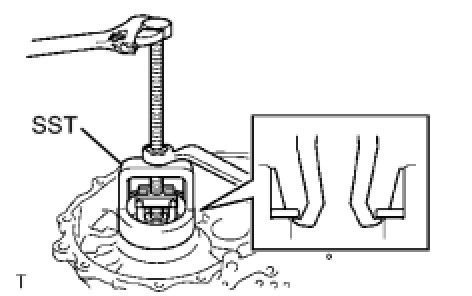

(b) Using SST, remove the front differential case RH tapered roller bearing outer race from the transaxle housing.
SST: 09387-00041
09387-02020
09387-02010
2. REMOVE FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING

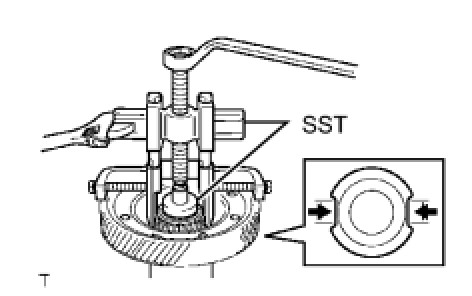

(a) Using SST, remove the front differential case tapered roller bearing from the differential case.
SST: 09950-40011
09951-04010
09952-04010
09953-04020
09954-04010
09955-04061
09957-04010
09958-04011
SST: 09950-60010
09951-00430

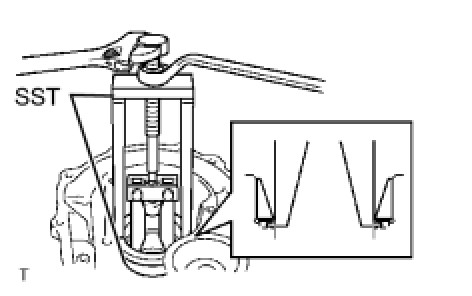

(b) Using SST, remove the front differential case tapered roller bearing outer race from the transaxle case.
SST: 09612-65014
09612-01010
3. REMOVE FRONT DIFFERENTIAL RING GEAR

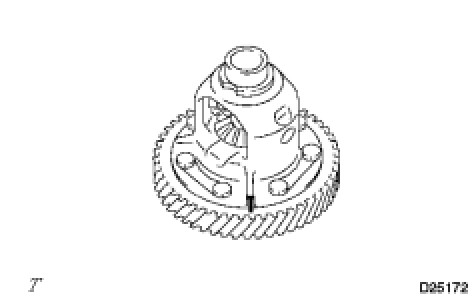

(a) Place matchmarks on the front differential ring gear and differential case.

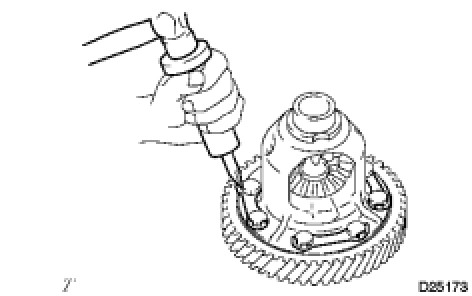

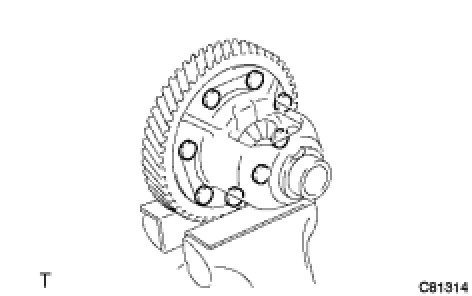

(b) Using SST and a hammer, release the lock plate.
SST: 09930-00010

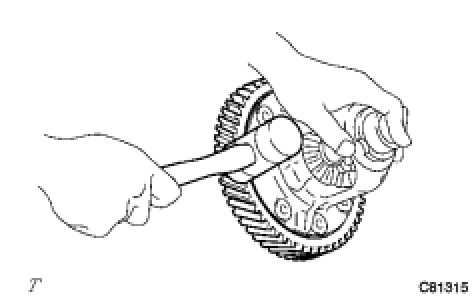

(d) Using a plastic hammer, remove the front differential ring gear from the differential case.
4. REMOVE FRONT DIFFERENTIAL PINION SHAFT STRAIGHT PIN

(a) Using a punch and a hammer, release the differential case.

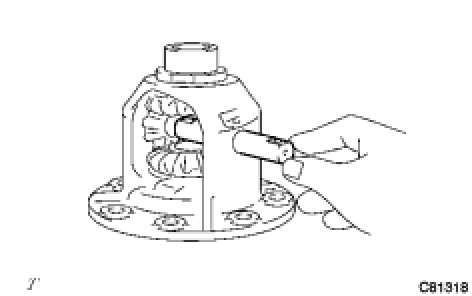

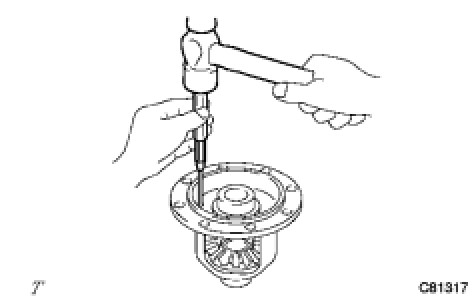

(b) Using a pin punch and a hammer, remove the straight pin.
5. REMOVE FRONT NO. 1 DIFFERENTIAL PINION SHAFT

(a) Remove the front No. 1 differential pinion shaft from the front differential case.
6. REMOVE FRONT DIFFERENTIAL SIDE GEAR

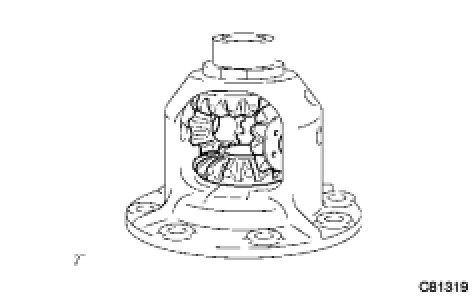

(a) Remove the 2 front differential pinions, 2 front differential side gear thrust washers, 2 front differential side gears and 2 front differential side gear thrust washers from the front differential case.
