U341E AUTOMATIC TRANSAXLE: DIFFERENTIAL OIL SEAL: REPLACEMENT
REPLACEMENT
1. REMOVE ENGINE UNDER COVER
2. DRAIN AUTOMATIC TRANSAXLE FLUID
(a) Remove the drain plug and gasket, and drain the ATF.
(b) Install a new gasket and the drain plug.
Torque: 49 Nm (500 kgf-cm, 36 ft-lbf)
3. REMOVE FRONT WHEEL
4. REMOVE FRONT AXLE HUB NUT Removal
5. SEPARATE FRONT SPEED SENSOR Removal
6. SEPARATE FRONT STABILIZER LINK ASSEMBLY Removal
7. SEPARATE TIE ROD END SUB-ASSEMBLY Removal
8. SEPARATE FRONT LOWER SUSPENSION ARM Removal
9. SEPARATE FRONT AXLE ASSEMBLY Removal
10. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH Removal
11. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH Removal
12. REMOVE FRONT TRANSAXLE CASE OIL SEAL

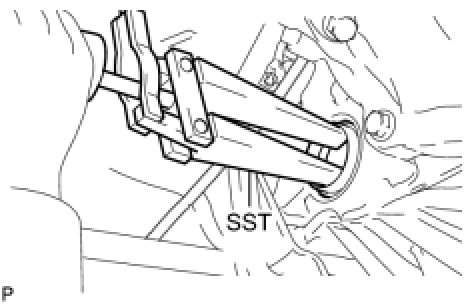

(a) Using SST, remove the front transaxle case oil seal.
SST: 09308-00010
13. REMOVE TRANSAXLE CASE OIL SEAL

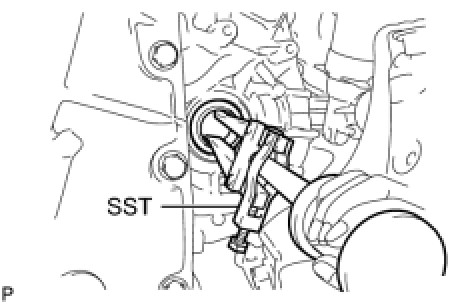

(a) Using SST, remove the transaxle case oil seal.
SST: 09308-00010
14. INSTALL TRANSAXLE CASE OIL SEAL
(a) Coat the lip of a new transaxle case oil seal with MP grease.

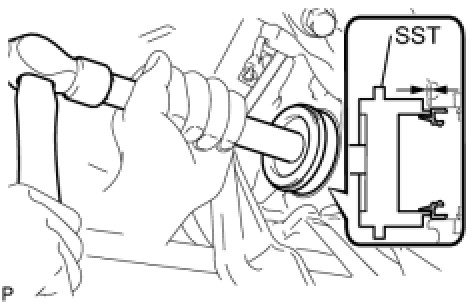

(b) Using SST and a hammer, install the transaxle case oil seal.
SST: 09710-20011
09710-06071
SST: 09950-70010
09951-07200
Drive in depth:
2.2 to 3.2 mm (0.087 to 0.126 in.)
NOTE: Do not damage the oil seal lip.
15. INSTALL FRONT TRANSAXLE CASE OIL SEAL
(a) Coat the lip of a new front transaxle case oil seal with MP grease.
(b) Using SST and a hammer, install the front transaxle case oil seal.
SST: 09554-14010
SST: 09950-70010
09951-07200
Drive in depth:
-0.5 to 0.5 mm (-0.020 to 0.020 in.)
NOTE: Do not damage the oil seal lip.
16. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH Installation
17. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH Installation
18. INSTALL FRONT AXLE ASSEMBLY Installation
19. INSTALL FRONT LOWER SUSPENSION ARM Installation
20. INSTALL TIE ROD END SUB-ASSEMBLY Installation
21. INSTALL FRONT STABILIZER LINK ASSEMBLY Installation
22. INSTALL FRONT SPEED SENSOR Installation
23. INSTALL FRONT AXLE HUB NUT Installation
24. INSTALL FRONT WHEEL
Torque: 103 Nm (1050 kgf-cm, ft-lbf)
25. ADD AUTOMATIC TRANSAXLE FLUID
26. INSPECT AUTOMATIC TRANSAXLE FLUID Procedures
27. INSPECT FOR AUTOMATIC TRANSAXLE FLUID LEAK
28. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
HINT:
29. INSTALL ENGINE UNDER COVER
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)
