Home >> Scion >> 2008 >> xD L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Description and Operation

Starting System: Description and Operation

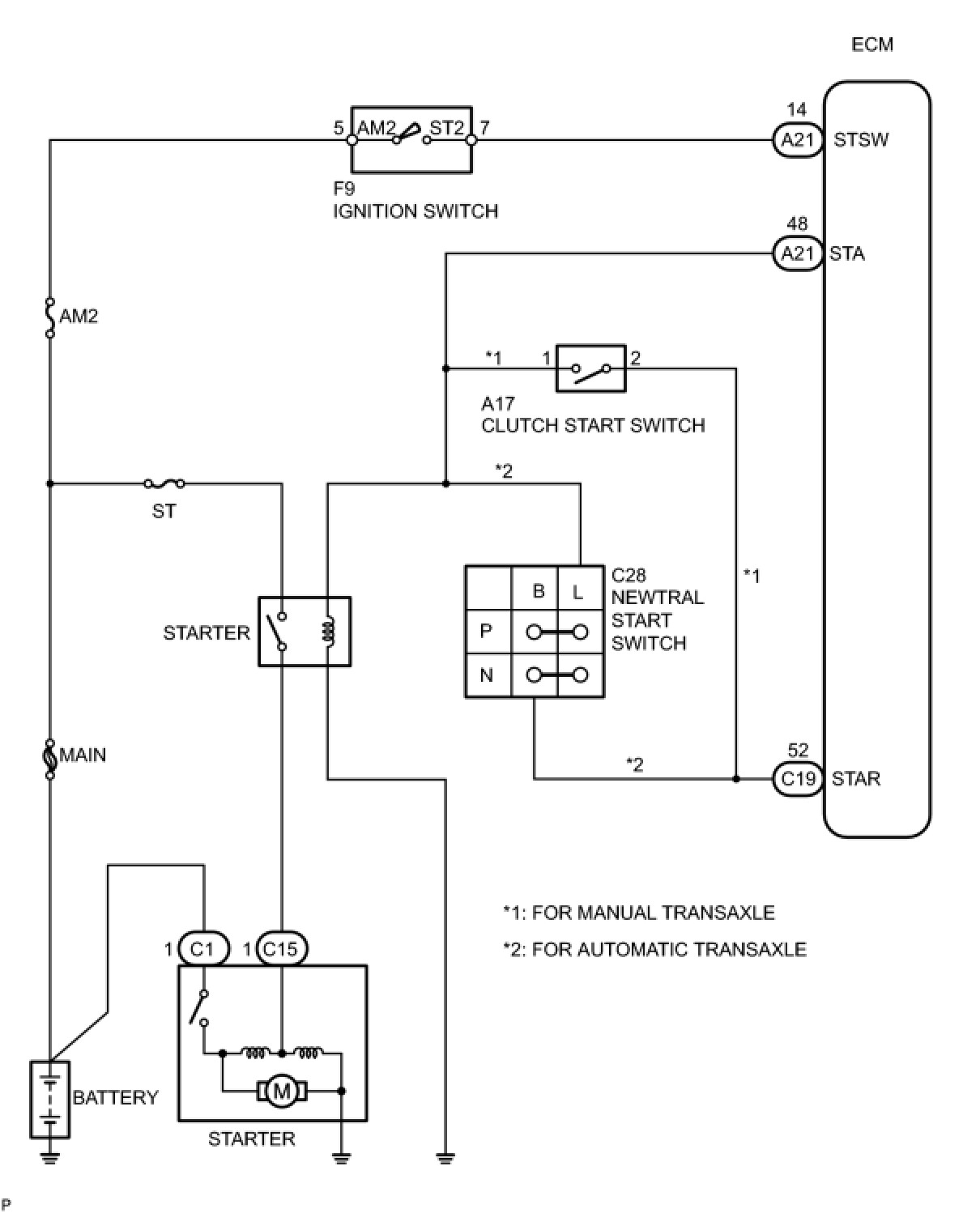

2ZR-FE STARTING: STARTING SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM
