Torque Specifications

SERVICE SPECIFICATIONS: POWER STEERING: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

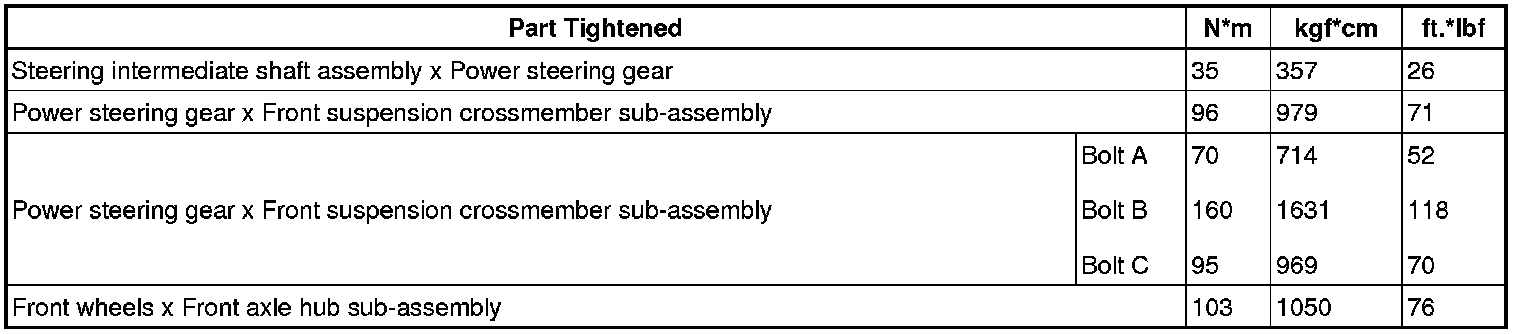

Power Steering Gear:

Power Steering ECU:
