SERVICE SPECIFICATIONS: AIR CONDITIONING: SERVICE DATA

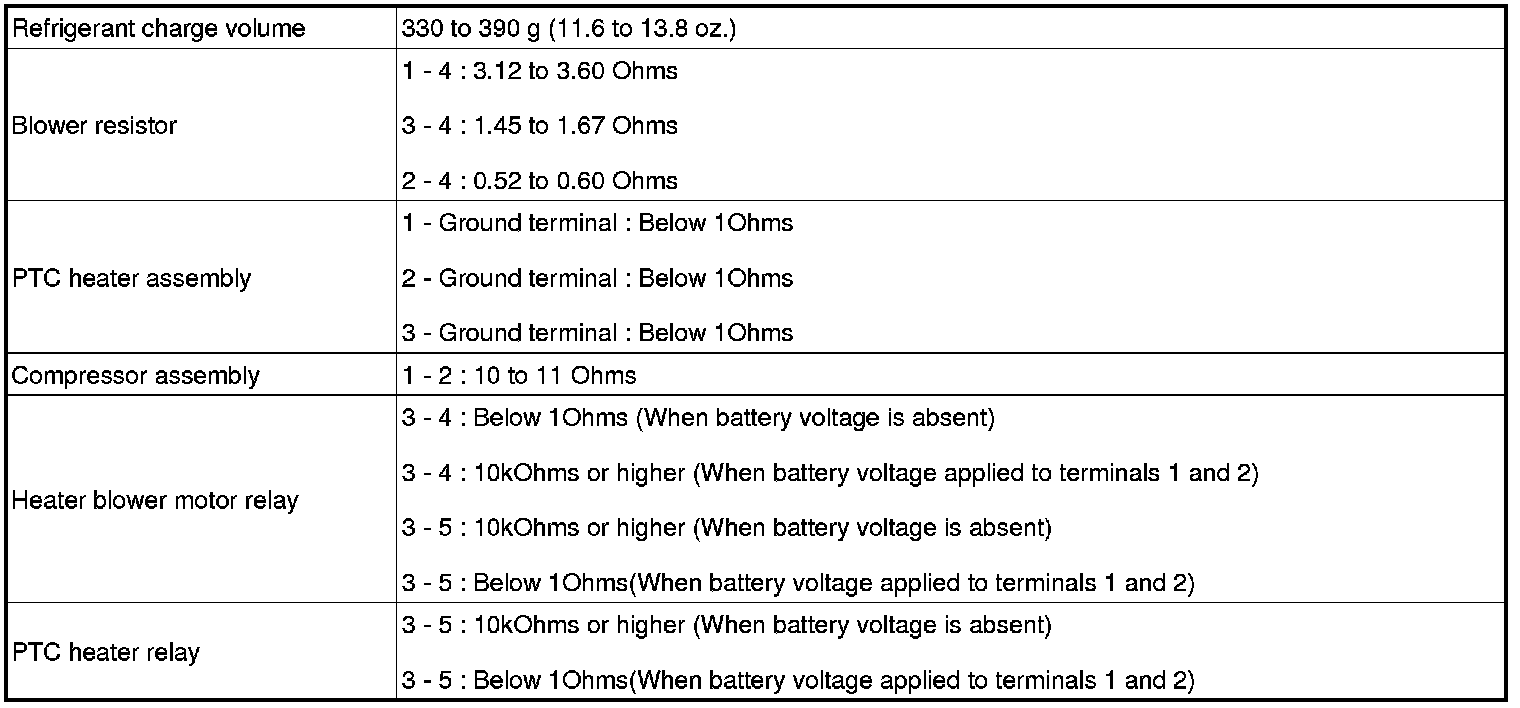

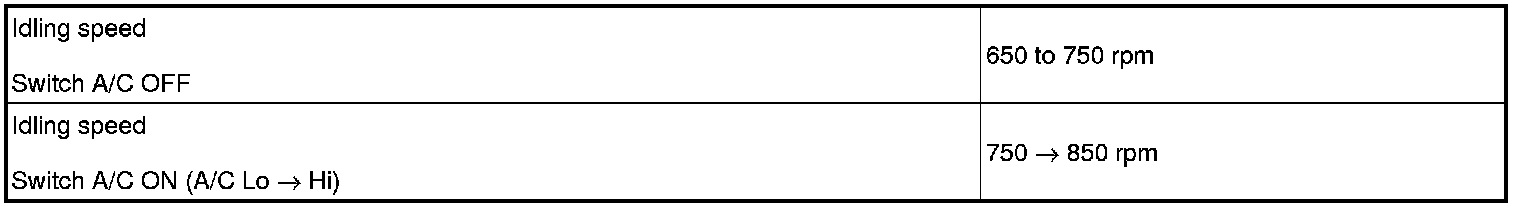

SERVICE DATA
for Manual transaxle
for Automatic transaxle
