Home >> Scion >> 2008 >> xD L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Service Data

Service Data








SERVICE SPECIFICATIONS: 2ZR-FE ENGINE MECHANICAL: SERVICE DATA

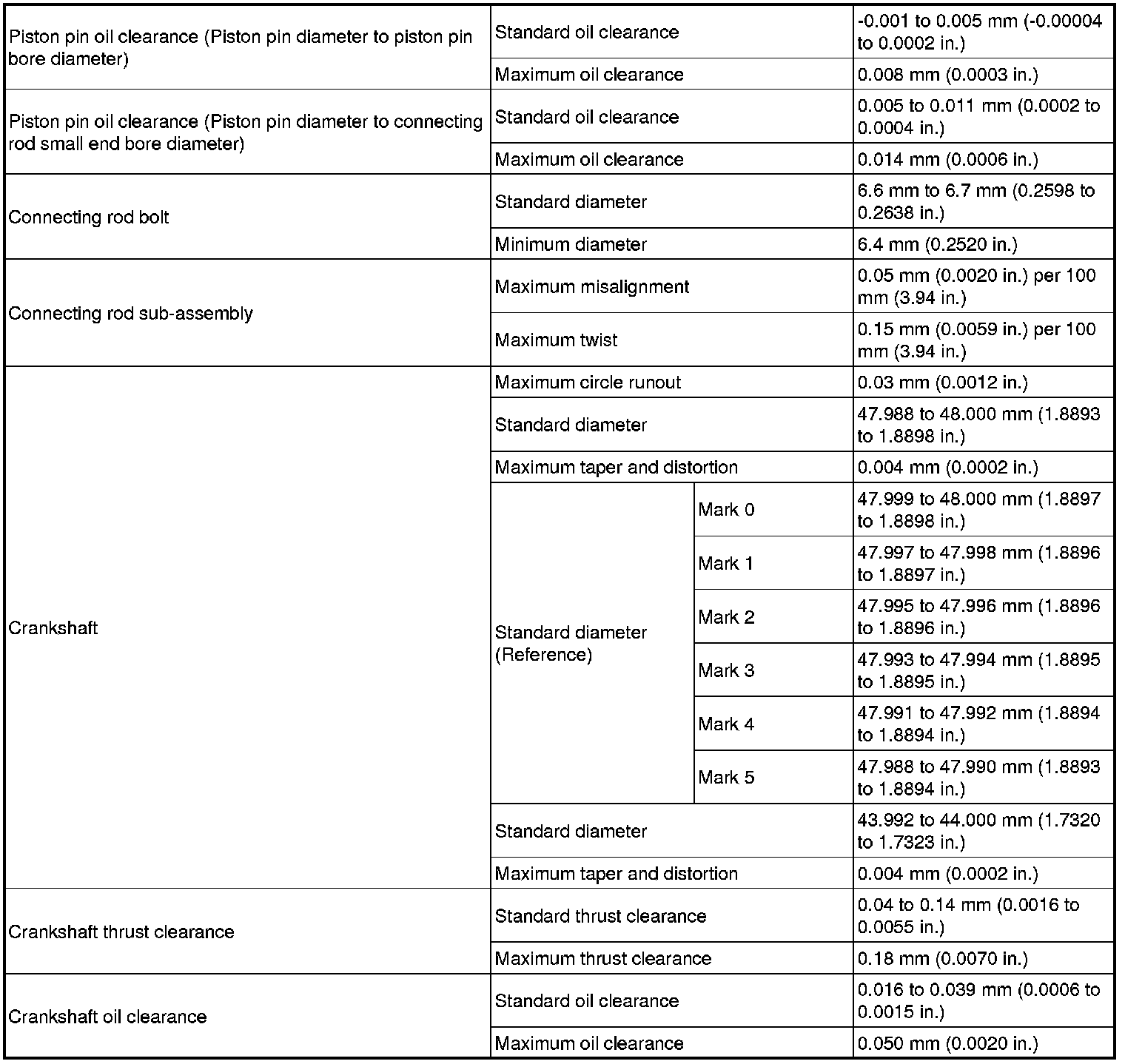

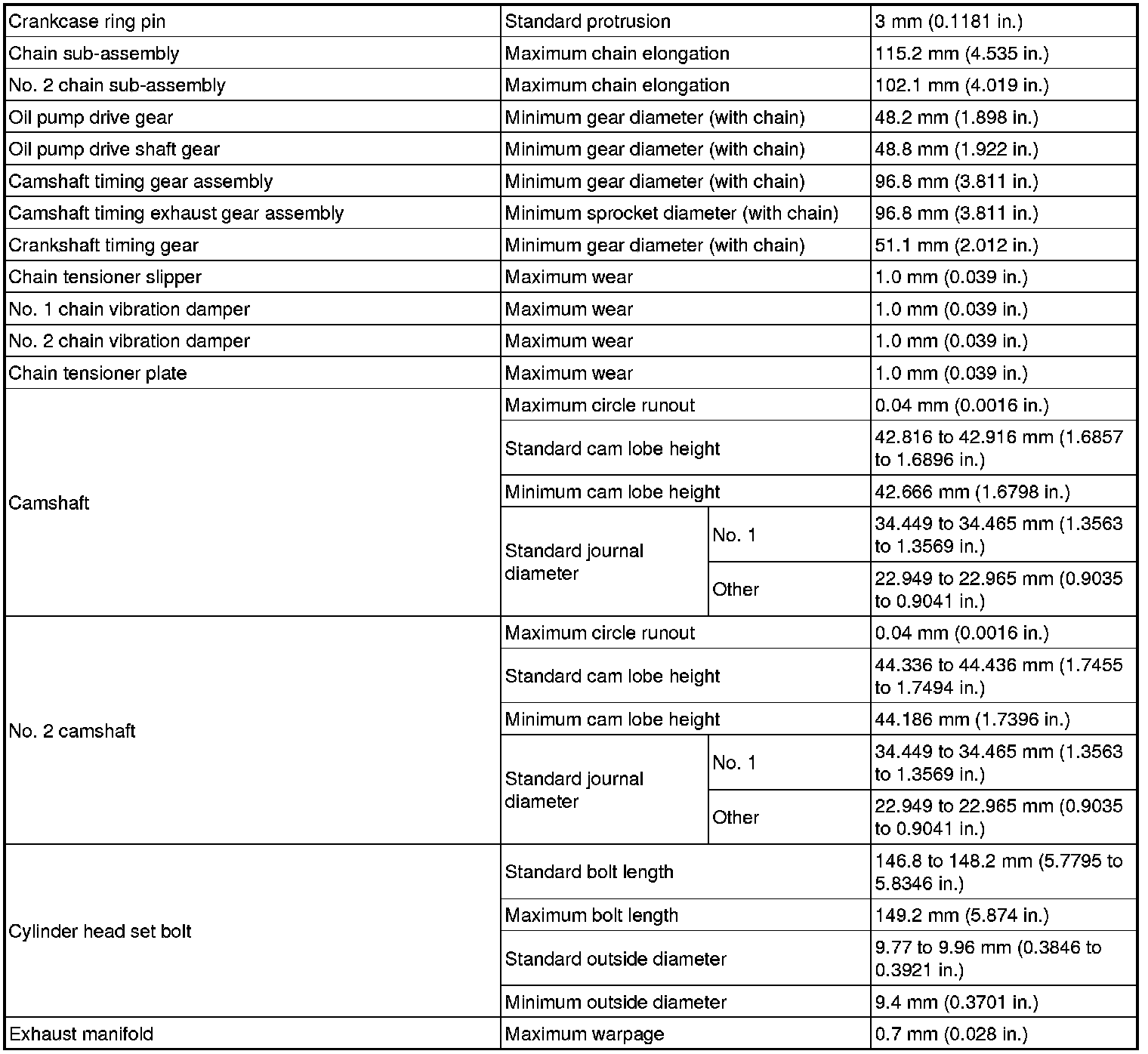

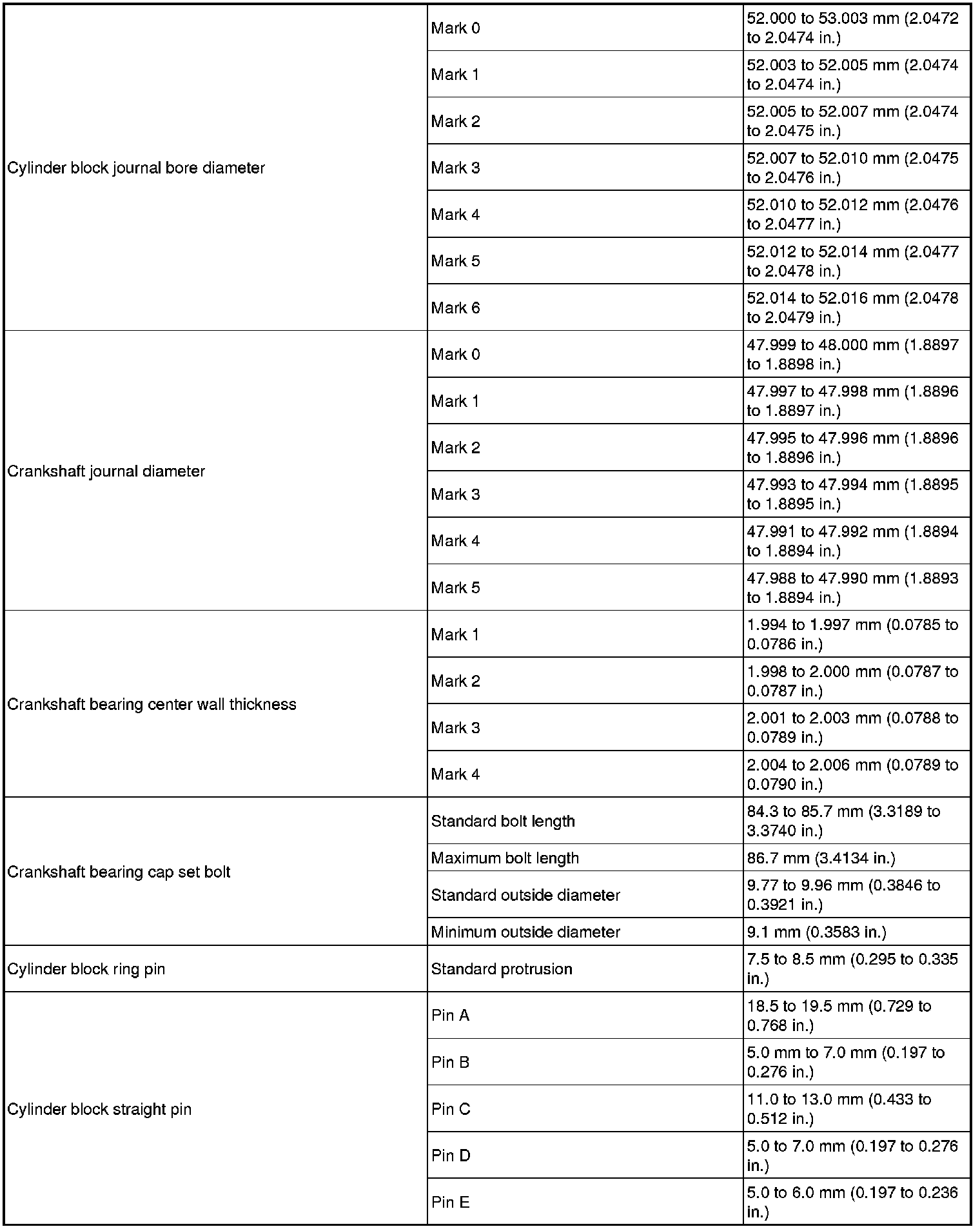

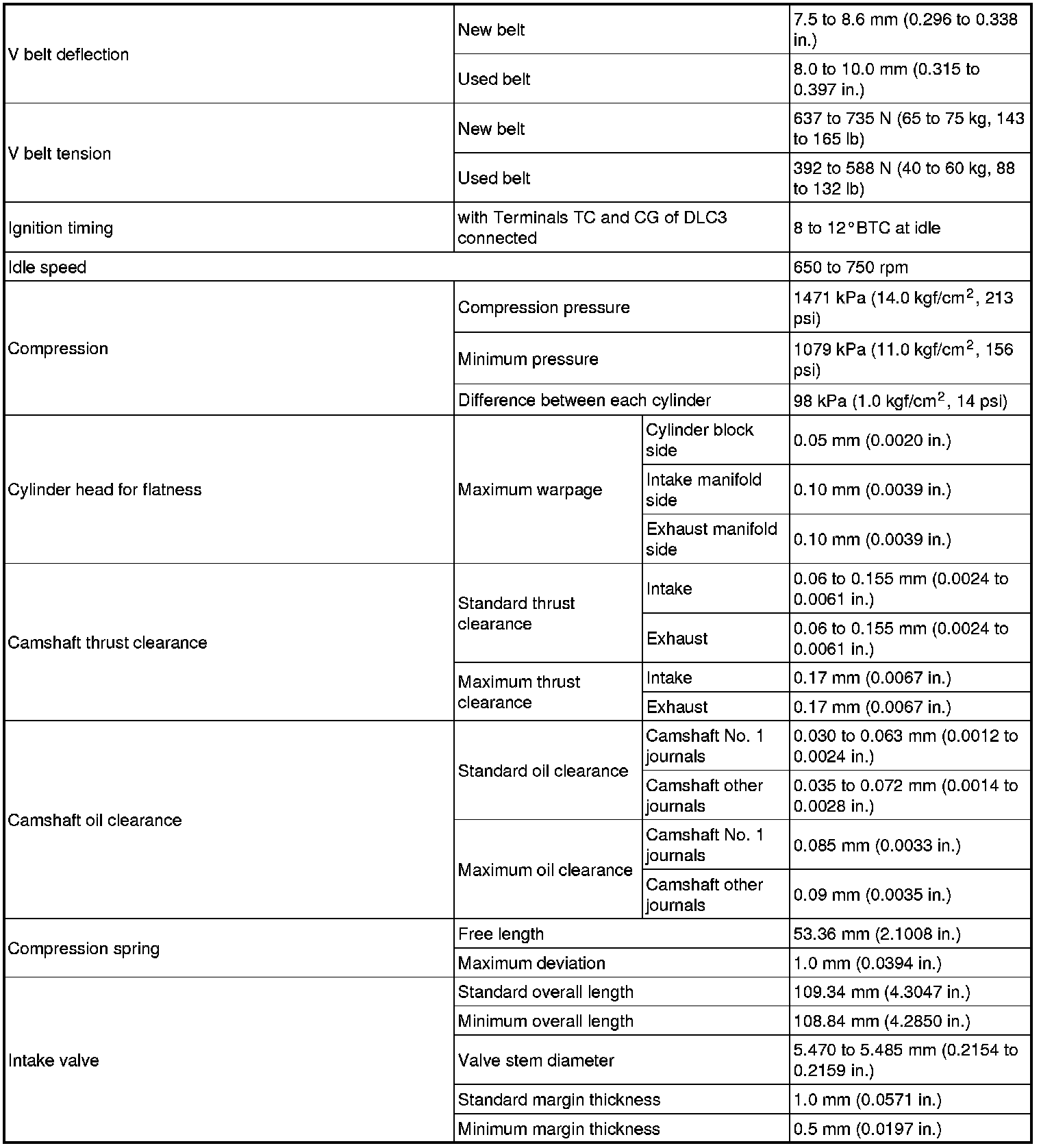

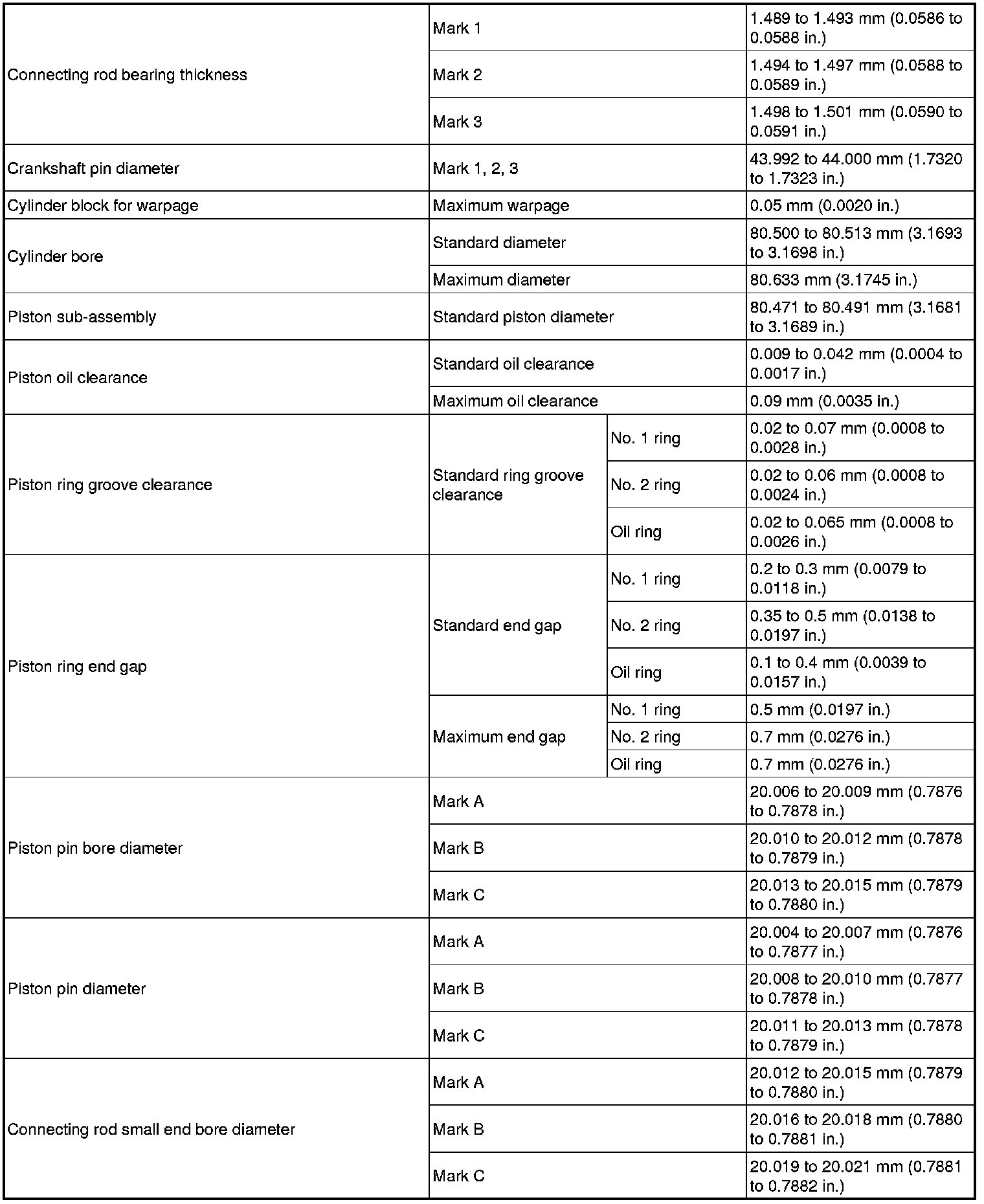

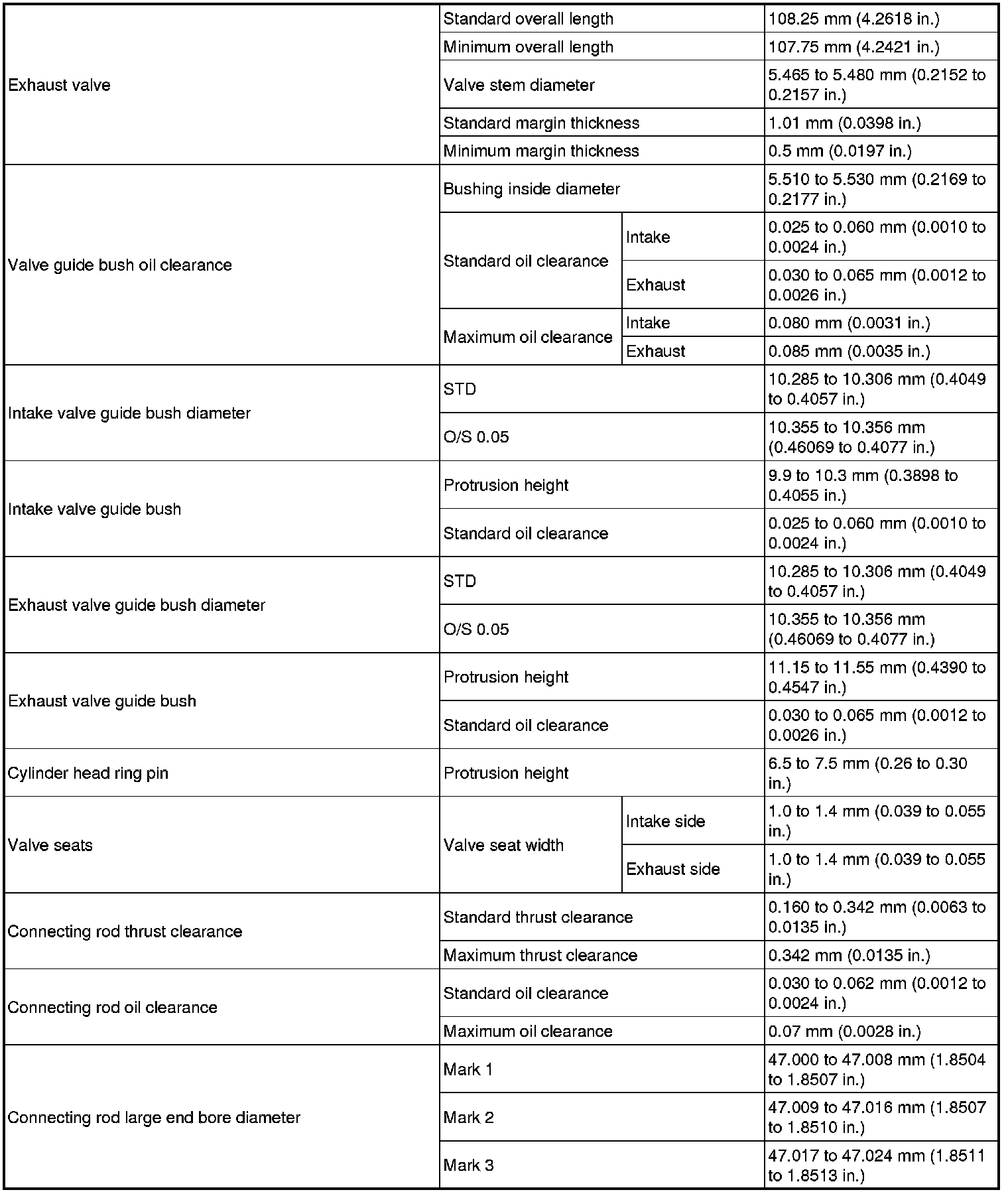

SERVICE DATA
