Water Pump

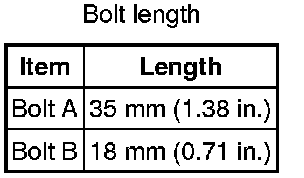

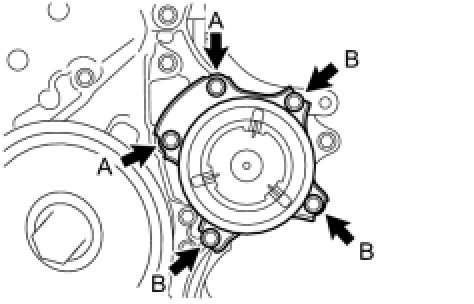

WATER PUMP ASSEMBLY











Torque: 26 Nm (260 kgf-cm, 19 ft-lbf)
Torque: 24 Nm (240 kgf-cm, 17 ft-lbf)
