Rod Bearing Cap

PISTON SUB-ASSEMBLY WITH CONNECTING ROD



Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)






Mark the front of the connecting rod cap bolts with paint.

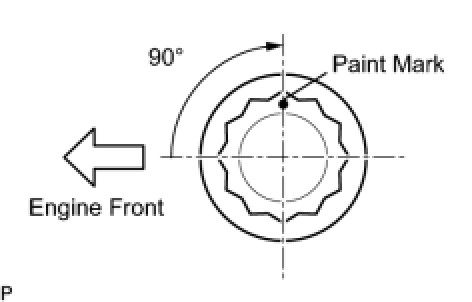

Further tighten the cap bolts by 90° as shown in the illustration.
