Cylinder Head
CYLINDER HEAD SUB-ASSEMBLY

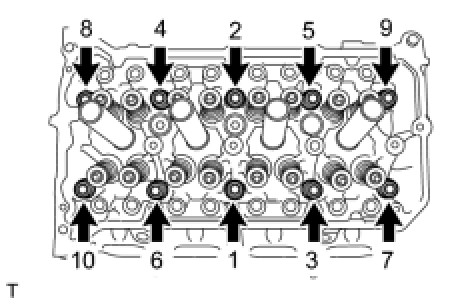

Torque: 49 Nm (500 kgf-cm, 36 ft-lbf)

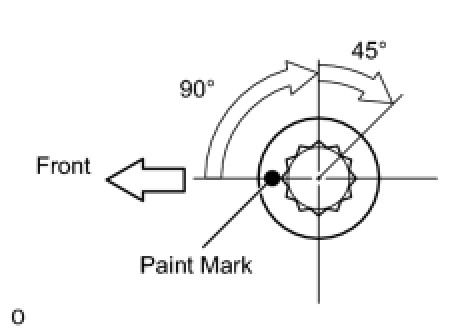

Mark the front of the cylinder head bolt with paint.
Retighten the cylinder head bolts by additional 90° and one more additional 45° as shown in the illustration.
Torque: 49 Nm (500 kgf-cm, 36 ft-lbf)
Mark the front of the cylinder head bolt with paint.
Retighten the cylinder head bolts by additional 90° and one more additional 45° as shown in the illustration.
