Home >> Scion >> 2008 >> xD L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brakes and Traction Control >> System Specifications >> Brake >> Torque Specifications

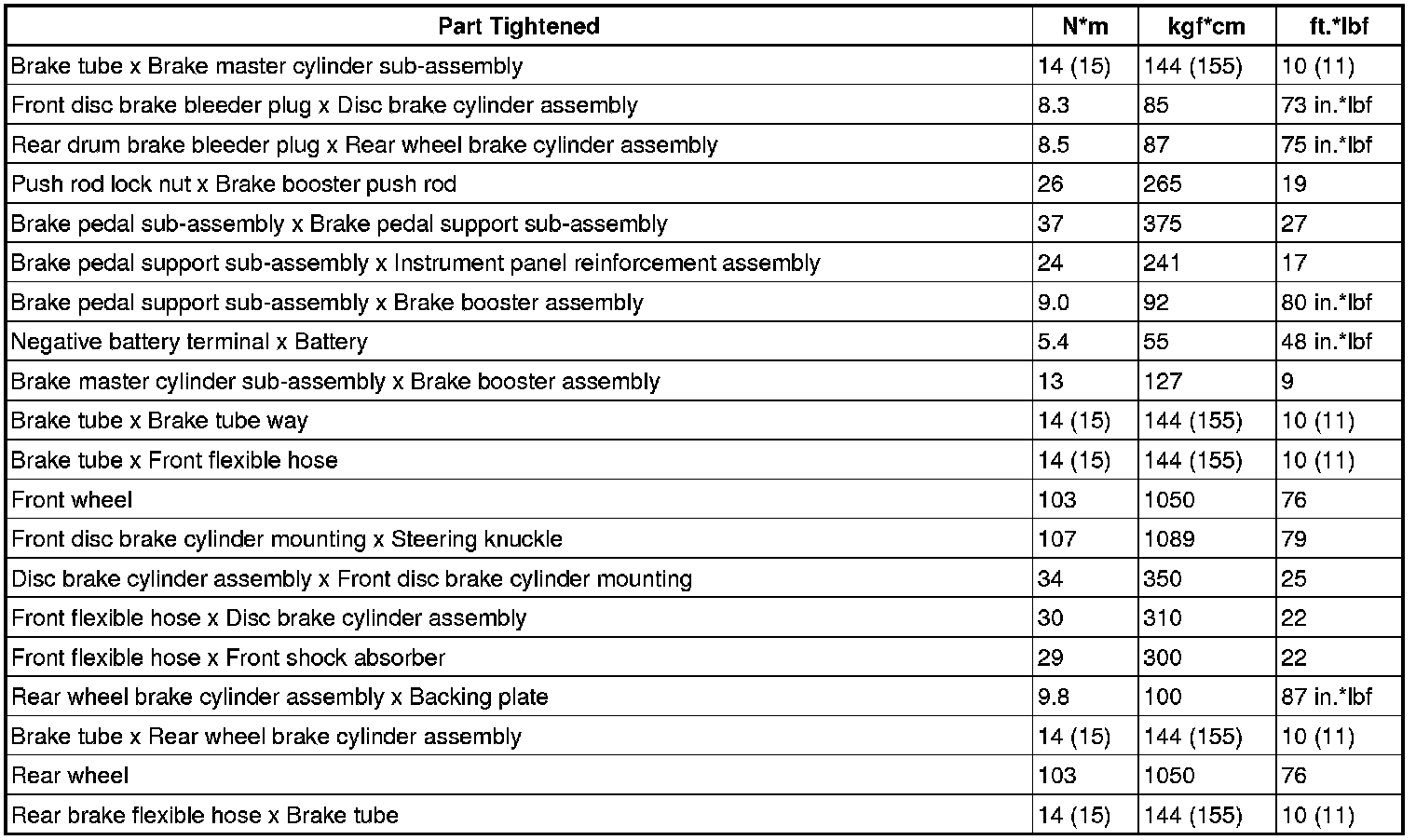

Torque Specifications








SERVICE SPECIFICATIONS: BRAKE: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS





( ): For use without union nut wrench
