WIPER AND WASHER: WASHER LEVEL WARNING SWITCH: INSTALLATION

INSTALLATION

1. INSTALL WASHER LEVEL WARNING SWITCH

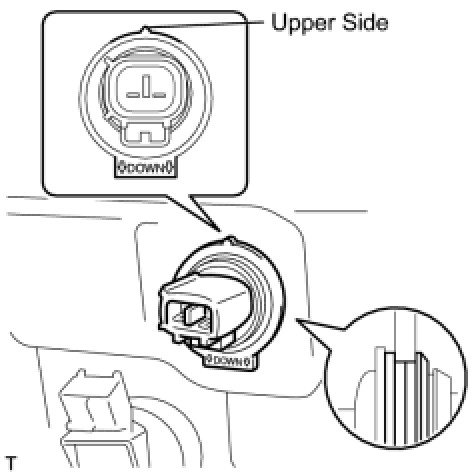

(a) Install the washer level warning switch onto the packing of the washer jar assembly.
NOTE: Check the orientation of the switch.

2. INSTALL WINDSHIELD WASHER JAR ASSEMBLY Installation

3. FILL UP WASHER JAR AND PUMP ASSEMBLY WITH WASHER FLUID
(a) Connect the washer hose to the washer motor and pump assembly, and fill the washer jar assembly with washer fluid.
4. INSTALL HEADLIGHT UNIT RH Installation

5. INSTALL FRONT BUMPER COVER Installation
