Removal

SUPPLEMENTAL RESTRAINT SYSTEM: SIDE AIRBAG SENSOR: REMOVAL

REMOVAL
CAUTION: Some of the these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing Service Precautions.
HINT: The procedure described below is for the RH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT DOOR SCUFF PLATE RH Removal

3. REMOVE REAR DOOR SCUFF PLATE RH Removal

4. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH Removal

5. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH Removal

6. REMOVE CENTER PILLAR LOWER GARNISH RH Removal

7. REMOVE SIDE AIRBAG SENSOR
CAUTION: Confirm that the negative battery terminal is disconnected before performing the operation. Even an impact to only the airbag sensor will cause the airbag to deploy.

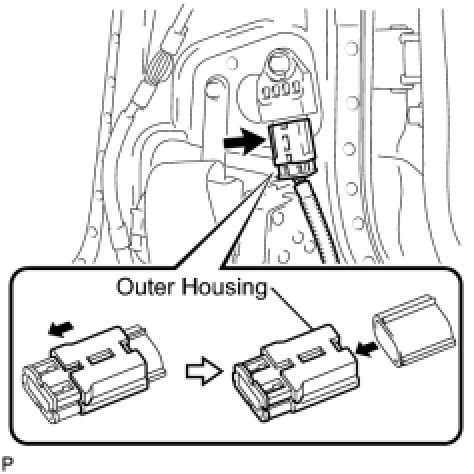

(a) Slide the outer housing and detach the airbag connector.

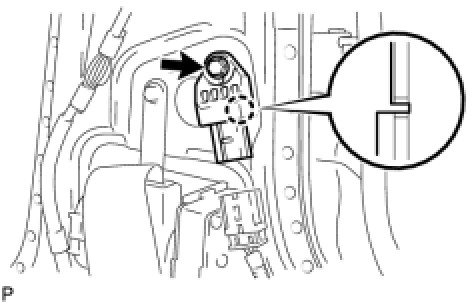

(b) Remove the bolt, disengage the hook and remove the side airbag sensor.
