Pinout Values and Diagnostic Parameters

SEAT BELT: SEAT BELT WARNING SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

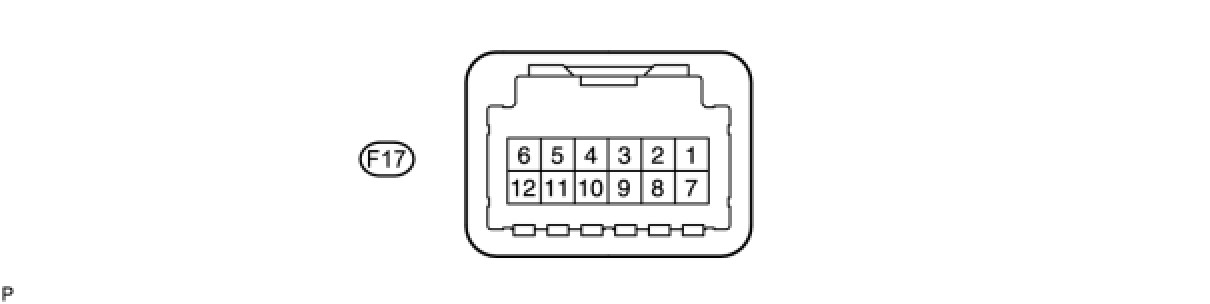

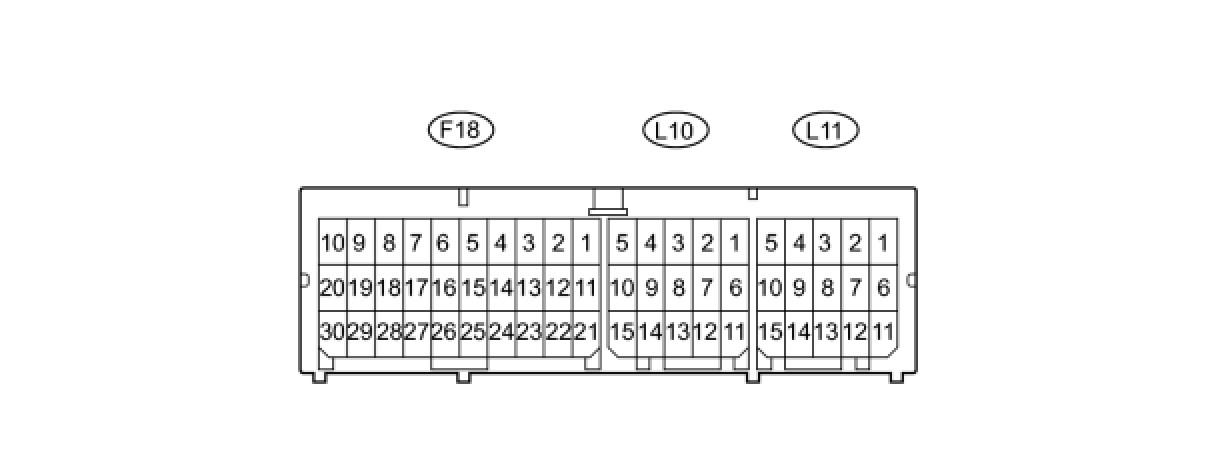

1. CHECK COMBINATION METER

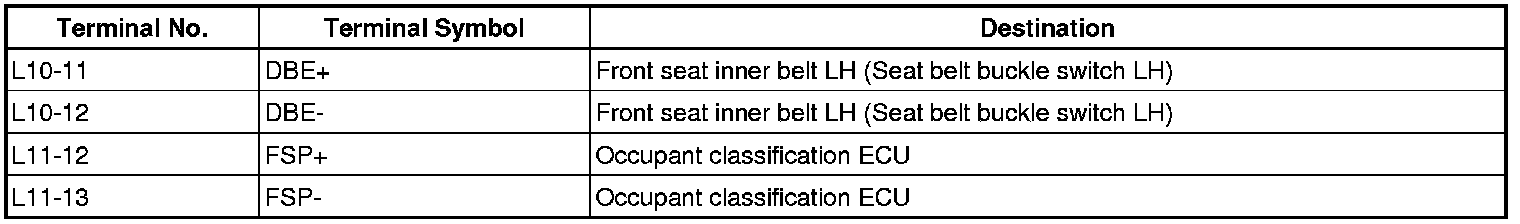

(a) Measure the voltage according to the value(s) in the table below.






2. CHECK PASSENGER SEAT BELT WARNING LIGHT

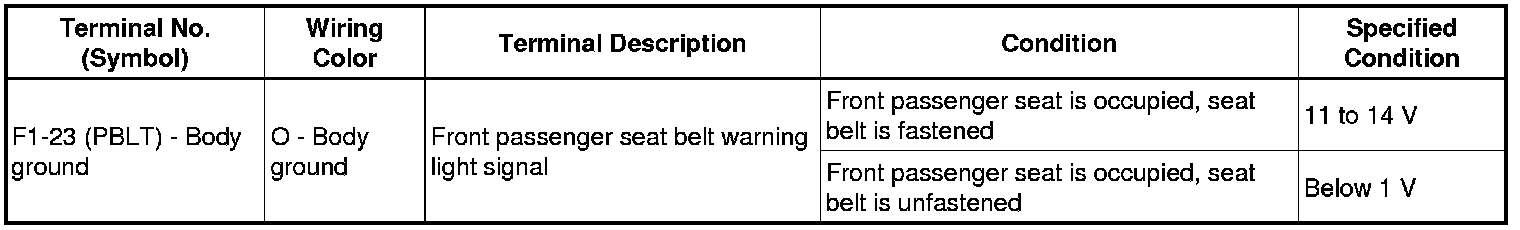

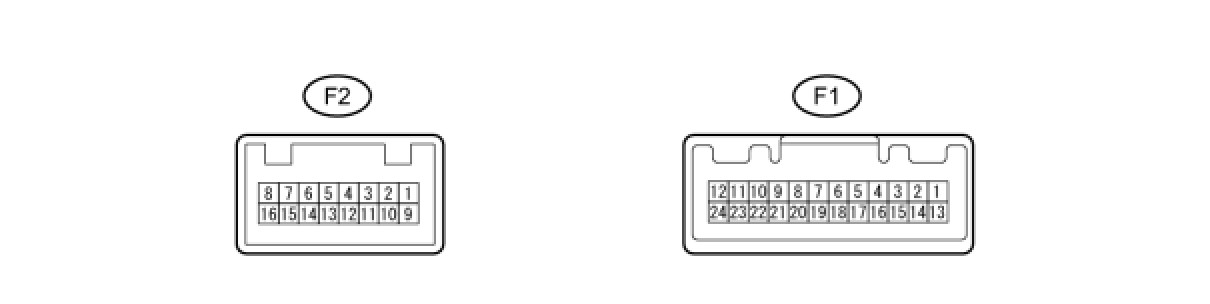

(a) Measure the voltage according to the value(s) in the table below.

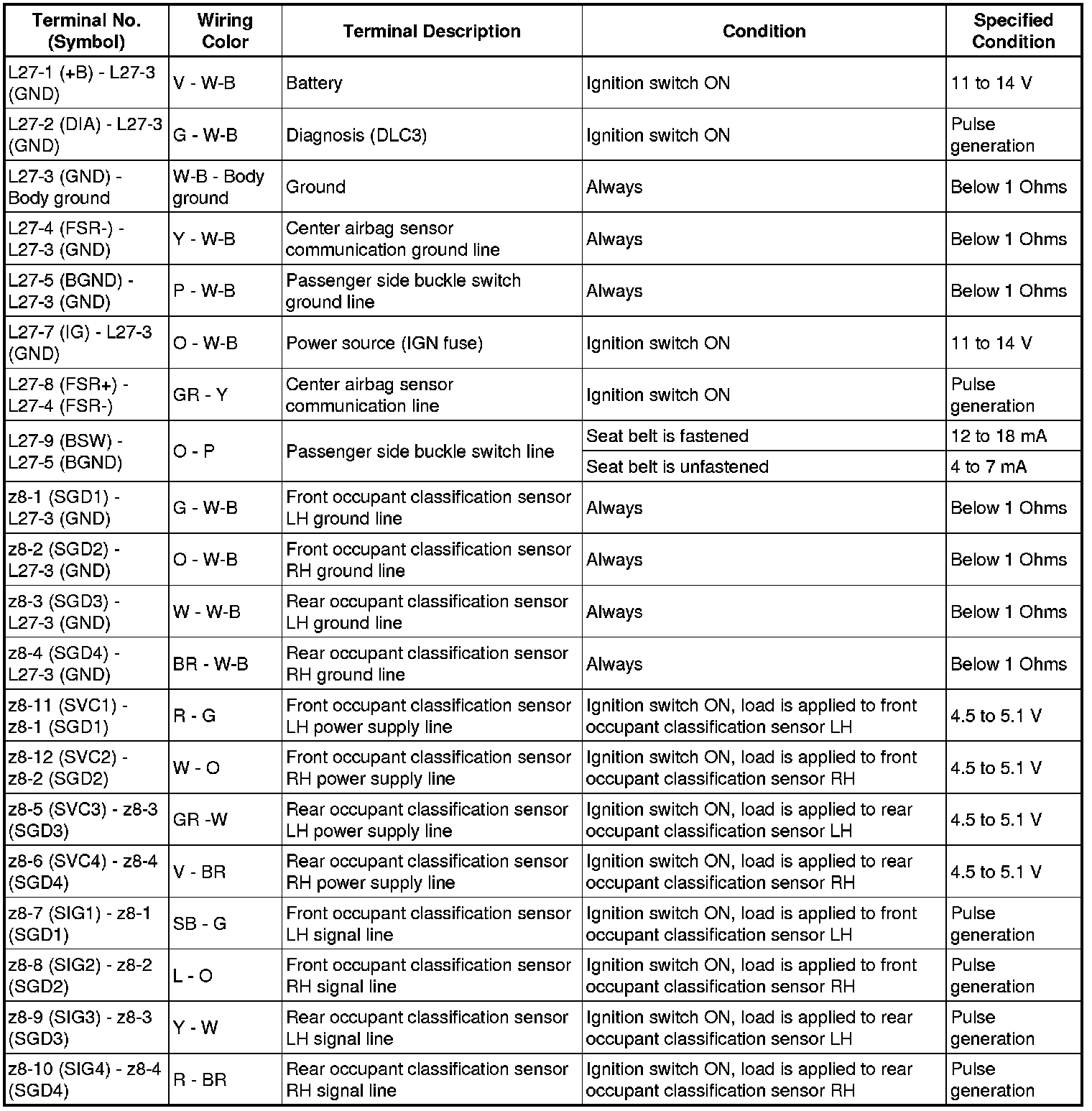

3. CENTER AIRBAG SENSOR









4. CHECK OCCUPANT CLASSIFICATION ECU
