Home >> Scion >> 2008 >> xD L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Restraints and Safety Systems >> Locations

Restraints and Safety Systems: Locations

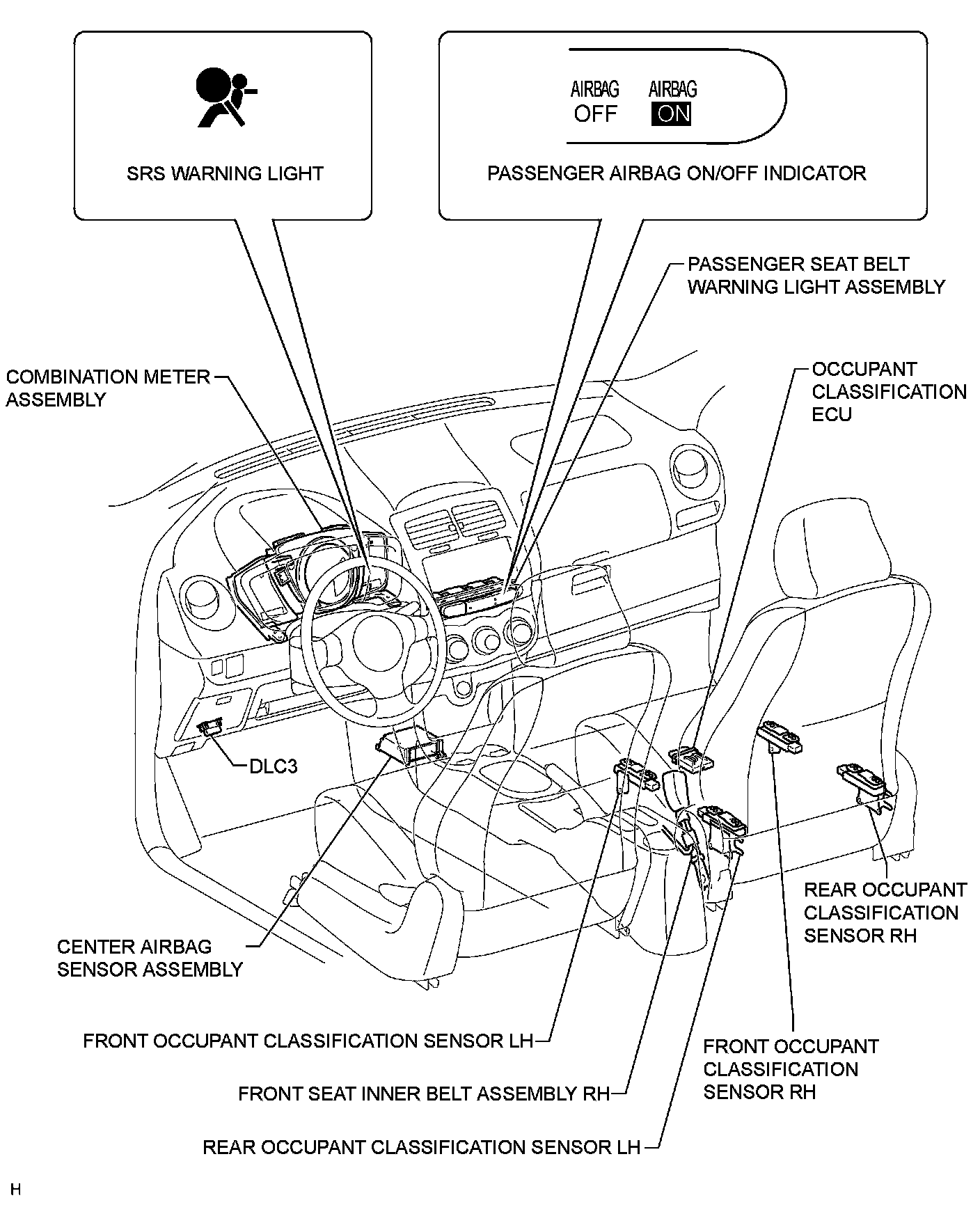

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
