SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: PROBLEM SYMPTOMS TABLE

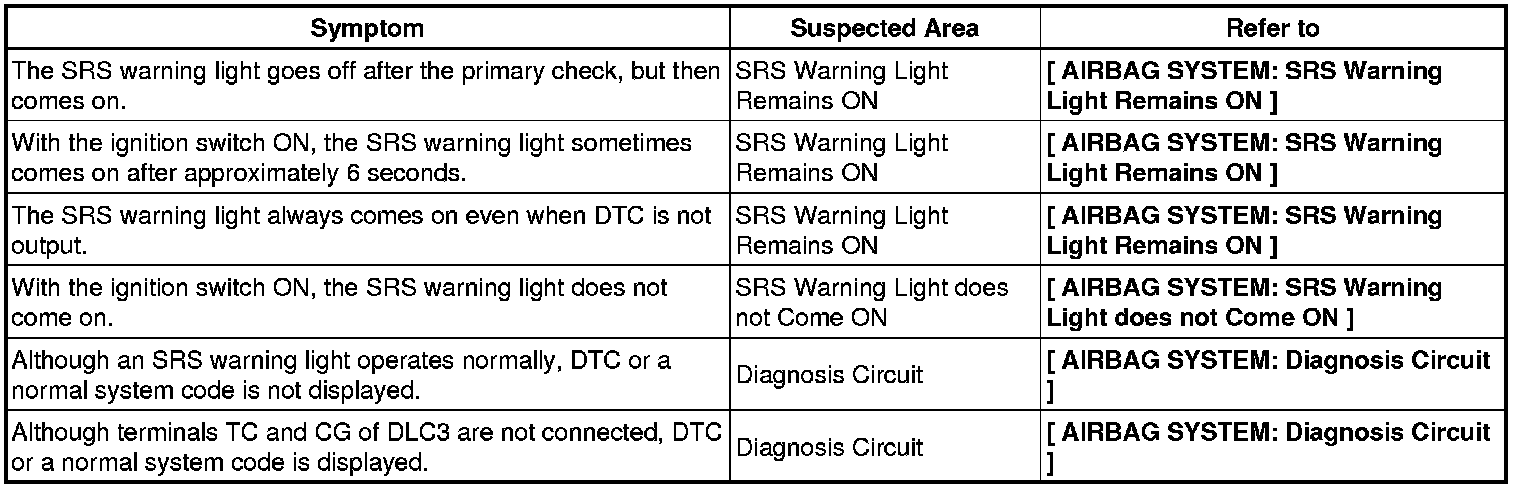

PROBLEM SYMPTOMS TABLE
HINT:
Proceed to the troubleshooting for each circuit in the table below.
Airbag system:
