Removal

AIR CONDITIONING: AIR CONDITIONING AMPLIFIER: REMOVAL

REMOVAL

1. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY





(a) Pull back the floor carpet.






(b) Disconnect the 2 connectors.
(c) Remove the screw.

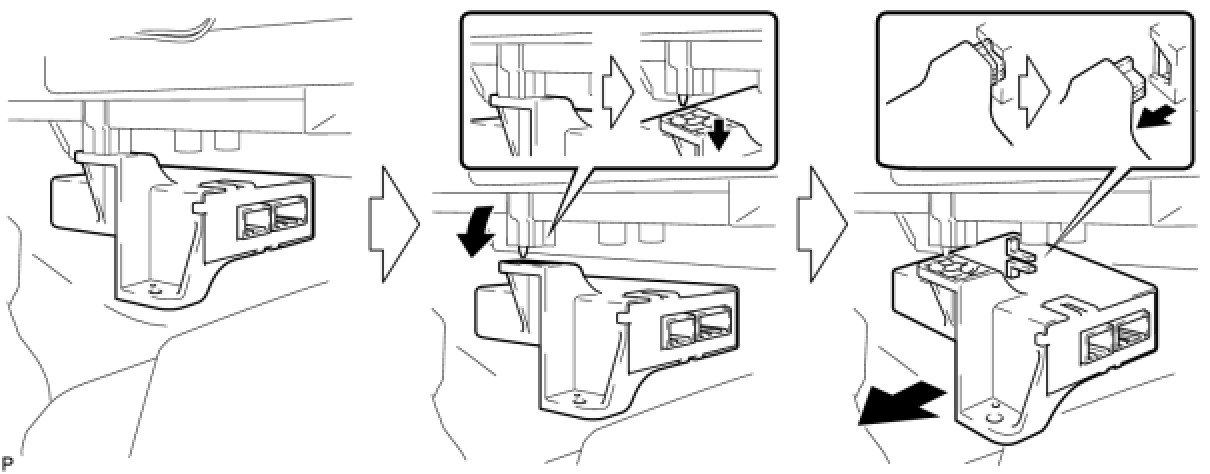

(d) Remove the air conditioning amplifier as shown in the illustration.
