Installation

AIR CONDITIONING: AIR CONDITIONING AMPLIFIER: INSTALLATION

INSTALLATION

1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY

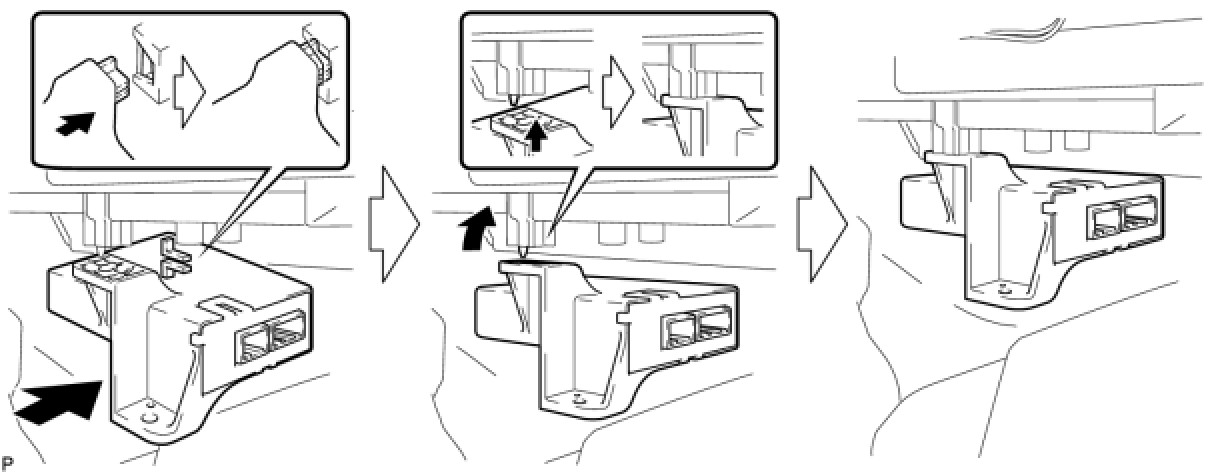

(a) Install the air conditioning amplifier as shown in the illustration.









(b) Install the screw.
(c) Connect the 2 connectors.

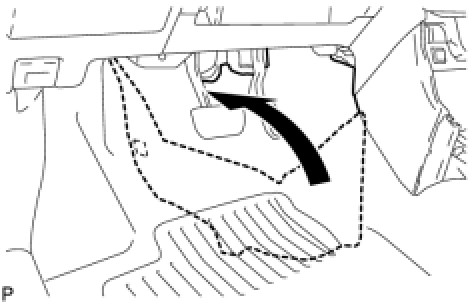

(d) Install the floor carpet.
