Air Fuel Ratio Sensor

2ZR-FE ENGINE CONTROL SYSTEM: AIR FUEL RATIO SENSOR: INSPECTION

INSPECTION





1. INSPECT AIR FUEL RATIO SENSOR
(a) Measure the resistance according to the value(s) in the table below.

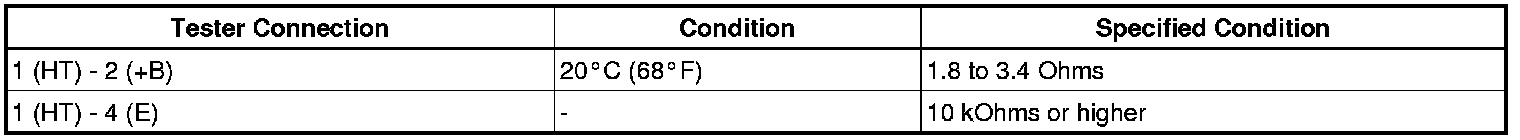

Standard resistance:





If the result is not as specified, replace the air fuel ratio sensor.
