Ignition System: Locations

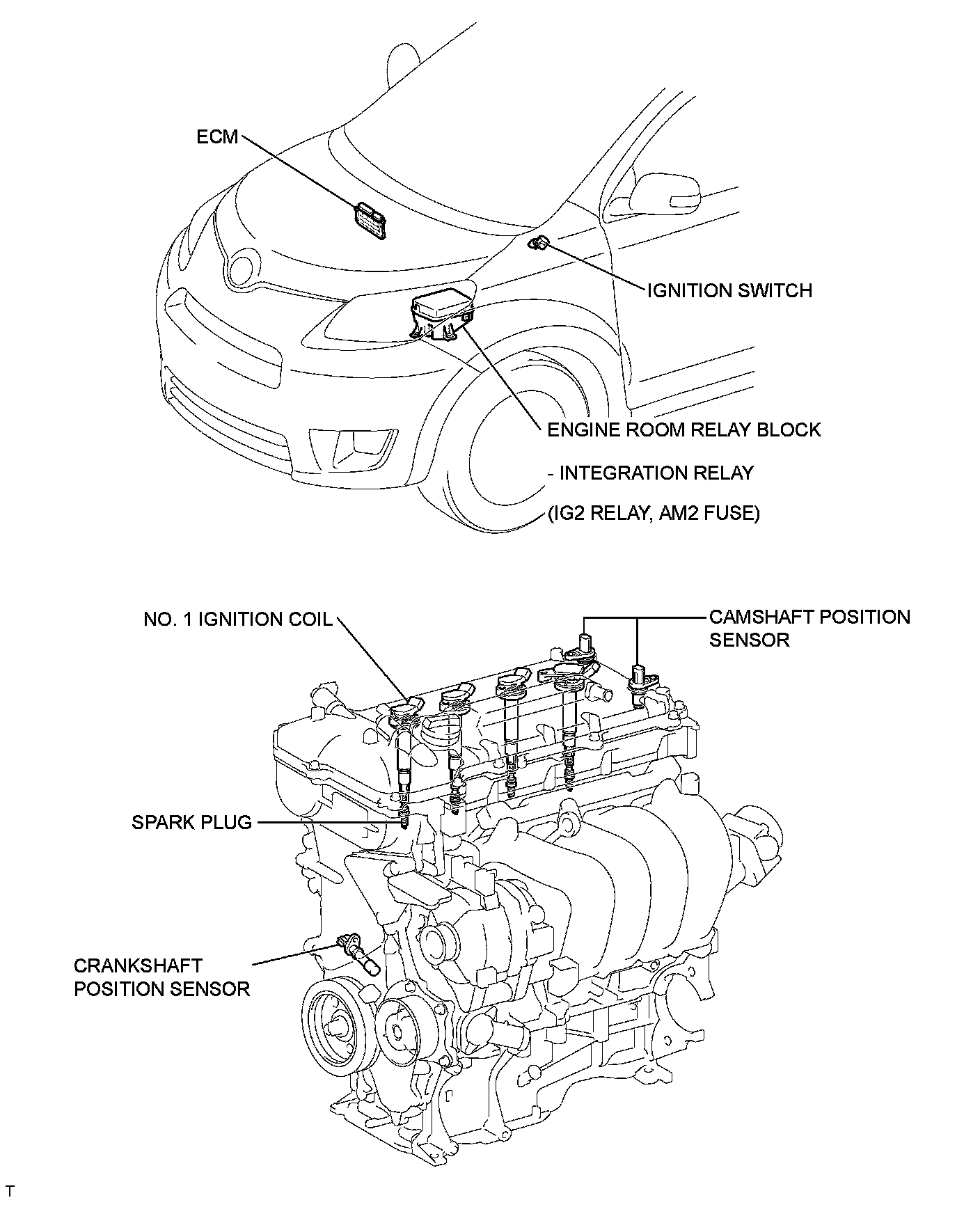

2ZR-FE IGNITION: IGNITION SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
