Removal

2ZR-FE FUEL: FUEL PRESSURE REGULATOR: REMOVAL

REMOVAL

1. DISCHARGE FUEL SYSTEM PRESSURE
Vehicle Damage Warnings
2. REMOVE FUEL PUMP
Refer to the procedures under "REMOVE FUEL PUMP" Removal.
3. REMOVE FUEL PRESSURE REGULATOR ASSEMBLY

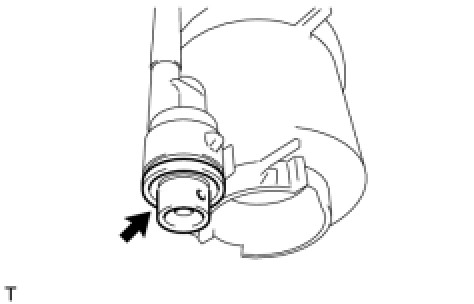

(a) Using a screwdriver with its tip wrapped in protective tape, remove the pressure regulator.

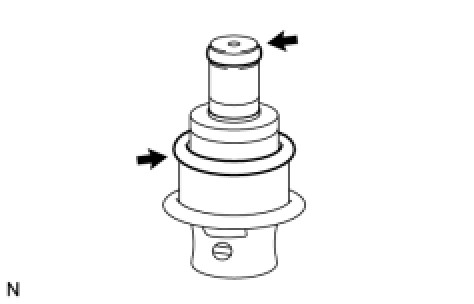

(b) Remove the 2 O-rings from the pressure regulator assembly.
