2ZR-FE EMISSION CONTROL: CANISTER: INSTALLATION

INSTALLATION

1. INSTALL CANISTER





(a) Install the canister with the 3 bolts.
Torque: 19 Nm (194 kgf-cm, 14 ft-lbf)

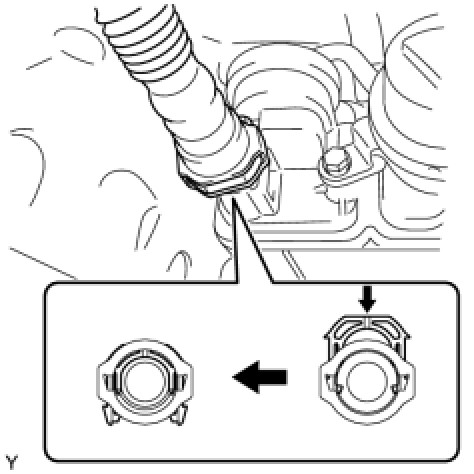

(b) Connect the air inlet line hose.






(c) Connect the connector.






(d) Connect the purge line hose.






(e) Connect the vent line hose.
