Canister Purge Solenoid: Testing and Inspection

2ZR-FE EMISSION CONTROL: PURGE VALVE: INSPECTION

INSPECTION

1. INSPECT DUTY VACUUM SWITCHING VALVE

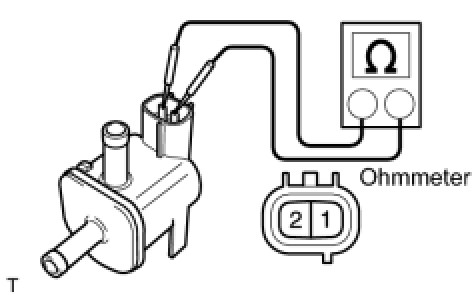

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, replace the duty vacuum switching valve.
(b) Check the operation.

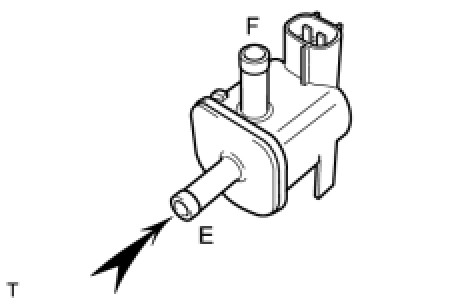

(1) Check that air does not flow from port E to F.

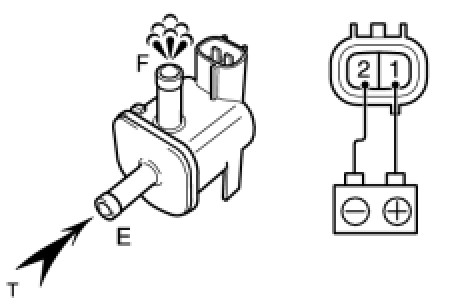

(2) Apply battery voltage across the terminals.
(3) Check that air flows from port E to F.
If the operation is not as specified, replace the duty vacuum switching valve.
